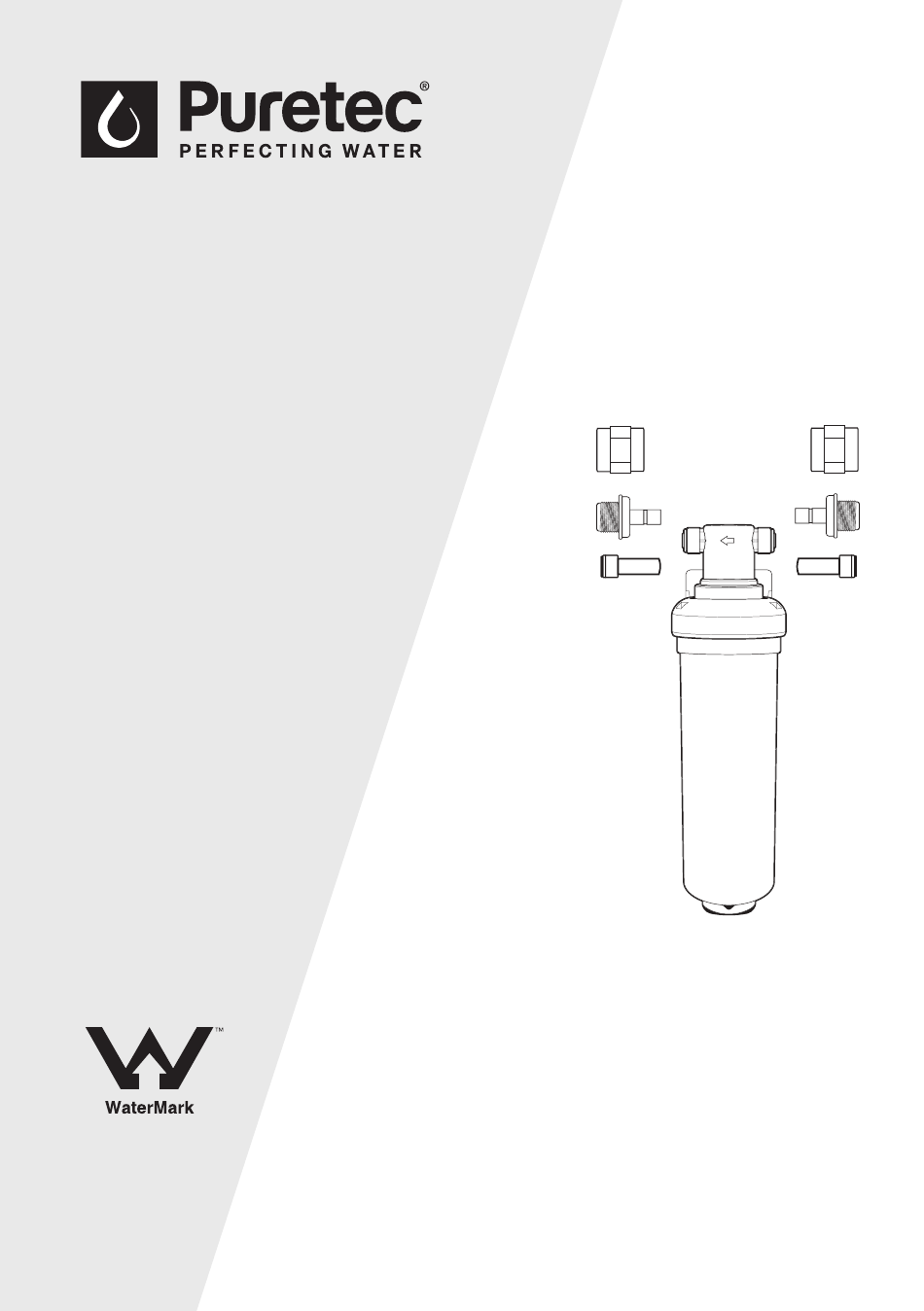

- Page 1 User Guide Z2-HFR AS/NZS 3497 Licence No. WM 74617 Pro-Switch High Flow Retrofit Kit for Undersink Water Filter Systems For correct operation & installation, it is essential to observe these instructions. NOV2022...
-
Page 2: Table Of Contents
Warranty ............................11 Puretec Customer Service Thank you for purchasing a Puretec High Flow Retrofit Water Filter System. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water, if maintained properly. -
Page 3: Cartridge Replacement
Cartridge Replacement The Z2-HFR system is designed to operate with mains, rain, harsh and rural water. Cartridge Replacement To maintain the high quality of the purified water the cartridges need changing every 6 - 12 months, dependent on water quality and usage. - Page 4 Allow extra free space around the system to avoid accidental impact. • Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1-2003, Clause 3.3.4) Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
-
Page 5: Mixer Tap Installation Procedure
Installation Procedure to An Existing Mixer System Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1-2003, Clause 3.3.4). Install the pressure limiting valve prior to the cold water line inlet on the filter system. Note: A range of fittings have been included to allow for connection to a variety of system setups. - Page 6 Allow extra free space around the system to avoid accidental impact. • Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1-2003, Clause 3.3.4) Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
-
Page 7: Filter Tap Installation Procedure
Installation Procedure Installation Procedure to An Existing Filter Tap System Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1-2003, Clause 3.3.4). Install the pressure limiting valve prior to the cold water line inlet on the filter system. 1. -
Page 8: Use Guidelines
O-Ring seal being damaged. Tube is secured in position. DISCONNECTION PROCEDURE Push collet against body and slide tube out of fitting. Installation & Operation Manual Copyright © Puretec Pty Ltd 2022... - Page 9 Fitting The Cartridge Correctly Figure 4 - Fitting The Cartridge Correctly Ensuring the cartridge is in the correct lock position is critical prior to operating the system. Not being seated in the correct position can cause the locking tabs to shear and damage the head and/or water leakage.
-
Page 10: Cartridge Changeout
2. Remove all packaging from the new cartridge, including any wraps or caps (if applicable). Replacement cartridge code for Z2-HFR model: Puretec Z2-R. 3. Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it. 4. Insert the new cartridge into the filter head and rotate clockwise 1/4 turn until the arrows on the head and cartridge align. -
Page 11: Warranty
Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
