Puretec CO-RO270 Series User Manual

Puretec CO-RO270 Series User Manual

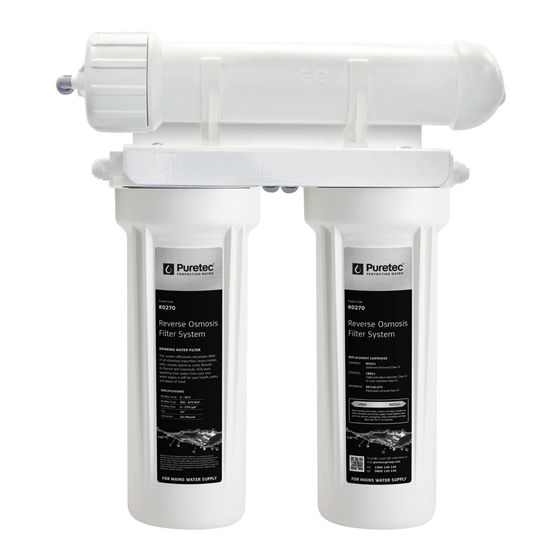

Reverse osmosis undersink water filter system

Advertisement

Quick Links

User Guide
CO-RO270 &
CO-RO270P Series
AS/NZS 3497
Licence No. WM 74617
Australian Certification Services
*Components
Reverse Osmosis Undersink Water Filter System
For correct operation & installation, it is essential to observe these instructions.
NOV2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO-RO270 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puretec CO-RO270 Series

  • Page 1 User Guide CO-RO270 & CO-RO270P Series AS/NZS 3497 Licence No. WM 74617 Australian Certification Services *Components Reverse Osmosis Undersink Water Filter System For correct operation & installation, it is essential to observe these instructions. NOV2021...
  • Page 2: Table Of Contents

    The system is designed for metropolitan supply water but can be used in other situations. For other types of water supply please contact your local Puretec stockist or call our Puretec Customer Service Help line prior to installing the tap.
  • Page 3: Introduction

    5 NTU Operation The Puretec RO series system is designed to run economically for many years, dependent on the initial installation and periodical maintenance. Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace cartridge.
  • Page 4: System Installation

    Installation Procedure Important Note: Do not cut the BLACK tube when installing this system. 1. Find a convenient location for the filter system under the sink taking into consideration ease of access and best use of cupboard space. Allow 30 mm clearance under the system for cartridge Installation & Operation Manual Copyright © Puretec Ltd 2021...
  • Page 5: Installation Procedure

    18 - 24 months, depending on incoming water quality. For best performance use only genuine Puretec replacement cartridges and cartridges that are suitable for this system. NOTE: When removing the membrane from the packaging, only remove the outer shrinkwrap packaging, DO NOT remove any other packaging from the membrane.
  • Page 6: Parts Diagram

    Parts Diagram Figure 1 - Parts Diagram PURE WATER Parts 19 & 20 only included in CO-RO270P models. MAINS WATER Installation & Operation Manual Copyright © Puretec Ltd 2021...
  • Page 7 Component Codes Component Codes CODE DESCRIPTION KTU4G GREEN FLEXIBLE TUBING PX051 SEDIMENT REMOVAL FILTER CB101 CHEMICAL REMOVAL FILTER RA-HM MEMBRANE HOUSING RA-CL4 DRAIN CLAMP TANK BALL VALVE (INCLUDED IN TANK MODELS KSOVE44N ONLY) CO-T4.2 CO-RO270 MODEL - 16L STORAGE TANK CO-RO270P MODEL - NOT INCLUDED CO-T4.2 CO-RO270P-16 MODEL - 16L STORAGE TANK CO-T10 CO-RO270P-37 MODEL - 37L STORAGE TANK CO-T20 CO-RO270P-75 MODEL - 75L STORAGE TANK RA-VSOC SHUT OFF VALVE FP10M FILTER HOUSING X 2 RO SYSTEM STAND FRAME RET1812-75 REVERSE OSMOSIS MEMBRANE IL146 INLINE MINERALISER FILTER CARTRIDGE KTU4BL...
  • Page 8: Quick Connect Fittings

    NOTE: When removing the membrane from the packaging, only remove the outer shrinkwrap packaging, DO NOT remove any other packaging from the membrane. Restore water supply & check for leaks, rectifying them before leaving the unit. Installation & Operation Manual Copyright © Puretec Ltd 2021...
  • Page 9: Use Guidelines

    Use Guidelines Use Guidelines • Operating pressure 300 - 520 kPa. • Ideal tank pressure when empty 34 - 48 kPa (5 - 7 psi). • Operating temperature 0 - 30 °C (protect from freezing). • Maximum flow 270 litres per day. • This system must be installed according to local plumbing codes by a licensed plumber on the cold water line - mains only.
  • Page 10: Warranty

    Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred.
  • Page 11 Warranty This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.

This manual is also suitable for:

Co-ro270p series
