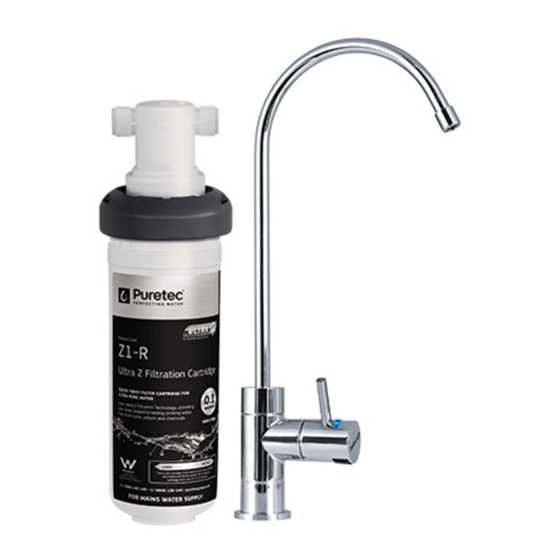

Quick twist undersink water filter system
Hide thumbs Also See for Z18:

Advertisement

Quick Links

User Guide
Z12 / Z18
AS/NZS 3497
Licence No. WM 74726
Australian Certification
Quick Twist Undersink Water Filter System
Services
For correct operation & installation it is essential to observe these instructions.
JUNE2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Puretec Z18

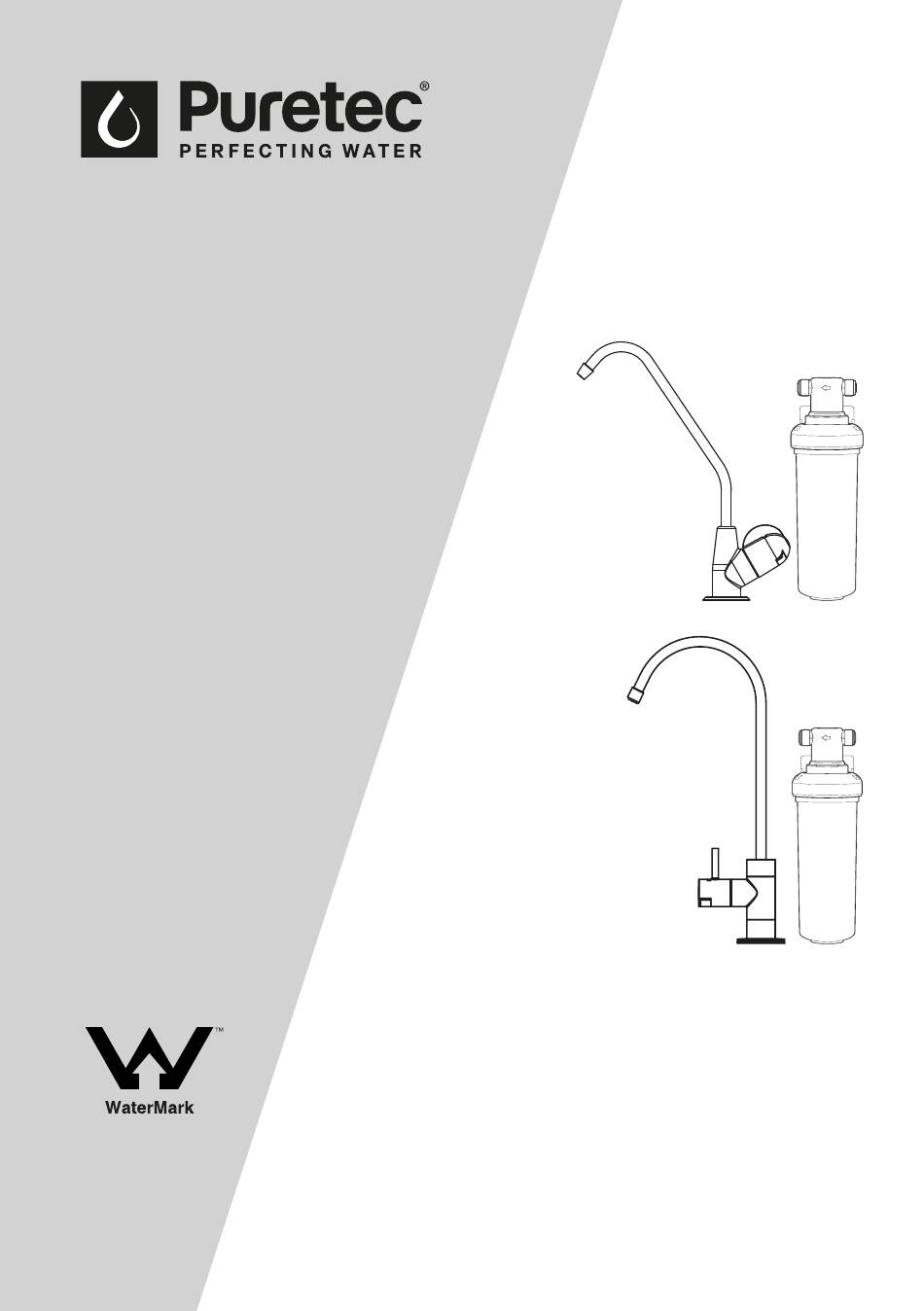

  • Page 1 User Guide Z12 / Z18 AS/NZS 3497 Licence No. WM 74726 Australian Certification Quick Twist Undersink Water Filter System Services For correct operation & installation it is essential to observe these instructions. JUNE2019...
  • Page 2: Table Of Contents

    Puretec Customer Service Thank you for purchasing a Puretec Quick Twist Undersink Water Filter System. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly.
  • Page 3: Operation

    Operation The Puretec Z12 & Z18 systems are designed to run economically for many years dependent on the initial installation and periodical maintenance. Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace cartridge.
  • Page 4 To install the faucet follow the instructions for your model below. Z18 Faucet: To install the faucet, connect spout to the base of the faucet, ensuring that the white circlip is flush with the groove on the spout. Push down on the spout cap until it clicks, then tighten by hand.
  • Page 5: Cartridge Changeout

    Installation Guide Cartridge Installation/Changeout Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it. Remove all packaging from the new cartridge, including any wraps or caps (if applicable). Replacement cartridge Z1-R 3. Insert the new cartridge into the filter head and rotate clockwise 1/4 turn. 4.
  • Page 6: Z12 / Z18 Assembly

    Z12 / Z18 Assembly Figure 1 DESCRIPTION Smart Tee™ ½"M x ½"F x ¼"T White Tubing MultiValve Z1-R Filter Cartridge Mounting Bracket Tube, Nut and Olive Tube Insert Faucet Lock Nut and Washer Black Plastic Washer Black Rubber Washer Escutcheon Plate...
  • Page 7: Z12 / Z18 Faucet Connections

    Z12 / Z18 Faucet Connections Figure 3 Note: Filter faucet may vary depending on system purchased. Faucet Display Battery Seat Circuit Board Battery (CR2032) Large Rubber Washer Chrome Plated Metal Flange Counter Top ø12.5 Hole Plastic Washer Lock Washer Locking Nut...
  • Page 8: Z12 / Z18 Performance Data

    Z12 / Z18 Performance Data Performance Data Average Average Average Max Effluent Min Percent Substance Guidelines* Influent Effluent Percent Concentration Removal Concentration Concentration Removal NSF Standard 42 Drinking Water Treatment Units Chlorine 5 - Health 0.25 >94% (23,000 L) 0.6 - Aesthetic...
  • Page 9: Warranty

    Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market.
  • Page 10 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
  • Page 11 This page was intentionally left blank. Quick Twist Undersink Water Filter System with LED Faucet...
