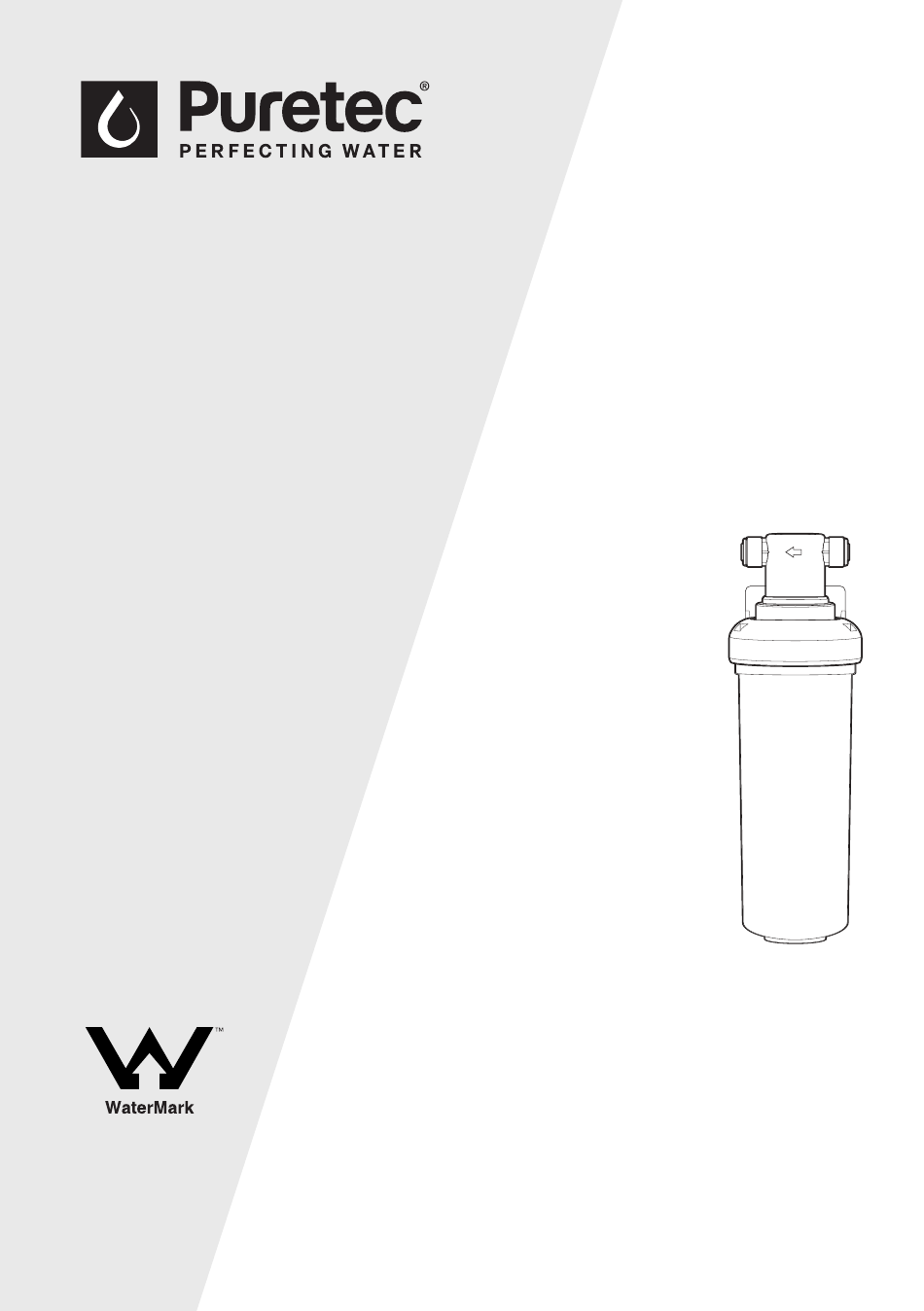

- Page 1 User Guide Z1-MW-K AS/NZS 3497 Licence No. WM 74726 Australian Certification Quick Twist Undersink Water Filter Kit Services For correct operation & installation, it is essential to observe these instructions. MAR2020...
- Page 2 Warranty ...............................9 Puretec Customer Service Thank you for purchasing a Puretec Quick Twist Undersink Water Filter System. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly.
- Page 3 Install filter cartridge by positioning it in the desired location, marking the position of fixing hole and fixing with bracket screw. The Z1-MW-K system can be mounted horizontally or vertically. Allow room for the connecting tubes. Ensure flow arrow on the head is in direction of water flow.
- Page 4 Be sure to change the filter cartridge at least every 23,000 litres or 6 - 12 months which ever occurs first; or whenever you detect a change in taste, odour, or decrease in flow. Installation & Operation Manual Copyright © Puretec Ltd 2020...
- Page 5 Assembly Figure 1 DESCRIPTION Smart Tee™ ½"M x ½"F x ¼"T White Tubing MultiValve Z1-R Filter Cartridge Mounting Bracket 3-Way Mixer or Filter Faucet (sold separately) Figure 2 HOW TO USE QUICK CONNECT FITTINGS Fitting grips before it seals. Ensure Cut the tube square and push in to tube is pushed in to tube stop.
- Page 6 DISCONNECTION PROCEDURE 5. Turn the quick connect nut on the SmartTee™ 6. Push the collet against the quick connect nut and slide anticlockwise to release the collet. tube out of fitting. Installation & Operation Manual Copyright © Puretec Ltd 2020...
- Page 7 Performance Data Performance Data Average Average Average Max Effluent Min Percent Substance Guidelines* Influent Effluent Percent Concentration Removal Concentration Concentration Removal NSF Standard 42 Drinking Water Treatment Units Chlorine 5 - Health 0.25 >94% (23,000 L) 0.6 - Aesthetic Standard 53 Cyst Live Cryptosporidium POU/POE Cyst <1 100,000...
- Page 8 Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market.
- Page 9 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
- Page 10 This page was intentionally left blank. 10 Installation & Operation Manual Copyright © Puretec Ltd 2020...
- Page 11 This page was intentionally left blank. Quick Twist Undersink Water Filter Kit...
