1. Turbo Pix Introduction

Specially developed by RADILINK team, Turbo Pix keeps the complete PIXHAWK functions but resolves its
Alt-Hold uncontrollability problem at high speed. With the software optimization, Turbo Pix achieves better
vibration damping and diminishes the posture deviation. Combination of Inertial navigation and barometer
decreases airflow influences and ensures better stability even when speed up. With the dimension of
39*39*12mm and the weight of 27g including cables, Turbo Pix lightens the whole weight of the aircraft and
diminishes battery consumption, allowing longer flight time. The 8- channel output fits all models including
fixed-wing/helicopter/car/boat/3-8 copters. Turbo Pix can carry 6 pcs SUI04 ( ultrasonic ranging sensor
transceiver) to realize horizontally and vertically overall obstacle avoidance including
forward/backward/left/right/upward/downward (Alt-Hold). Real-time detective and sensitive to the surrounding
avoids the possible collisions during high speed flight.
Note Turbo Pix V1.1 can ONLY flash firmwares from RadioLink
Mission Planner http://www.radiolink.com.cn/firmware/MissionPlanner/MissionPlanner-latest.exe. But not that
from official Mission Planner.

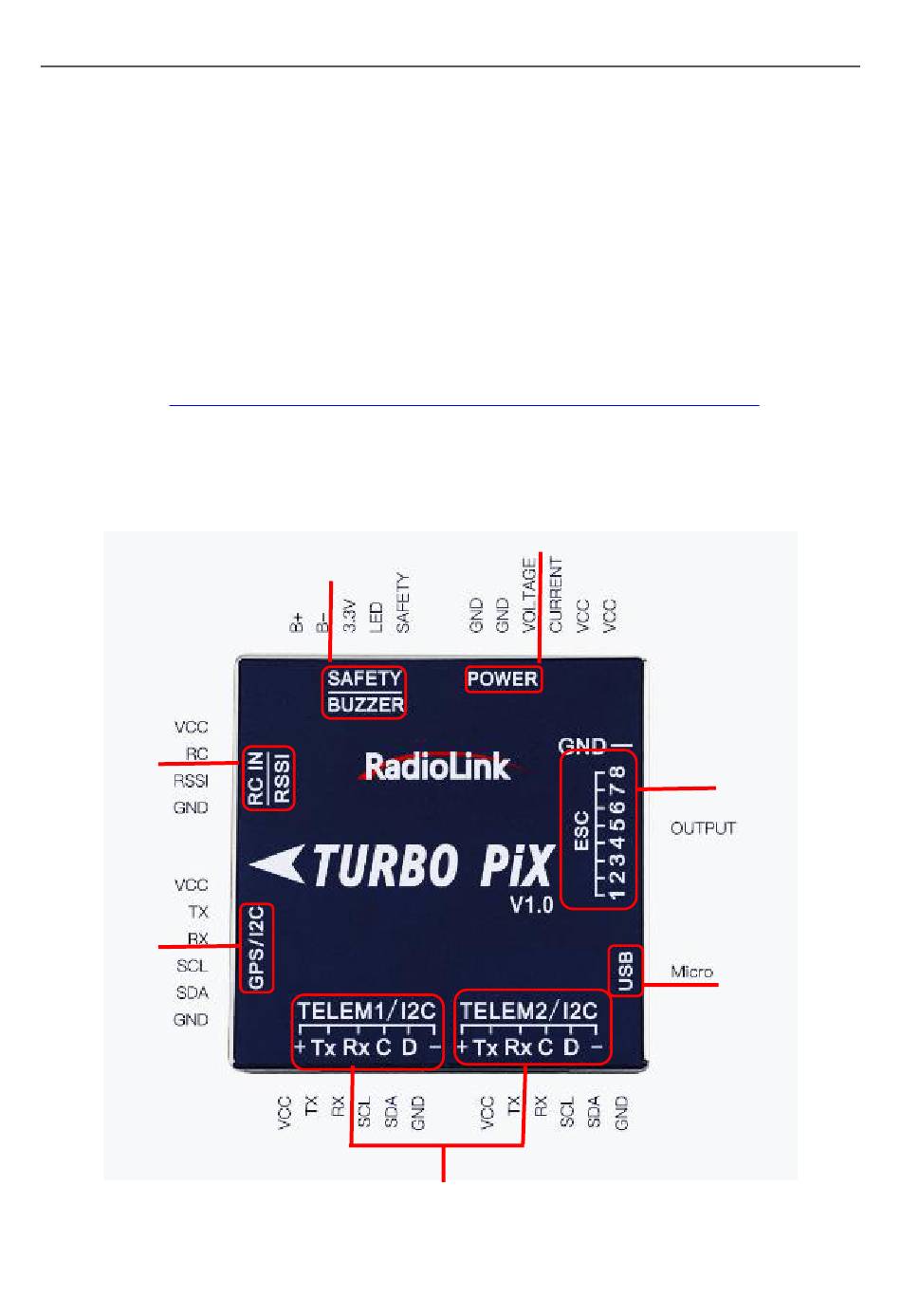

1.1 Connectors

Connect to RX
Connect to GPS /
Ultrasonic
Sensor
/Expansion
Board
Connect to
Buzzer &Safety
Button
Connect to data
transmission/ OSD
Module/PRM-03
Connect Power Module
1
Radiolink Electronic Ltd
www.radiolink.com
Connect to Motors
Connect to PC
for parameter
setting
