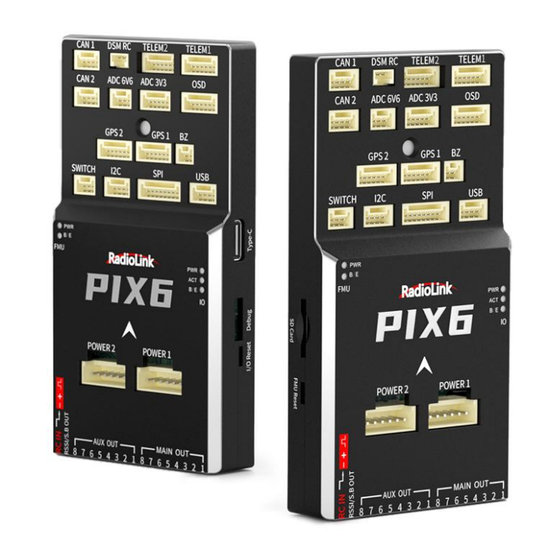

PIX6
Quick Start Guide
Thank you for choosing RadioLink product. This
product is not
a
toy
and
is
not
suitable
for children under the age of 14 . Adults should keep
the
product
out
of
the
reach
of
children
and exercise caution when operating this product in
the presence of children.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RadioLink PIX6
Summary of Contents for RadioLink PIX6
- Page 1 PIX6 Quick Start Guide Thank you for choosing RadioLink product. This product is not suitable for children under the age of 14 . Adults should keep product reach children and exercise caution when operating this product in the presence of children.
- Page 2 Note: In order to fully know about the usage of PIX6 and ensure flight safety, please download the detailed instruction manual from https://www.radiolink.com/pix6_manual Read carefully and set the device as instructed. If there is any question, please send messages/ leave...
- Page 3 PIX6 Connectors...
- Page 4 Connection Diagram of PIX6...
- Page 5 Packing List...
- Page 6 Specifications Main Processor Hardware STM32F765VIT6 Co-processor STM32F100 Gyro & Accelerometer Sensor BMI088，ICM-42688 E-compass IST8310 Barometer SPL06 RAM Memory 512KB Flash Memory FRAM 32KB, FM25V02A 16 Channels Output(Main Outputs:8 channel; Auxiliary Connector Channel Output Outputs: 8 channel） POWER1,2 Port: HY-6P; DSM RC Port: XH1.25-3P; Connector Debug Port: 1.0-8P;...
- Page 7 Specifications FMU Reset Debug Port I/O Reset Button Signal (RC In) PPM/SBUS Video Transmission HD Digital and Analog Video Transmission Supported RSSI Signal Input PWM/3.3V RSSI Signal Output Support OneShot/DShot Support OSD Module Support, OSD Module Integrated ESC Protocol PWM/OneShot/DShot Neopix Led Connection Support Support...
