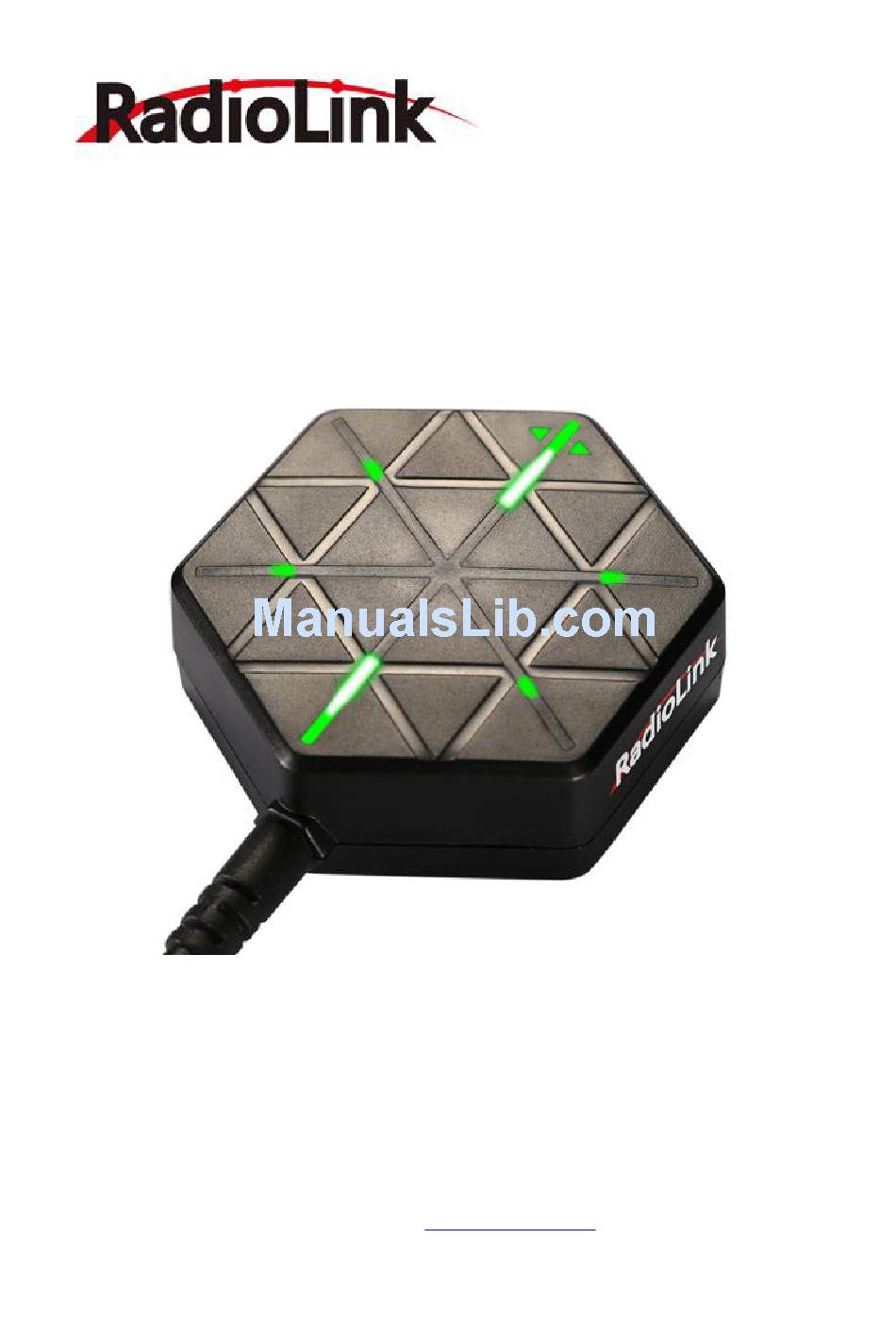

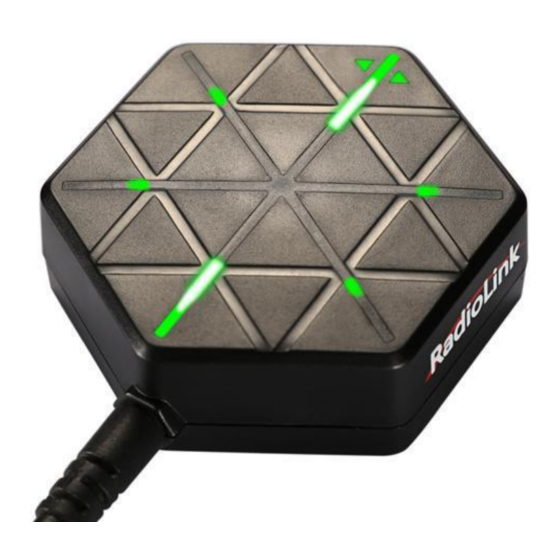

- Page 1 SE100 (M8N GPS) USER MANUAL Radiolink M8N GPS SE100 RADIOLINK ELETRONIC LIMITED More details: www.radiolink.com...
-
Page 2: Table Of Contents
CONTENTS Introduction...................................1 Be Suitable for Flight Controller..........................2 Radiolink M8N GPS SE100 Configuration......................2 Performance...................................2 Positioning Indicate..............................3 Definition of Connector..............................3 Direction Indicate.................................4 Parameter..................................4... -
Page 3: Introduction
It is recommended to have your Radiolink equipment serviced annually during your hobby’ s“off season” to ensure safe operation. Please be sure to regularly visit the Service and Support website at www.radiolink.com. This page includes extensive programming, use, set up and safety information. -
Page 4: Be Suitable For Flight Controller
Power amplify IC: MMIC BGA715L7 from Infineon Double Filter: SAWF(Surface acoustic wave filter) form Murata Performance Radiolink M8N GPS, benefits from 13 years of professional wireless experiences of Radiolink engineers, exceed the limitation of IC sensitivity index from circuit schematic design to PCB placement. -
Page 5: Positioning Indicate
50 centimeter position accuracy. Positioning 20 satellites in 6 seconds at open ground. Valley station-keeping ability. Appearance patent. Positioning Indicate Humanized positioning green LED indicate. Definition of Connector Connect to GPS: White wire-RX; Orange wire-TX; Red wire-VCC; Black wire-GND; Green wire-CLK; yellow wire-SDA Connect to PIX: Red wire-VCC;... -
Page 6: Direction Indicate
Direction Indicate Arrows shows the front, point to the same direction as the flight controller. Parameter 1) Positional Accuracy: 50 centimeter precision when working with concurrent GNSS, 2.5m precision when working with single GNSS. 2) Velocity precision: 0.1m/s 3) Max height: 50000m 4) Max speed: 515m/s 5) Max acceleration: 4G 6) Max update rate: up to 18Hz...
