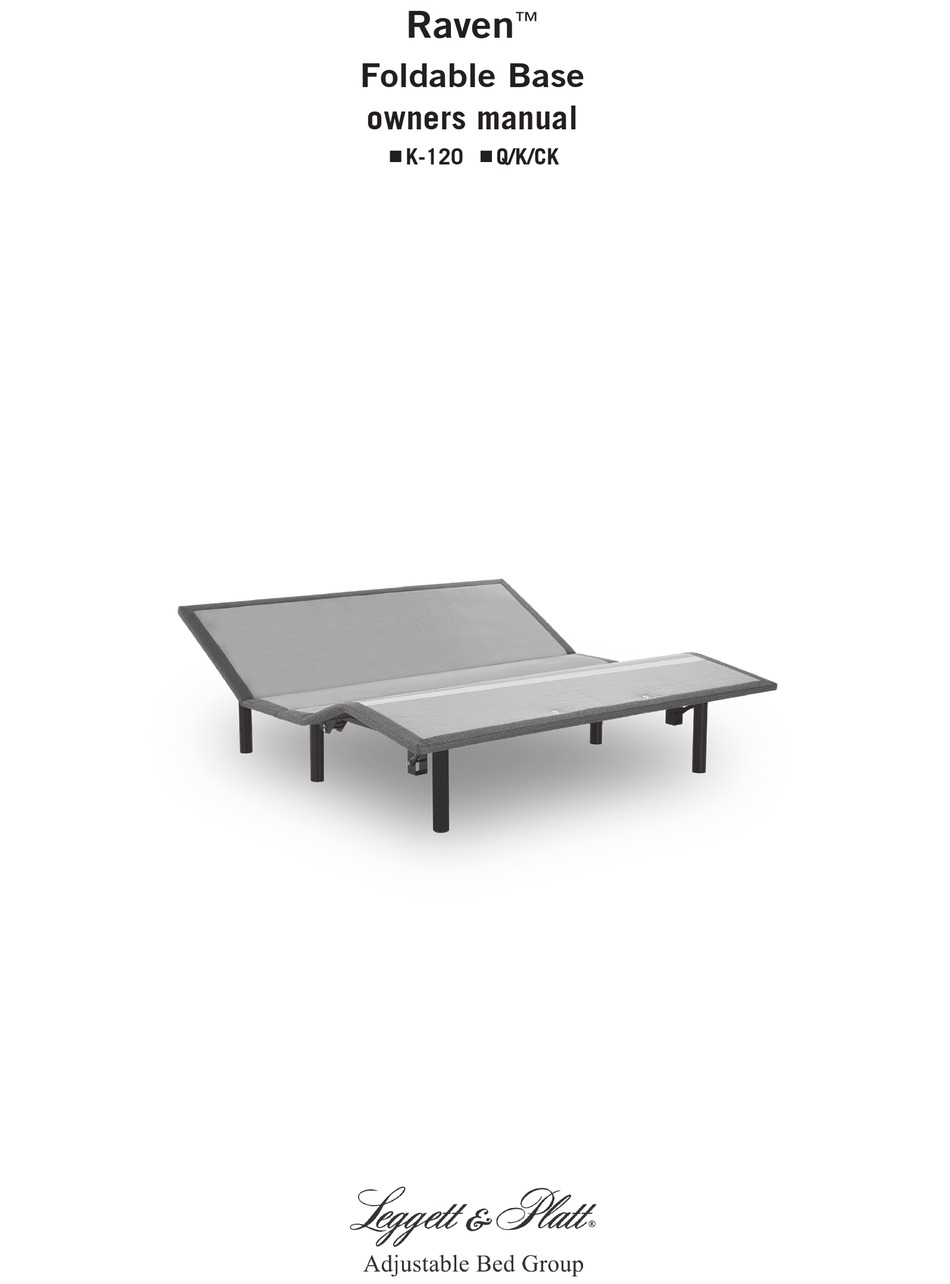

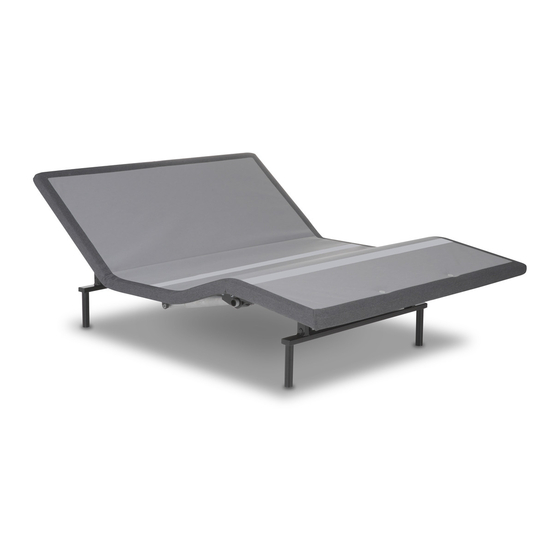

  • Page 1 Raven ™ Foldable Base owners manual K-120 Q/K/CK...

  • Page 2: Table Of Contents

    CONTENTS Advisory ........................3 Assembly ........................5 Remote Control Function .................... 10 Remote Control Programming ..................11 Troubleshooting ......................12 Accessories ....................... 13 Warranty ........................14 READ ALL INSTRUCTIONS BEFORE USING If adjustable base does not operate or if parts are missing, call: 1-800-888-3078...

  • Page 3: Advisory

    ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT LOCATION ENVIRONMENT WARNING The level of sound experienced during operation is directly related to the location environment. For FOR OPTIMUM ADJUSTABLE BASE example, when a base is located on a hardwood floor OPERATION, USE A GROUNDED, ELECTRICAL with the massage feature in operation, a vibrating SURGE PROTECTION DEVICE (NOT...
  • Page 4 ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT PACEMAKER WARNING FCC COMPLIANCE This product produces a vibrating sensation. The equipment has been tested and found to It is possible that individuals with heart-assist comply with the limits for a Class B digital device, pacemakers may experience a sensation similar to pursuant to Part 15 of the FCC Rules.

  • Page 5: Assembly

    ASSEMBLY STEP 1 Place adjustable base shipping container on solid, level surface. Remove top section of shipping container. Remove packing material. Carefully, lift adjustable base out of bottom section of shipping container and place on clean surface. Note: Allow for enough space to unfold base in setup area.
  • Page 6 ASSEMBLY STEP 2 Align lower holes at hinge. On each side of base, insert bolt through hole (in opposite direction of existing bolt) (FIGURE 1). FIGURE 1 EXISTING BOLT LINE UP HOLES IN HINGE BOLT – INSERT IN OPPOSITE DIRECTION TO EXISTING BOLT STEP 3 Insert captive pins into bolts to secure bolts (FIGURE 2).
  • Page 7 ASSEMBLY STEP 4 Install (4) legs into the tapped fittings at the four corners of the base frame (FIGURE 3). Install (2) legs at the hinge area (FIGURE 4). Note: Install the (2) legs at the hinge in diagonal position across the center fold of base (FIGURE 4).
  • Page 8 ASSEMBLY STEP 5 WARNING Plug electrical power cord into power brick. Plug brick power cord into base motor cable. Secure POWER CORDS MUST NOT INTERFERE WITH connection using cable latch (FIGURE 5). Note: Align ANY ADJUSTABLE BASE MECHANISMS. pins before inserting plugs. DO NOT WEAVE CORDS THROUGH BASE Plug electrical power cord into power outlet.
  • Page 9 ASSEMBLY MATTRESS RETAINER INSTALLATION (OPTIONAL) Base is equipped with a Micro-Hook™ system to captivate the mattress as shown in FIGURE 6, but a mattress retainer can also be used. Important: If using a dust ruffle or mattress encasement with this product, a mattress retainer must be used FIGURE 6 Micro-Hook™...

  • Page 10: Remote Control Function

    REMOTE CONTROL FUNCTION HEAD UP BUTTON HEAD DOWN BUTTON Press and hold to raise the Press and hold to lower the head section. head section. HEAD/FOOT DOWN BUTTON HEAD/FOOT UP BUTTON Press and hold to lower the head Press and hold to raise the head and foot sections simultaneously.

  • Page 11: Remote Control Programming

    REMOTE CONTROL PROGRAMMING - 1 REMOTE TO OPERATE 1 BASE STEP 1 Plug base into power outlet. STEP 2 Simultaneously press and hold both the HEAD DOWN and FOOT UP buttons on the remote control (FIGURE 8). While holding these buttons, press and hold the LEARN button on the control box (FIGURE 9) or the PAIR button on the in-line switch (FIGURE FIGURE 10...

  • Page 12: Troubleshooting

    TROUBLESHOOTING If the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMPTOM • Verify power cord is plugged into a working, grounded electrical outlet. A grounded, electrical surge protection device is recommended. Test outlet by plugging in another working appliance.

  • Page 13: Accessories

    ACCESSORIES Contact customer service toll free (800-888-3078) to order accessories listed below. ACCESSORY DESCRIPTION CODE IMAGE Headboard Brackets 4B9245...

  • Page 14: Warranty

    1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY In this warranty: “Adjustable base” means the adjustable bed foundation sold by L&P to the dealer. The “adjustable base” does not include the mattress. “L&P” means Leggett & Platt, Incorporated. “Purchaser” and “You” both mean the consumer who is the original purchaser of this adjustable base made by L&P.
  • Page 15 1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Repair or replacement shall be the sole remedy of the L&P makes no other warranty whatever, express or Purchaser. There shall be no liability on the part of L&P implied, and all implied warranties of merchantability and for any special, indirect, incidental, or consequential fitness for a particular purpose are disclaimed by L&P and damages or for any other damage, claim, or loss not...
  • Page 16 290-0105 EDR14642 4/18 NATIONWIDE CUSTOMER SERVICE (800) 888-3078 toll free: © 2018 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated...
