Summary of Contents for Leggett & Platt brio 20

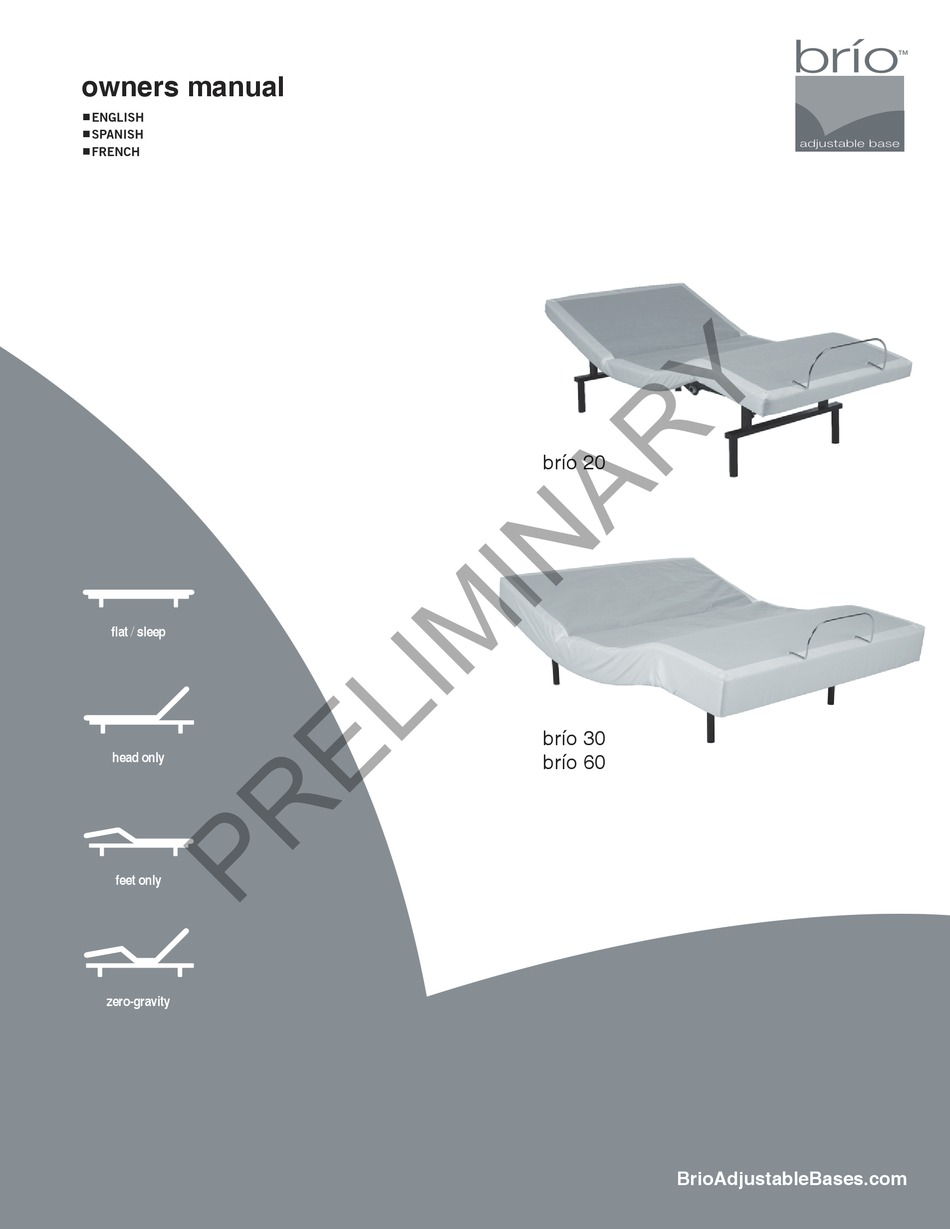

- Page 1 owners manual ENGLISH SPANISH FRENCH brío 20 flat / sleep brío 30 head only brío 60 feet only zero-gravity BrioAdjustableBases.com...
-
Page 3: Table Of Contents
contents Advisory ........................4 Acoustics ........................6 Installation ......................... 7 brío 20 & 30 Remote Control Function ................ 11 brío 60 Remote Control Function ................12 Troubleshooting ......................13 Accessories ....................... 15 If adjustable base does not operate or if parts are missing, call: 800-888-3078 Do not contact retail store or dealer. -
Page 4: Advisory
advisory important information READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT Product ratings The base lift motors are not designed for continuous use. Reliable operation and full life expectancy will be realized as long as the FOR OPTIMUM ADjUSTABLE BASE lift motor operation does not exceed five (5) OPERATION, USE A GROUNDED, ELECTRICAL minutes over a forty-five (45) minute period, or... - Page 5 advisory important information READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT small cHildren / Pets warning fcc comPliance After the base is unboxed, immediately dispose The equipment has been tested and found to of packaging material as it can smother small comply with the limits for a Class B digital children and pets.
-
Page 6: Acoustics
acoustics lifting/lowering mecHanisms location environment The lift/lower feature will emit a minimal The level of sound experienced during humming sound during operation. This is operation is directly related to the location normal. environment. For example, when a base is located on a hardwood floor with the massage During operation, the lift arm wheels make feature in operation, a vibrating tone will be contact with the platform support of the base. -
Page 7: Installation
installation For installation and setup, complete the following procedures, in the order indicated below and on the following pages: steP 1 Before discarding any packing materials, open the adjustable base shipping carton and verify the following items are included: • (1) Mattress Retainer •... - Page 8 installation steP 2 Carefully lift the adjustable base frame from the WARNING shipping carton, keeping the unit top-side-down. steP 3 Install (4) legs into the base frame. Simply screw each AT LEAST TWO PEOPLE ARE RECOMMENDED FOR HANDLING AND leg into a tapped hole at each corner of the base frame MOvING ADjUSTABLE BASE.
- Page 9 installation steP 6 Plug electrical power cord into a working, grounded electrical outlet. Note: an electrical surge protection device is recommended (not included). steP 7 If remote control is non-wired type, install batteries in remote control (wired remote controls do not require batteries) (FIGURES 2 thru 5). Briefly activate all functions of the base with the remote control to verify all features are in working order.
- Page 10 installation steP 8 Return base to the level position. steP 9 Install mattress retainer at the foot end of the base as follows: a. Locate grommeted holes at foot of base (FIGURE 6). b. Place mattress retainer ends into grommeted holes in top surface of adjustable base (FIGURE 6).
-
Page 11: Brío 20 & 30 Remote Control Function
brío 20 & 30 remote control function foot uP button Press and hold to raise the foot section. transmission indicator ligHt Verifies a button is being pressed and data is being sent to the base. Head/foot uP button Press and hold to raise the head and foot sections simultaneously. -
Page 12: Brío 60 Remote Control Function
brío 60 remote control function transmission indicator ligHt Verifies a button is being pressed and data is being sent to the base. Head massage uP button foot massage uP button Press to turn the head massager Press to turn the foot massager on at low intensity. -
Page 13: Troubleshooting
troublesHooting (wireless Base) In the event the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: solution symPtom • Verify power cord is plugged into a working, Remote control illuminates and appears to be grounded electrical outlet. - Page 14 troublesHooting (wired Base) In the event the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below. For additional assistance call 800-888-3078. solution symPtom • Verify power cord is plugged into a working, grounded electrical outlet.
-
Page 15: Accessories
accessories oPtional equiPment brío™ Contact customer service toll free (800-888-3078) to order the accessories indicated in the chart below. ACCESSORY DESCRIPTION CODE IMAGE 4B5431 Wired Remote Control Cable - Dual DC Motor Head Board Brackets-TXL 4B6117 4B6118 Head Board Brackets-FXL/Q Push-in Locking Casters 4B1806 (set of 4) - Page 16 99301358-b EDR122XX 5/13 NATIONWIDE CUSTOMER SERVICE (800) 888-3078 toll free: © 2013 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated BrioAdjustableBases.com...
