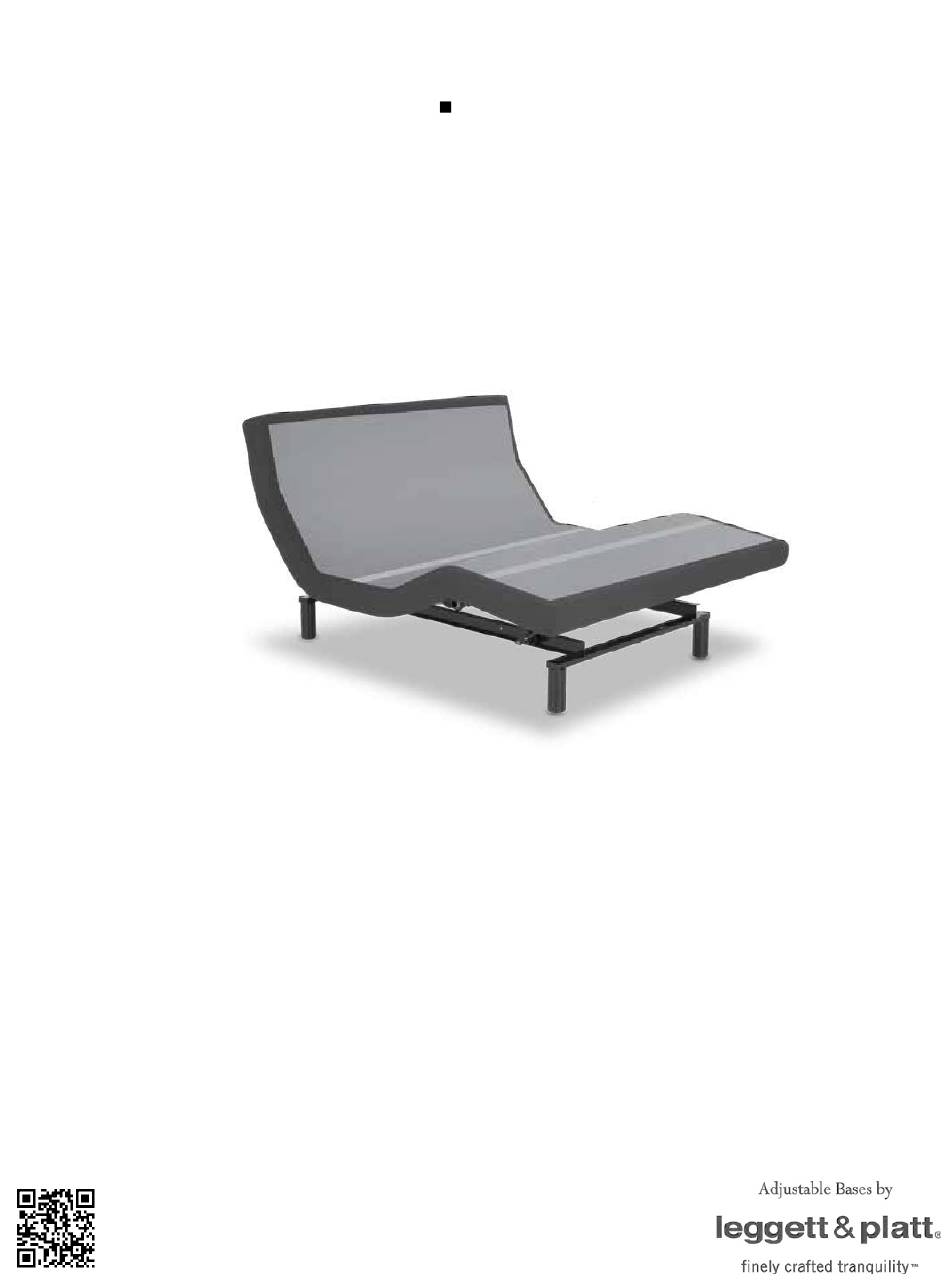

- Page 1 S-cape 2.0 - PT ® owners manual G-122 LPAdjustableBases.com...
-
Page 2: Table Of Contents
CONTENTS Advisory ........................4 Assembly ........................6 Remote Control Function .................... 10 Remote Control Programming ..................11 Power Down Operation ....................14 Troubleshooting ......................16 Accessories ....................... 17 Warranty ........................18 READ ALL INSTRUCTIONS BEFORE USING If adjustable base does not operate or if parts are missing, call: 1-800-888-3078... -
Page 3: Advisory
ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT P RODUCT RATINGS WARNING The base lift motors are not designed for continuous use. Reliable operation and full life expectancy will FOR OPTIMUM ADJUSTABLE BASE be realized as long as the lift motors do not operate OPERATION, USE A GROUNDED, ELECTRICAL any more than two (2) minutes over a twenty (20) SURGE PROTECTION DEVICE (NOT... - Page 4 ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT SMALL CHILDREN / P ETS WARNING FCC COMP LIANCE After the base is unboxed, immediately dispose of The equipment has been tested and found to packaging material as it can smother small children comply with the limits for a Class B digital device, and pets.
-
Page 5: Assembly
ASSEMBLY To assemble adjustable base, complete the following procedure: STEP 1 Open the base shipping carton and verify the following items are included: WARRANTY (batteries not included) ACTIVATION CARD OWNERS MANUAL QUICK SETUP GUIDE REMOTE CONTROL MATTRESS RETAINER POWER DOWN DEVICE (2) 9 volt batteries not included (4 pieces) 2-AAA BATTERIES... - Page 6 ASSEMBLY STEP 2 Extend the main power cord out head end of base. Set the hardware box aside. Cut the zip-tie and remove the mattress retainer. WARNING POWER CORDS MUST NOT INTERFERE WITH ANY ADJUSTABLE BASE MECHANISMS. DO NOT WEAVE CORDS THROUGH BASE STRUCTURE.
- Page 7 ASSEMBLY STEP 5 Remove remaining packaging and any protective film. STEP 6 Plug the base into an electrical power source. Note: An electrical surge protection device is recommended, but not included. STEP 7 Install 2-AAA batteries in the remote control (FIGURE 2). Operate remote control to verify base functions properly.
- Page 8 ASSEMBLY MATTRESS RETAINER INSTALLATION (OPTIONAL) Base is equipped with a Micro-Hook™ system to captivate the mattress as shown in FIGURE 3, but a mattress retainer can also be used. Important: If using a dust ruffle or mattress encasement with this product, a mattress retainer must be used.
-
Page 9: Remote Control Function
REMOTE CONTROL FUNCTION FLAT BUTTON LOCK BUTTON To lock / unlock the remote control Press and hold to lower the base to the flat position. This button will also turn buttons, press and hold lock button for off the massage motors and underbed 3 seconds. -
Page 10: Remote Control Programming
REMOTE CONTROL P ROGRAMMING ONE REMOTE TO OPERATE ONE BASE ONE REMOTE TO OPERATE TWO BASES STEP 1 STEP 1 Unplug base for 3 minutes, then plug back in. Unplug BOTH bases for 3 minutes, then plug BASE 1 back in. You now have 3 minutes to complete programming. - Page 11 REMOTE CONTROL P ROGRAMMING TWO REMOTES TO OPERATE ONE BASE TWO REMOTES TO OPERATE TWO BASES STEP 1 STEP 1 Unplug the base for 3 minutes, then plug back in. Unplug BOTH bases for 3 minutes, then plug back in. You now have 3 minutes to complete programming.
- Page 12 REMOTE CONTROL P ROGRAMMING REPROGRAM TWO REMOTE CONTROLS FOR INDIVIDUAL BASE OPERATION STEP 1 Unplug BOTH bases for 3 minutes, then plug BASE BASE 1 1 back in. REMOTE CONTROL 1 You now have 3 minutes to complete programming for BASE 1. STEP 2 Press and hold both the HEAD UP and FOOT UP BASE 2...
-
Page 13: Power Down Operation
P OWER DOWN OP ERATION Use this procedure to lower the base to flat during a power outage. Do NOT put batteries in power down device until necessary for use. Note: Power down device uses 9-volt alkaline batteries, which are not included. STEP 1 Unplug base from electrical power supply. - Page 14 P OWER DOWN OP ERATION STEP 4 Connect control box connection cord to power down device (FIGURE 7). FIGURE 7 POWER DOWN DEVICE CONTROL BOX CONNECTION CORD (removed from power supply brick) STEP 5 Press the FLAT BUTTON on the remote control until the base is in the flat position.
-
Page 15: Troubleshooting
TROUBLESHOOTING If the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMP TOM electrical outlet. A grounded, electrical surge protection device is recommended. Test outlet by plugging in another working appliance. Remote control illuminates and appears to be operable, but will not activate base. -
Page 16: Accessories
ACCESSORIES Contact customer service toll free (800-888-3078) to order accessories listed below. ACCESSORY DESCRIPTION CODE IMAGE 4B2284 3” Legs (set of 4) 4B1833 4” Legs (set of 4) 5” Legs 4B2100 (set of 4) 4B1209 Swing-away Hinges 4B0107 Push-in Locking Casters (set of 4) 4B3402 5”... -
Page 17: Warranty
1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY In this warranty: “Adjustable base” means the adjustable bed foundation sold by L&P to the dealer. The “adjustable base” does not include the mattress. “L&P” means Leggett & Platt, Incorporated. “Purchaser” and “You” both mean the consumer who is the original purchaser of this adjustable base made by L&P. - Page 18 1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Repair or replacement shall be the sole remedy of the L&P makes no other warranty whatever, express or Purchaser. There shall be no liability on the part of L&P implied, and all implied warranties of merchantability and for any special, indirect, incidental, or consequential fitness for a particular purpose are disclaimed by L&P and damages or for any other damage, claim, or loss not...
- Page 19 290-0095 EDR14513 1/18 NATIONWIDE CUSTOMER SERVICE (800) 888-3078 toll free: © 2018 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated...
