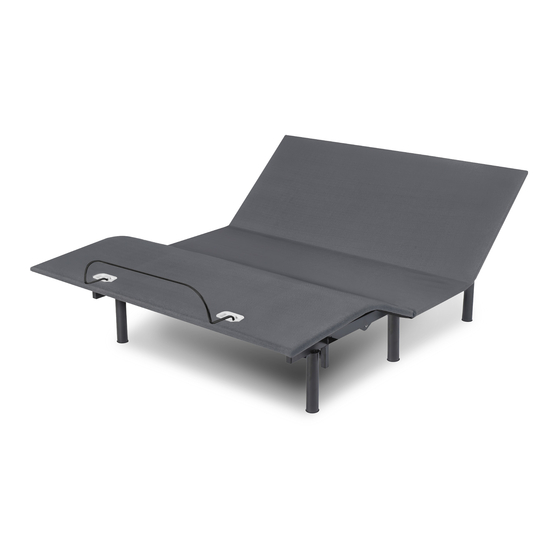

Leggett & Platt Symmetry EZ Owners Manual And Set-Up Manual

Adjustable base bed
Hide thumbs

Advertisement

Quick Links

owners manual / setup guide
Symmetry EZ
 K-120

Advertisement

loading

Related Manuals for Leggett & Platt Symmetry EZ

Summary of Contents for Leggett & Platt Symmetry EZ

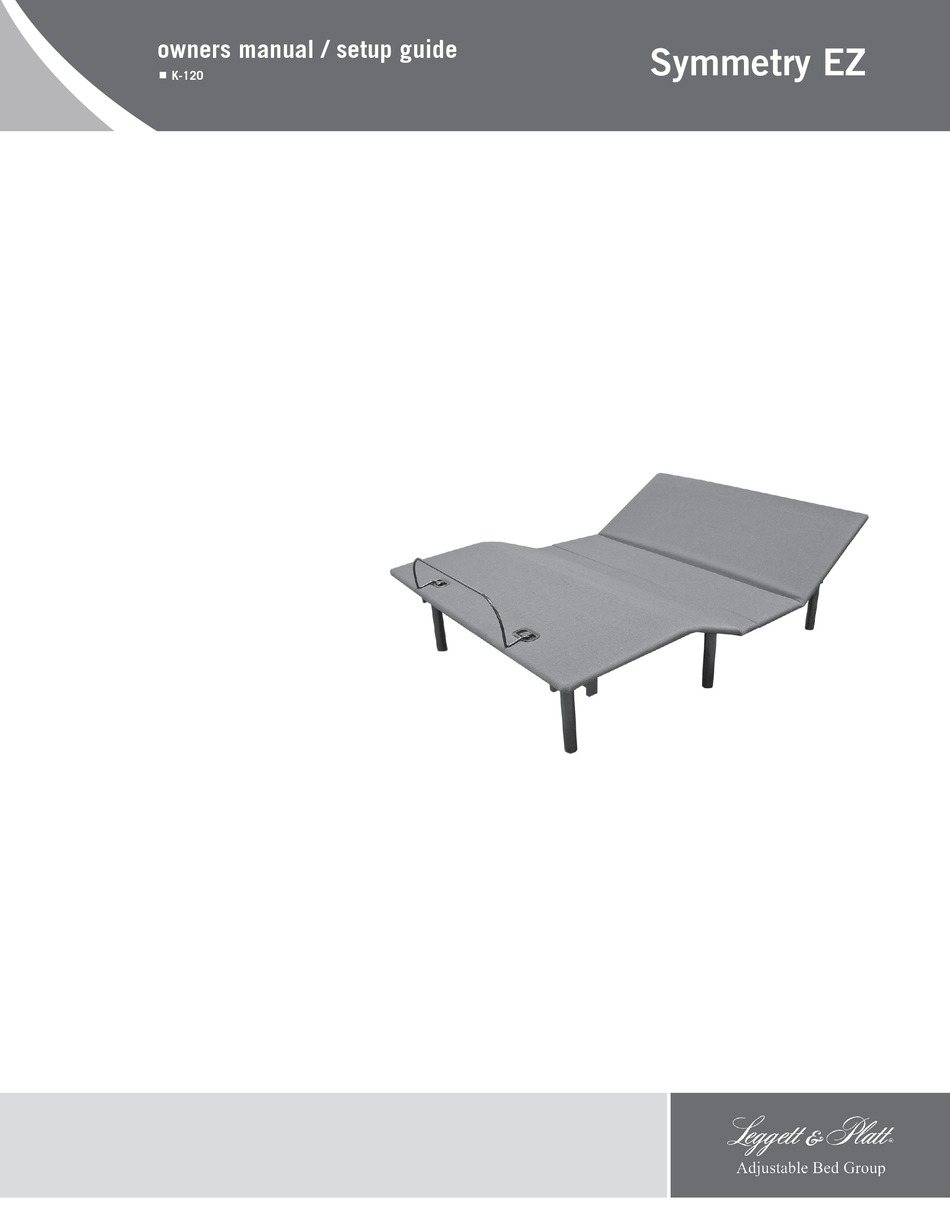

  • Page 1 / setup guide Symmetry EZ  K-120...

  • Page 3: Table Of Contents

    contents Advisory ........................4 Assembly ........................6 Remote Control Function .................... 13 Remote Control Programming ..................14 Troubleshooting ......................16 Warranty ........................17 If adjustable base does not operate or if parts are missing, call: (800) 888-3078 Do not contact retail store or dealer.

  • Page 4: Advisory

    The lift motors are permanently lubricated and sealed—no additional lubrication is required. Do not apply lubricant to lift motor lead screws or any nylon nuts or the base may inadvertently creep downward from the elevated position. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 5 To minimize this resonance, place a piece of carpet, or rubber caster cups, under each leg or caster of the base. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...

  • Page 6: Assembly

    (FIGURE 1). READ ALL INSTRUCTIONS BEFORE USING WARNING WARNING DUE TO RISk OF INjURY, TWO PEOPLE ARE REqUIRED TO HANDLE AND MOvE ADjUSTABLE BASE. FIGURE 1 LIFT TO UNFOLD BASE ADjUSTABLE BASE Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 7 (FIGURE 2). FIGURE 2 BOLT REMOvE COTTER PIN steP 3 When base is flat, reinsert bolts and cotter pins (FIGURE 3). FIGURE 3 BOLT REINSERT COTTER PIN BASE IN FLAT POSITION Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 8 ACTUATOR ZIP-TIE steP 4b Remove cotter pin and mounting bolt from head end of foot actuator. Retain for attaching foot actuator to base frame (FIGURE 5). FIGURE 5 BOLT REMOvE COTTER PIN Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 9 (FIGURE 6). Note: When installed, actuator must face side of base. FIGURE 6 MOUNTING POINT OF BASE FRAME FOOT ACTUATOR BOLT & COTTER PIN ACTUATOR MUST BE ORIENTED FACING SIDE OF BASE Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 10 POWER SUPPLY (power brick and electrical power cord) WARRANTY ACTIvATION CARD OWNERS MANUAL (6 pieces) SYNC CABLE REMOTE CONTROL split sizes only 2-AAA BATTERIES MATTRESS RETAINER *not shown zip-tied to base frame Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 11 Install (6) legs into the base frame. Simply screw each leg into the leg plates on the base frame (FIGURE 8). Tighten securely. FIGURE 8 Note: Typical leg installation shown. Actual product may vary slightly. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 12 Spread mattress retainer and place the other end of the mattress retainer in the outside hole of the right insert (FIGURE 9). FIGURE 9 MATTRESS RETAINER steP 12 Install mattress on adjustable base. Typical adjustable base installation is now complete. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...

  • Page 13: Remote Control Function

    Head/foot uP button Head/foot down button Press and hold to raise the head Press and hold to lower the head and foot sections simultaneously. and foot sections simultaneously. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...

  • Page 14: Remote Control Programming

    While holding the head down and foot up buttons on the remote control, press and hold the learn button on the control box (FIGURE 11) until you hear an audible sound, then release all buttons. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 15 Plug one end of the sync cable into the sync port (on the control box) of base 1. Plug the other end of the sync cable into the sync port (on the control box) of base 2 (FIGURE 13). Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...

  • Page 16: Troubleshooting

    Excessive motor noise. with the base support platform. • Verify that base is not positioned against a wall, nightstand, or other object that may cause vibration or noise. • If base is installed over a base frame, verify motors are not causing base frame (or base frame components) to vibrate. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...

  • Page 17: Warranty

    For example, if you make a claim for a replacement part eligible for this warranty in the 5th year since the Warranty Commencement Date, you would be responsible for paying: $100 part cost divided by 7, multiplied by 2 = $28.57. Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 18 You and the service will have to be rescheduled. Leggett & Platt, Incorporated PO Box 668 Lexington, North Carolina 27293 toll free phone: 1.800.888.3078 online: lpadjustablebases.com PLEASE DO NOT CONTACT YOUR RETAIL DEALER OR ANY OTHER SERvICE PERSONNEL Symmetry EZ K-120 Adjustable Base Owners Manual 290-0063...
  • Page 20 290-0063 EDR14103 5/17 nationwide custoMer service (800) 888-3078 toll free: © 2017 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated...
