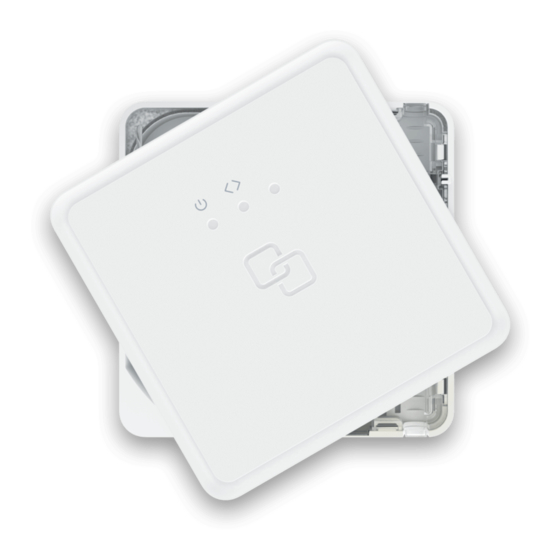

Genexis FiberTwist Series Installation Manual
Network termination unit
Hide thumbs
Also See for FiberTwist Series:
- Installation manual ,
- Installation manual (7 pages) ,
- Installation manual (7 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Genexis FiberTwist Series
Summary of Contents for Genexis FiberTwist Series
- Page 1 F2020 & F2120 FiberTwist–Series Installation Guide...
-
Page 2: Button Overview

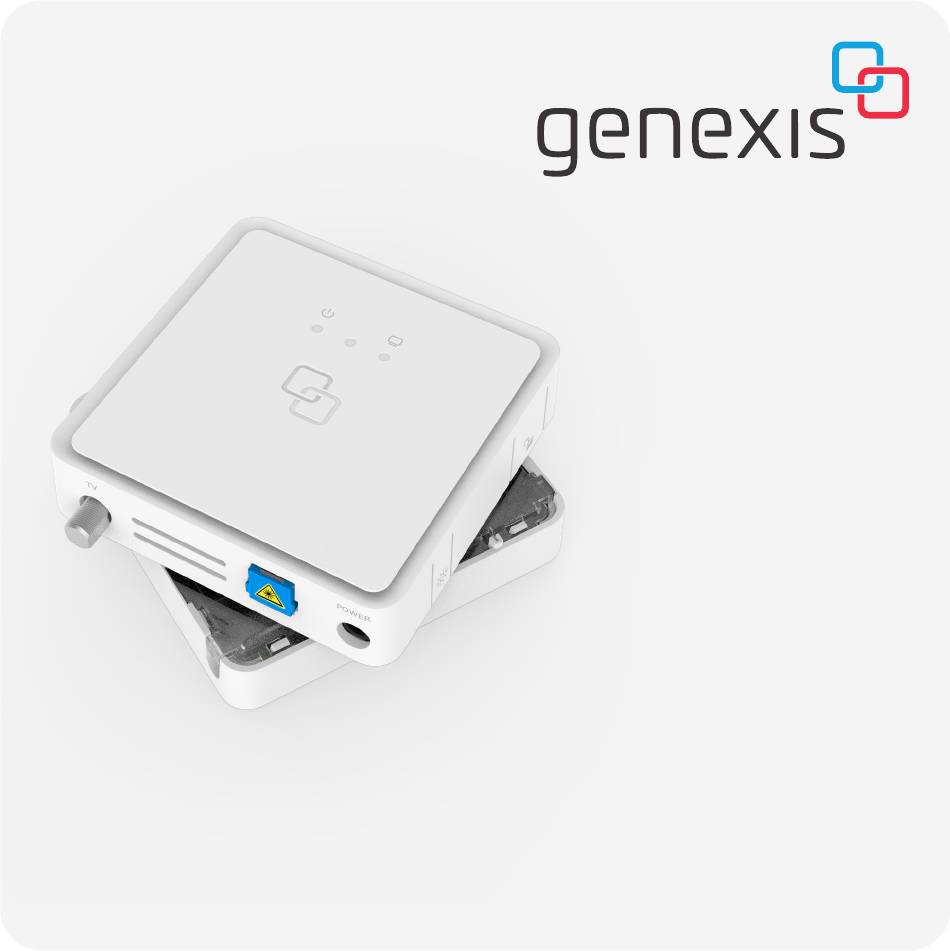

Button overview Port overview CATV port Power port SC/PC coupler with shutter Unlock button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise LED toggle button Toggle LEDs – press and release to toggle LEDs ON or OFF SC/PC coupler with shutter F2020 –... -
Page 3: Led Overview
LED overview System Green – system ok – power off CATV Green – CATV ok – no CATV... - Page 4 • Rotate the Blind Cover counterclockwise till it blocks. Box contents Important: These instructions • Remove the Blind Cover from the baseplate (FTU) by pulling • Genexis FiberTwist (active device) need to be followed precisely and it towards yourself. • Power adapter uninterrupted.
- Page 5 Remove dust cap Twist! • Take the FiberTwist out of the box. • Place the FiberTwist on the FTU as shown in the picture below, • The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. •...
-
Page 6: Eu Declaration Of Conformity
• Connect CATV cable as required. • F2120 only: open the blue shutter from the SC/PC coupler. Hereby, Genexis B. V . declares that the product FiberTwist-F2020/F2120 is • F2120 only: connect your fiber gateway to the SC/PC port in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU and using a fiber patch cable. - Page 7 Revision 1.0 April 2020, Copyright © 2020 Genexis B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
