How to Use LineaPro 5 Scanner

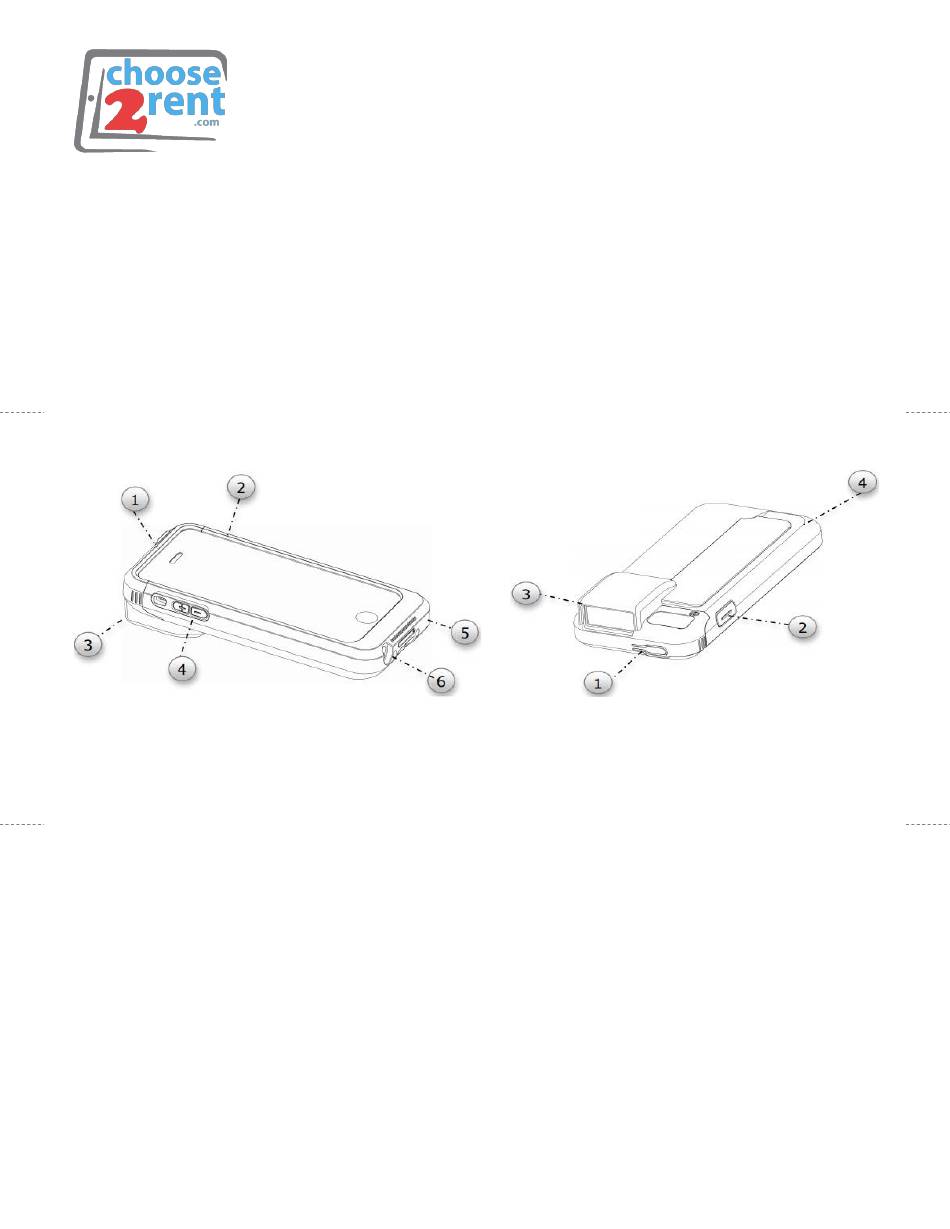

Top Side
1. iPod/iPhone On/Off Button
2. Linea Pro 5 Scan Button and On Button
3. Scanner
4. Volume Controls
5. USB Sync/Charge Port
6. Audio Connector

Dual Purpose Scan Button

The Linea Pro 5 uses a single dual-purpose scan button to power on the
unit as well as scanning barcodes. When the Linea Pro 5 is left idling
for an extended period, the power is automatically turned off to
preserve the charge in the internal battery pack.
Power On
When the Linea Pro 5 is in the off mode, pressing the scan button
momentarily turns on the unit. A single beep indicates the Linea Pro 5
is now ready for use.
Pressing the scan button a second time will activate the scanner for
normal bar code scanning.
1. iPod/iPhone On/Off Button
2. Linea Pro 5 Scan Button and On Button
3. Scanner
4. Magnetic Stripe Reader
page 1 of 4
Choose
2
Rent
Phone 1 (800) 622-6484
Fax
1 (866) 937-8254
info@choose2rent.com
www.choose2rent.com
Bottom Side

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LineaPro 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Infinite Peripherals LineaPro 5

  • Page 1 Choose Rent Phone 1 (800) 622-6484 1 (866) 937-8254 info@choose2rent.com www.choose2rent.com How to Use LineaPro 5 Scanner Bottom Side Top Side 1. iPod/iPhone On/Off Button 1. iPod/iPhone On/Off Button 2. Linea Pro 5 Scan Button and On Button 2. Linea Pro 5 Scan Button and On Button 3.
  • Page 2 How to Scan To scan a barcode, first activate the Linea Pro 5 by pressing the scan button. Then position the scan head as close to the barcode label as possible so that the scan line crosses both the ends of the barcode (or) is within the width of the red illuminated box.
  • Page 3 How to Read RFID Cards First activate the Linea Pro 5 by pressing the scan button. Place the RFID tag/card over the receiver/transmitter. Keep the face of the tag/card flat with the receiver/transmitter as close as possible. Please Note: Depending on the type of RFID tags/cards being used, it may be necessary for tags/cards to make direct contact with the surface where the RFID receiver/transmitter is located for proper reading/writing.
  • Page 4 2. Determine the charge state by viewing the status LEDs. Status LED Charge State 1LED = 25% of full charge 2LED = 50% of full charge 3LED = 75% of full charge 4LED = 100% of full charge LED Lighting Indications Result from charging, active/online status, or because of low battery.
