Altronix HubSat4WPiV Installation Manual page 6

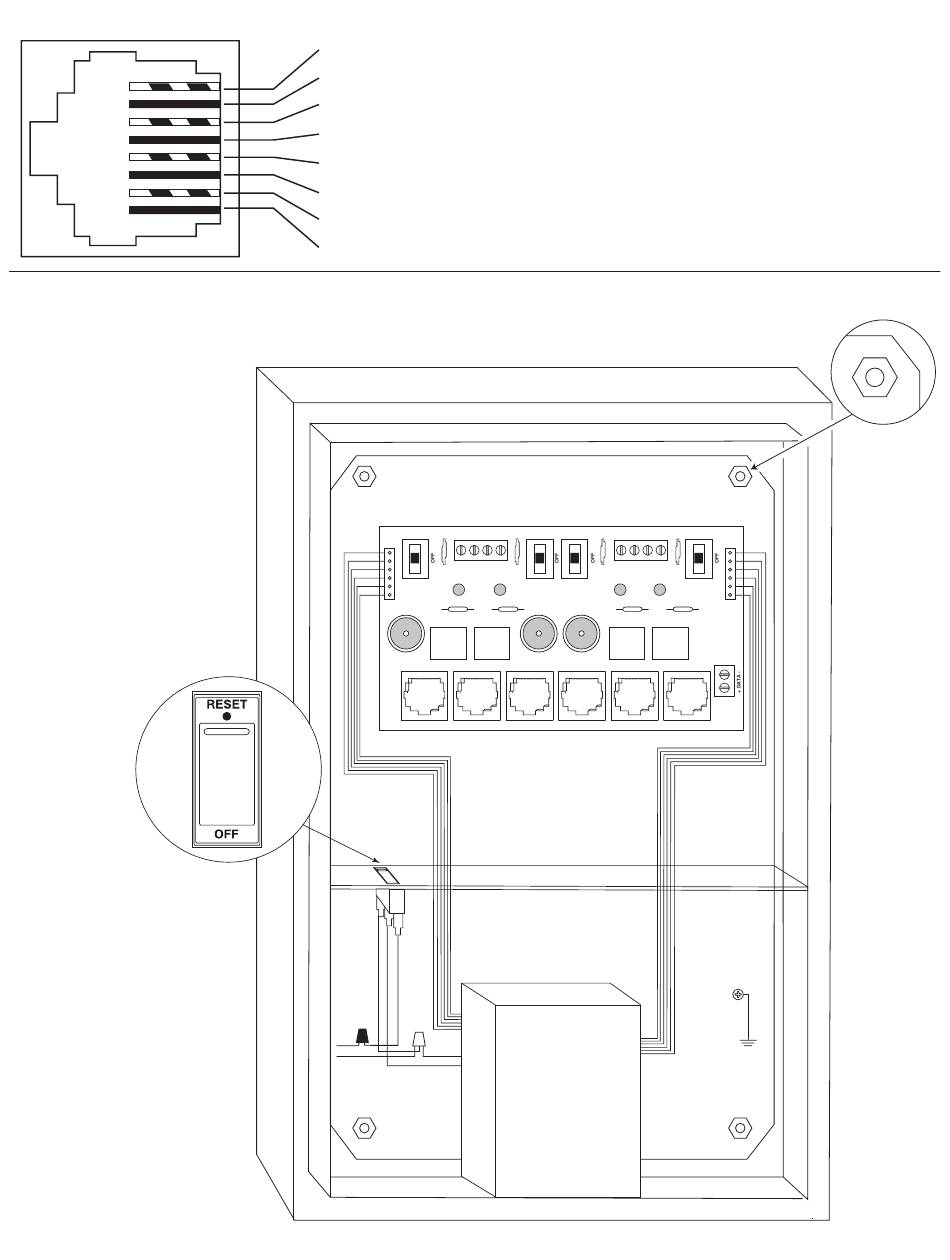

CAT-5 Structured Cable Wiring Color Codes and PIN Configurations
Fig. 5
Fig. 5a
Illuminated master power
disconnect circuit breaker:
• OFF position or Circuit
breaker tripped –
Switch not illuminated.
• RESET (ON) position –
Switch illuminated.
- 6 -
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -- ]
7 - White/Brown [AC 2]
8 - Brown [AC 1]
28VAC
24VAC
VIDEO1
(ON)
PVD1
non power-limited
Black
Black
Lead
Red
Lead
220VAC
Input
50/60 Hz.
AUX1 AUX2 28VAC 28VAC AUX3
24VAC 24VAC
VIDEO2 VIDEO3
PVD2 DATA 1-4 VIDEO 1-4 PVD3
XFMR
Fig. 5b
AUX4 28VAC
24VAC
PVD4
non power-limited
Green Lead
(Ground)
HubSat4WPiV
