Full IP65
Flat Stainless
Panel PC
Intel® Celeron® Bay Trail-M N2930 1.83 GHz
Quick Start Guide
V1.0
Model No.:
R15IB3S-65A1FTP
For more information on this and other Winmate
products, please visit our website at:
www.winmate.com
Document Part Number: 9152111I101Y
Please read these instructions carefully before using this product, and save this manual for future use.
Advertisement
Table of Contents
Related Manuals for Winmate R15IB3S-65A1FTP
Summary of Contents for Winmate R15IB3S-65A1FTP
- Page 1 Quick Start Guide V1.0 Model No.: R15IB3S-65A1FTP For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111I101Y Please read these instructions carefully before using this product, and save this manual for future use.
- Page 2 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
- Page 3 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability...
- Page 4 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance. You may need the following information ready before you call: ...
-
Page 5: Table Of Contents
Connecting to Other Devices Connector Pin Assignments Power Cable Serial Cable Ethernet Cable USB 2.0 Cable Mounting VESA Mounting Rear Mounting Specifications APPENDIX Appendix A: Cleaning the Monitor Appendix B: Winmate Software Development Kit Winmate Download Center Winmate File Share... -
Page 7: Introduction

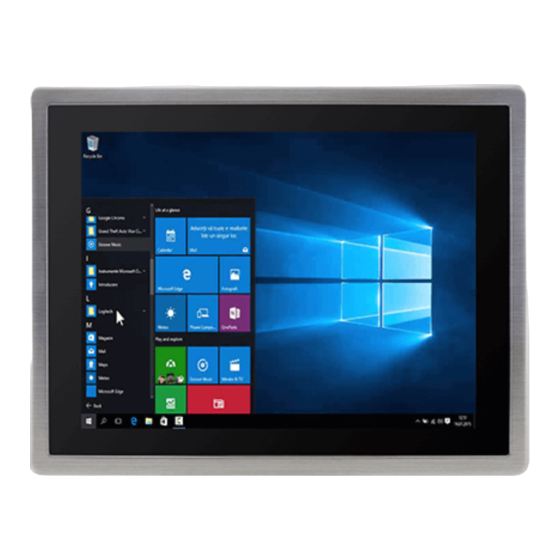

IP65 standard. Stainless housing features anti-corrosion properties making it suitable for food, chemical and pharmaceutical industries. Winmate® IP65 Flat Stainless Panel PC goes beyond that of the standard industrial panel computers with elegant, edge-to-edge design, rugged construction, powerful performance, and flexible mounting options. -
Page 8: Package Content
Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: IP65 Flat Stainless Driver CD &... -
Page 9: Description Of Parts
Description of Parts This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. Front View Side and Rear Views... -
Page 10: Dimensions
Dimensions Unit: mm Dimensions: 396 x 310 x 49 mm Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Off Press to power on or power off the device... - Page 11 LED Indicators LED Type Status Description Power is on Power is off Storage activity Blinking (Data is being read or written) System is idle...
-
Page 12: Getting Started
GETTING STARTED Turning On Your Device 1. Remove the protective cap of the DC IN jack. 2. Plug the AC adapter to the DC IN jack of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection. -
Page 13: How To Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. To enable watchdog in Watchdog AP follow the instructions below: 1. -
Page 14: Turning Off Your Device
Settings Description The system automaticity restarts when this Watchdog Countdown countdown time reaches zero. Time Default: 10 min To set a cycle time to automatically reset watchdog Periodically Feed Time timer. Default: 9 min Enable / Disable Enable or disable watchdog. Default: Enable Turning Off Your Device To shut down your device, do the following: Tap Start (... -
Page 15: Installation
INSTALLATION Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. ... -
Page 16: Connecting The Interface
Connecting the Interface This Panel PC comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. To ensure the waterproof function can work properly, make sure that the protective caps have been securely fastened whenever the connectors are not used. -
Page 17: Connecting To Other Devices
Connecting to Other Devices Perform the connections as shown below. -
Page 18: Connector Pin Assignments
Connector Pin Assignments This Panel PC is equipped with four connectors which are IP65 level and fool- proofing design. Use only the cables that are included in the package. The pin assignments of the cables are as follows. Power Cable The Flat Stainless Panel PC has IP65 connector. -
Page 19: Serial Cable
Serial Cable The Flat Stainless Panel PC has IP65 serial port connector. Use serial cable to connect serial interfaces. -
Page 20: Ethernet Cable
Ethernet Cable The Flat Stainless Panel PC has IP65 Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. -
Page 21: Usb 2.0 Cable
USB 2.0 Cable Flat Stainless Panel PC has one Full IP65 USB2.0 connector. Use USB 2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. -
Page 22: Mounting
This Panel PC comes with different mounting options suitable for most of the industrial and commercial applications. VESA Mounting This Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Screw Hole... -
Page 23: Rear Mounting
Rear Mounting Before you start installing the rear mount, be sure that you have the following components: Panel PC 2 x Bracket M4, 4mm Screw To install the rear mount, perform the following: 1. Prepare a customized fixture for Panel PC. 2. - Page 24 3. Secure the device from the back side first, so the outer frame can be fully covered to ensure the safety of your device. 4. Make sure your screws are tight and on the right position.
-
Page 25: Specifications
Specifications Hardware Specifications Model Name R15IB3S-65A1FTP Display 15” Size Resolution 1024 x 768 Brightness (typ.) Contrast Ratio 700 : 1 (typ.) Viewing Angle -80~80(H);-60~80(V) Max Colors 16.2M System Processor Intel® Celeron® Bay Trail-M N2930 1.83 GHz BIOS AMI 16Mbit Flash Intel®... - Page 26 1 x RS232 (Optional RS422/485) 2 x USB Type-A Receptacle Power 1 x 12VDC Mechanical Specification Dimensions 396 x 310 x 49 mm Cooling System Fanless Mounting VESA Mount, Rear Mount Environmental Consideration Operating Temperature -20°C to +60°C Operating Humidity 30% to 90% (non-condensing) IP Rating Full IP65...
- Page 27 Ordering Information – Configuration Panel PC SODIMM DDR3L Windows 10 IoT Enterprise Windows Embedded 8.1 Industry Pro Max. 8GB Windows Embedded 8 Standard Windows Embedded 7 Standard Storage Mini PCIe SSD Touch Projective Capacitive Touch Resistive Touch...
-
Page 28: Appendix
APPENDIX Appendix A: Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. ... -
Page 29: Appendix B: Winmate Software Development Kit
Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP65 Flat Stainless Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 30 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
- Page 31 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
- Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
