Supermicro X10SAT User Manual

Revision 1.0b
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
X10SAT
USER'S MANUAL
Revision 1.1a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro X10SAT

Summary of Contents for Supermicro X10SAT

  • Page 1 X10SAT USER’S MANUAL Revision 1.1a...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 X10SAT supports a single 4th Generation Intel® Core™ i7/i5/i3 DT processor, E3-1200 V3 series processor in an LGA 1150 (H3) socket. With the Intel® C226 Express chipset built in, the X10SAT motherboard offers substantial system performance and storage capability in a sleek package. Please refer to our website (http://www.supermicro.com/products/) for processor and memory support updates.
  • Page 4 X10SAT User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself: Warning: Critical information to prevent damage to the components or injury to your- self.
  • Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    X10SAT User’s Manual Table of Contents Preface Chapter 1 Introduction Overview ......................1-1 Chipset Overview ................... 1-9 Special Features ................... 1-10 PC Health Monitoring ..................1-10 ACPI Features ....................1-11 Power Supply ....................1-11 Super I/O ....................... 1-12 Chapter 2 Installation Standardized Warning Statements ..............2-1 Battery Handling ....................
  • Page 7 Table of Contents VGA Port ....................2-19 DVI Port ....................2-19 Thunderbolt Interface ................2-20 CMOS Reset/Clear ................... 2-20 Front Control Panel ..................2-21 Front Control Panel Pin Definitions............... 2-22 Power LED ....................2-22 HDD LED ....................2-22 NIC1/NIC2 (LAN1/LAN2) ................2-22 Overheat (OH)/Fan Fail ................
  • Page 8 X10SAT User’s Manual Power Button .................... 2-37 Onboard Indicators ..................2-38 LAN 1/LAN 2 LEDs .................. 2-38 Onboard Power LED (LED1) ..............2-38 2-10 SATA Connections ..................2-39 SATA Connections (I-SATA0~I-SATA5) ............ 2-39 Chapter 3 Troubleshooting Troubleshooting Procedures ................3-1 Technical Support Procedures ................

  • Page 9: Chapter 1 Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.

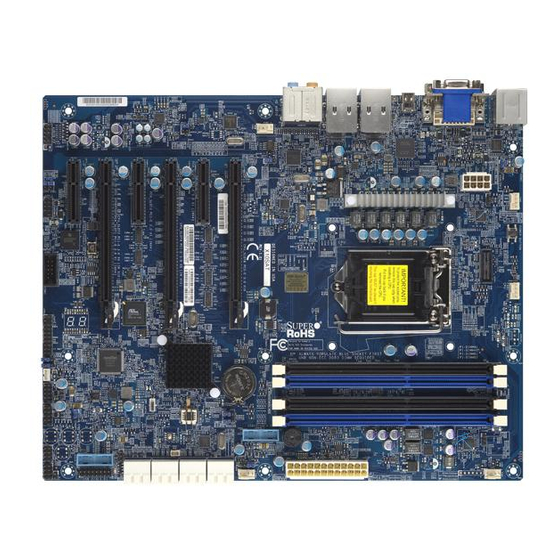

  • Page 10 X10SAT User’s Manual X10SAT Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics shown in this manual.
  • Page 11 Chapter 1: Introduction X10SAT Motherboard Layout CLEAR CMOS SWITCH THUNDERBOLT HDMI VGA/DVI JPAC1 USB 0/1 HD AUDIO JSPDIF_OUT FAN5 JPAC1:AUDIO USB 16/17 1-2:ENABLE USB 14/15 2-3:DISABLE PCIE1 USB 6/7(3.0) JPCIE2 PCIE3 JPCIE4 PCIE5 JPCIE6 USB 4/5(3.0) JPL2 LAN2 ENABLE DISABLE...
  • Page 12 X10SAT User’s Manual X10SAT Quick Reference CLEAR CMOS SWITCH THUNDERBOLT HDMI VGA/DVI USB 0/1 JPAC1 HD AUDIO JSPDIF_OUT FAN5 JPAC1:AUDIO USB 14/15 USB 16/17 1-2:ENABLE 2-3:DISABLE PCIE1 JPCIE2 PCIE3 JPCIE4 PCIE5 JPCIE6 USB 6/7(3.0) USB 4/5(3.0) JPL2 LAN2 ENABLE DISABLE...
  • Page 13 Chapter 1: Introduction Connectors and Switches Connector Description I/O Back Panel See page 2-16 for details Audio FP Front Panel Audio Header Battery Onboard Battery COM1 COM1 Port Header Fan 1,2,3,4,5 System/CPU Fan Headers (Fan1: CPU Fan) Speaker/buzzer (Pins 1-2: Buzzer, Pins 1~4: External Speaker) Front Panel Control Header Chassis Intrusion Header Reserved...
  • Page 14 X10SAT User’s Manual Motherboard Features Single 4th Generation Intel ® Core™ i7/i5/i3 DT processor, E3-1200 V3 series processor in an LGA1150 socket. Memory Four (4) SDRAM slots support up to 32 GB of DDR3 Unbuf- fered, Non-ECC 1600/1333/1066 MHz memory Note: ECC memory is supported when an Intel ®...
  • Page 15 Chapter 1: Introduction Audio One (1) High Definition Audio 7.1 channel connector sup- ported by Realtek ALC1150 on the back panel One (1) Front Panel Audio Header One (1) SPDIF In/Out on the rear side of the chassis Super I/O Nuvoton NCT6776D BIOS 128 Mb AMI BIOS...
  • Page 16 X10SAT User’s Manual X10SAT Block Diagram PCIe x16 SLOT #6 PCIe x8(in x16) SLOT #4 PCIe3.0_x8 SVID PCIe x8(in x16) SLOT #6 PCIe3.0_x4 VRM 12.5 8.0GT/s PCIe x4(in x16) SLOT #4 PCIe3.0_x8 Intel LGA1150 8.0GT/s 8.0GT/s DDR3 (CHA) PCIe3.0_x4 DIMM1A (Blue) 8.0GT/s...

  • Page 17: Chipset Overview

    Direct Media Interface (DMI) for chip-to-chip true iso- chronous communication, providing up to 10 Gb/s of software-transparent data transfer rate on each read/write direction. In addition, the X10SAT also features a TCO timer which allows the system to recover from a software/hardware lock and perform tasks, including Function Disable and Intruder Detect.

  • Page 18: Special Features

    X10SAT User’s Manual Special Features Recovery from AC Power Loss Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state.

  • Page 19: Acpi Features

    Chapter 1: Introduction is used to notify the user of certain system events. For example, you can also configure SuperDoctor to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond predefined thresholds. ACPI Features ACPI stands for Advanced Configuration and Power Interface.

  • Page 20: Super I/O

    X10SAT User’s Manual information, please refer to the web site at http://www.ssiforum.org/). Additionally, in areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

  • Page 21: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 22 X10SAT User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re- emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-...

  • Page 23: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 24: Static-Sensitive Devices

    X10SAT User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 25: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the LGA1150 Processor 1. Press the load lever to release the load plate, which covers the CPU socket, from its locking position.
  • Page 26 X10SAT User’s Manual 2. Gently lift the load lever to open the load plate. Remove the plastic cap. 3. Use your thumb and your index finger to hold the CPU at the North center edge and the South center edge of the CPU.
  • Page 27 Chapter 2: Installation 5. Do not rub the CPU against the surface or against any pins of the socket to avoid damaging the CPU or the socket.) 6. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed.

  • Page 28: Installing An Active Cpu Heatsink With Fan

    X10SAT User’s Manual Installing an Active CPU Heatsink with Fan 1. Locate the CPU Fan power connec- tor on the motherboard. (Refer to the layout on the right for the CPU Fan location.) 2. Position the heatsink so that the...
  • Page 29 Chapter 2: Installation 7. Align the four heatsink fasten- ers with the mounting holes on the motherboard. Gently push the pairs of diagonal fasteners (#1 & #2, and #3 & #4) into the mounting holes until you hear a click. Also, make sure to orient each fastener so that the narrow end of the groove is pointing...

  • Page 30: Removing The Heatsink

    X10SAT User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to remove the heatsink and to prevent damage done to the CPU or other components.

  • Page 31: Installing Ddr3 Memory

    Chapter 2: Installation Installing DDR3 Memory Note: Check the Supermicro website for recommended memory mod- ules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. DIMM Installation CLEAR CMOS SWITCH THUNDERBOLT HDMI VGA/DVI JPAC1 USB 0/1 1.

  • Page 32: Memory Support

    X10SAT User’s Manual Memory Support The X10SAT supports up to 32GB of Unbuffered (UDIMM) DDR3 Non-ECC 1600/1333/1066 MHz in 4 memory slots. Populating these DIMM modules with a pair of memory modules of the same type and same size will result in interleaved memory, which will improve memory performance.
  • Page 33 Chapter 2: Installation Possible System Memory Allocation & Availability System Device Size Physical Memory Remaining (-Available) (4 GB Total System Memory) Firmware Hub flash memory (System BIOS) 1 MB 3.99 Local APIC 4 KB 3.99 Area Reserved for the chipset 2 MB 3.99 I/O APIC (4 Kbytes)

  • Page 34: Motherboard Installation

    X10SAT User’s Manual Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fas- teners, metal ones are highly recommended because they ground the motherboard to the chassis.

  • Page 35: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 36: Connectors/Io Ports

    X10SAT User’s Manual Connectors/IO Ports The I/O ports are color coded in conformance with the industry standards. See the figure below for the colors and locations of the various I/O ports. Backplane I/O Panel CLEAR CMOS SWITCH THUNDERBOLT HDMI VGA/DVI...

  • Page 37: Universal Serial Bus (Usb)

    Chapter 2: Installation Universal Serial Bus (USB) Two Universal Serial Bus 2.0 ports (0/1) and four USB 3.0 ports (4/5,6/7) are located on the I/O back panel. In addition, two USB 2.0 headers (four ports: 4/5, 6/7), and two USB 3.0 headers (four ports: 0/1, 2/3) are also located on the motherboard to provide front chassis access using USB cables (not included).

  • Page 38: Ethernet Ports

    X10SAT User’s Manual Ethernet Ports LAN Ports Pin Definition Two Gigabit Ethernet ports (LAN1/ Pin# Definition LAN2) are located next to the P2V5SB SGND HD Audio Connector on the I/O TD0+ Act LED Backpanel to provide network con- TD0- P3V3SB nections.

  • Page 39: Hdmi Port

    Chapter 2: Installation HDMI Port One HDMI (High-Definition Multimedia In- terface) is located next to the VGA port on the I/O backpanel. This connector is used to display both high definition video and digital sound through an HDMI capable display, using a single HDMI cable (not included).

  • Page 40: Thunderbolt Interface

    X10SAT User’s Manual Thunderbolt Interface This motherboard supports one Thunderbolt interface on the backpanel. A Thunderbolt interface is a hardware interface that allows peripherals to be connected to the mother- board at transfer speeds of up to 10Gbit/s. This port combines a PCIe and a DisplayPort into one serial signal.

  • Page 41: Front Control Panel

    These connectors are designed spe- cifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.

  • Page 42: Front Control Panel Pin Definitions

    X10SAT User’s Manual Front Control Panel Pin Definitions Power LED Power LED Pin Definitions (JF1) The Power LED connection is located on Pin# Definition pins 15 and 16 of JF1. Refer to the table on the right for pin definitions.

  • Page 43: Reset Button

    Chapter 2: Installation Reset Button The Reset Button connection is located Reset Button Pin Definitions (JF1) on pins 3 and 4 of JF1. Attach it to a hard- Pin# Definition ware reset switch on the computer case Reset to reset the system. Refer to the table on Ground the right for pin definitions.

  • Page 44: Connecting Cables

    X10SAT User’s Manual Connecting Cables This section provides brief descriptions and pin-out definitions for onboard headers and connectors. Be sure to use the correct cable for each header or connector. For information on Backpanel USB and Front Panel USB ports, refer to Page 2-17. For Front Panel Audio, please refer to Page 2-21.

  • Page 45: Fan Headers (Fan 1 ~ Fan 5)

    Chapter 2: Installation Fan Headers (Fan 1 ~ Fan 5) Fan Header Pin Definitions The X10SAT has five fan headers (Fan 1~Fan Pin# Definition 5). These fans are 4-pin fan headers. Although Ground (Black) pins 1-3 of the fan headers are backward com- 2.5A/+12V...

  • Page 46: Internal Buzzer (Sp1)

    X10SAT User’s Manual Internal Buzzer (SP1) Internal Buzzer Pin Definition The Internal Buzzer (SP1) can be Pin# Definitions used to provide audible indications for Pin 1 Pos. (+) Beep In various beep codes. See the table on Pin 2 Neg. (-) Alarm the right for pin definitions.

  • Page 47: Onboard Power Led (Jled1)

    Chapter 2: Installation Onboard Power LED (JLED1) Onboard PWR LED Pin Definitions An onboard Power LED header is lo- Pin# Definition cated at JLED1. This Power LED header is connected to Front Control Panel No Connection located at JF1 to indicate the status of Connection to PWR system power.

  • Page 48: Dom Pwr Connector (Jsd1)

    X10SAT User’s Manual DOM PWR Connector (JSD1) DOM PWR Pin Definitions The Disk-On-Module (DOM) power Pin# Definition connector, located at JSD1, provides 5V (Gen1/Gen) power to a solid state Ground DOM storage device connected to one Ground of the SATA ports. See the table on the right for pin definitions.

  • Page 49: Standby Power Header

    Chapter 2: Installation Standby Power Header Standby Power Pin Definitions The Standby Power header is located Pin# Definition at STBY1 on the motherboard. See +5V Standby the table on the right for pin defini- Ground tions. Wake-up A. STBY PWR CLEAR CMOS SWITCH THUNDERBOLT HDMI...

  • Page 50: Tpm Header/Port 80 Header

    X10SAT User’s Manual TPM Header/Port 80 Header TPM/Port 80 Header Pin Definitions A Trusted Platform Module/Port 80 Pin # Definition Pin # Definition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)> Use this header to enhance system...

  • Page 51: Front Panel Audio Header (Audio Fp)

    Chapter 2: Installation Front Panel Audio Header (AUDIO FP) 10-in Audio Pin Definitions A 10-pin Audio header is supported on the Pin# Signal motherboard. This header allows you to Microphone_Left connect the motherboard to a front panel Audio_Ground audio control panet, if needed. Connect an Microphone_Right audio cable to the audio header to use this Audio_Detect...

  • Page 52: Jumper Settings

    X10SAT User’s Manual Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 53: Cmos Clear (Jbt1)

    Chapter 2: Installation CMOS Clear (JBT1) JBT1 is used to clear the saved system setup configuration stored in the CMOS chip. To clear the contents of the CMOS, completely shut down the system, remove the AC power cord and then short JBT1 with a jumper. Remove the jumper before powering on the system again.

  • Page 54: Audio Enable (Jpac1)

    X10SAT User’s Manual Audio Enable (JPAC1) Audio Enable/Disable Jumper Settings JPAC1 allows you to enable or disable Both Jumpers Definition the onboard audio support. The default Pins 1-2 Enabled position is on pins 1 and 2 to enable on- Pins 2-3 Disabled board audio connections.

  • Page 55: Usb Wake-Up (Jpusb 1/2)

    Chapter 2: Installation USB Wake-Up (JPUSB 1/2) USB Wake-Up Jumper Settings Use jumper JPUSB1 to activate the "wake- Jumper Setting Definition up" function of the USB ports by pressing Pins 1-2 Enabled a key on a USB keyboard or clicking the Pins 2-3 Disabled (Default) USB mouse connected.

  • Page 56: Intel Recovery Mode (Jpme1)

    X10SAT User’s Manual Intel Recovery Mode (JPME1) Intel Recovery Mode (JPME1) Use Jumper JPME1 to select ME frmware Jumper Settings Recovery mode, which will limit resource Pin# Definition allocation for essential systemoperation Normal (Default) only in order to maintain normal power ME Recovery operation and management.

  • Page 57: Bios Recovery (Jbr1)

    Chapter 2: Installation BIOS Recovery (JBR1) BIOS Recovery (JBR1) Jumper Settings The BIOS Recovery (JBR1) is used to en- Pin# Definition able or disable the BIOS Recovery feature Normal (Default) of the motherboard. Install the jumper on Recover pins 2-3 to begin the recovery process. See Appendix D for related information.

  • Page 58: Onboard Indicators

    X10SAT User’s Manual Onboard Indicators LAN1 LAN2 LAN 1/LAN 2 LEDs Link LED Activity LED Two LAN ports (LAN 1/LAN 2) are located on the I/O backplane of the GLAN 1/2 Activity Indicator motherboard. Each Ethernet LAN LED Settings port has two LEDs. The yellow LED...

  • Page 59: 2-10 Sata Connections

    Chapter 2: Installation 2-10 SATA Connections SATA Connections (I-SATA0~I-SATA5) Eight Serial ATA (SATA) 3.0 connectors (I-SATA 0~5, A-SATA 0/1) are supported on the board. The I-SATA 3.0 ports are supported by the Intel C226 PCH chip (sup- ports RAID 0, 1, 5, 10) while the A-SATA 3.0 ports are provided by the ASMedia SATA Controller.
  • Page 60 X10SAT User’s Manual Notes 2-40...

  • Page 61: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.
  • Page 62 X10SAT User’s Manual No Video 1. If the power is on, but you have no video--in this case, you will need to re- move all the add-on cards and cables first. 2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for details on beep codes.)

  • Page 63: Technical Support Procedures

    Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 64: Frequently Asked Questions

    Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The X10SAT supports up to 32GB of unbuffered Non-ECC DDR3 SDRAM (1.5V, 1600/1333/1066 MHz). See Section 2-4 for details on installing memory. Question: How do I update my BIOS? Answer: We do NOT recommend that you upgrade your BIOS if you are not experiencing any problems with your system.

  • Page 65: Battery Removal And Installation

    Chapter 3: Troubleshooting Question: I think my BIOS is corrupted. How can I recover my BIOS? Answer: Please see Appendix C-BIOS Recovery for detailed instructions. Question: Why do I get an error message “IASTOR.SYS read error” and "press F6 to install Intel RAID driver" when installing Windows on my motherboard? Answer: To solve this issue, disable the IPMI jumper.

  • Page 66: Returning Merchandise For Service

    You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro. com/RmaForm/). When you return the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.

  • Page 67: Chapter 4 Bios

    BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the X10SAT. The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 68: Main Setup

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 69 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The following BIOS items will also be displayed: Supermicro X10SAT Version Build Date Memory Information Total Memory This displays the total size of memory available in the system.

  • Page 70: Advanced Setup Configurations

    X10SAT User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced Setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect DRAM timing setting may cause the system to become unstable.
  • Page 71 Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the BIOS ROM of the host adaptors will "capture"...
  • Page 72 X10SAT User’s Manual CPU Configuration  The following CPU information will be displayed: • Type of CPU • CPU Signature • CPU Stepping • Microcode Patch • FSB Speed • Max (Maximum) CPU Speed • Min (Minimum) CPU Speed •...
  • Page 73 Chapter 4: AMI BIOS Clock Spread Spectrum If this feature is set to Enabled, the BIOS will monitor the level of electromagnetic interference caused by the components and will attempt to reduce the interference whenever needed. The options are Enabled and Disabled. Hyper-threading Select Enabled to support Intel Hyper-threading Technology to enhance CPU per- formance.
  • Page 74 X10SAT User’s Manual Note: If there is any change to this setting, you will need to power off and reboot the system for the change to take effect. Please refer to Intel’s web site for detailed information. CPU AES Select Enable for Intel CPU Advanced Encryption Standard (AES) Instructions sup- port to enhance data integrity.
  • Page 75 Chapter 4: AMI BIOS CPU Power Limit3 Time This item allows the user to determine how long CPU3 should operate at the power limit set by the user for the item above. Use the number keys on your keyboard to enter the value. Enter 0 to use the manufacturer's default setting. CPU Power Limit3 Duty Cycle This item allows the user to determine the percentage of time CPU3 should operate at the power set by the user for the item above (i.e., If Power Limit3...
  • Page 76 X10SAT User’s Manual 4 Core Ratio Limit This increases (multiplies) 4 clock speeds in the CPU core in relation to the bus speed when four CPU cores are active. Use the number keys on your keyboard to enter the value. The default setting is dependent on the CPU installed.
  • Page 77 Chapter 4: AMI BIOS delay time(period) during which the BIOS reports CPU C6 State (ACPI C3) to the operating system. The options are Short and Long. CPU C7 Report (Available when "CPU C States" is set to Enabled) Select Enabled to allow the BIOS to report the CPU C7 State (ACPI C3) to the operating system.
  • Page 78 X10SAT User’s Manual Chipset Configuration  WARNING: Setting the wrong values in the following sections may cause the system to malfunction. System Agent (SA) Configuration  The following System Agent (SA) information • System Agent Bridge Name • VT-d Capability...
  • Page 79 Chapter 4: AMI BIOS PCH Slot (Available when Primary Display is set to Auto) Use this item to select the graphics device installed in an expansion slot sup- ported by the PCH to be used as the primary display. The options are Auto, and PCH_SLOT1/SLOT3/SLOT5 PCI-E 2.0 X1 (IN X4).
  • Page 80 X10SAT User’s Manual PCI-E Configuration This item displays the information of the (graphics) device installed on a PCI-E slot. CPU SLOT6 PCI-E 3.0 X16 CPU SLOT6 PCI-E 3.0 X16 - Gen X This feature allows the user to select PCI-E support for the device installed on Slot6.
  • Page 81 Chapter 4: AMI BIOS DMI Link ASPM Control Use this feature to set the ASPM (Active State Power Management) state on the SA (System Agent) side of the DMI Link. The options are Disabled, L0s, L1 and L0sL1. PCH DMI Link ASPM Control Use this feature to set the ASPM (Active State Power Management) state on the device installed on the DMI Link supported by the PCH chip.
  • Page 82 X10SAT User’s Manual Memory Frequency Limiter This feature limits the frequency on which the system memory operates. The settings are Auto, 1067, 1333, and 1600d. Max TOLUD (Top of Low Usable DRAM) This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable DRAM"...
  • Page 83 Chapter 4: AMI BIOS Port 60/64 Emulation This feature enables or disables I/O port 60h/64h emulation support. This should be enabled for complete USB keyboard legacy support for non-USB-aware op- erating systems. The options are Disabled and Enabled. XHCI Hand-Off This item is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off.
  • Page 84 X10SAT User’s Manual SATA Configuration  When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA Devices and displays the following items: SATA Controllers This item Enables or Disables the built-in SATA controllers on the motherboard.
  • Page 85 Chapter 4: AMI BIOS Serial ATA Port 0~ Port 5 This item displays the information detected on the installed SATA drives on the particular SATA port. • Model number of drive and capacity • Software Preserve Support If the item above - SATA Mode Select is set to RAID, the following items are displayed: Serial ATA Port 0~ Port 5 This item displays the information detected on the installed SATA drives on the...
  • Page 86 X10SAT User’s Manual VGA Palette Snoop Select Enabled to support VGA palette register snooping which will allow the PCI cards that do not contain their own VGA color palette to examine the video cards palette and mimic it for proper color display. The options are Disabled and Enabled.
  • Page 87 Chapter 4: AMI BIOS Ipv6 PXE Support (Available when Network Stack is set to Enabled) Select Enabled to enable Ipv6 PXE (Preboot Execution Environment) for boot support. If this feature is set to Disabled, Ipv6 PXE boot option will not be supported.
  • Page 88 X10SAT User’s Manual Pending Operation Use this item to schedule a TPM-related operation to be performed by a security device for TPM support. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: The computer will reboot to carry out a pending TPM operation and change TPM state for a TPM device.
  • Page 89 Chapter 4: AMI BIOS AMT (Active Management Technology) Configuration Intel AMT Select Enabled to use Intel Active Management Technology (AMT) to enhance system performance. The options are Enabled and Disabled. Activate Remote Assistance Process Select Enabled to trigger CIRA (Client-Initiated Remot Access) boot. The options are Disabled, and Enabled.
  • Page 90 X10SAT User’s Manual H/W (Hardware) Monitor  PC Health Status Fan Speed Control Mode This feature allows the user to decide how the system controls the speeds of the onboard fans. The CPU temperature and the fan speed are correlative. When the CPU on-die temperature increases, the fan speed will also increase for effective system cooling.
  • Page 91 Chapter 4: AMI BIOS Intel(R) Thunderbolt  The following Intel Thunderbolt submenu items will display: • Thunderbolt Specification Version • Intel Sample Code Version • Thunderbolt Host Chip Security Level This option selects the security level for the Intel Thunderbolt port(s) . The options are Legacy Mode, Unique ID, One Time Saved Key, and DP+++ only.
  • Page 92 X10SAT User’s Manual Reserved Prefetch Memory per Physical Slot This option configures the Thunderbolt reserved Prefetch memory for each physi- cal slot. For example, if a PCIe device uses <X MB of prefetchable memory, the BIOS will reserve X MB per physical slot. Enter a numeric value in megabytes.
  • Page 93 Chapter 4: AMI BIOS Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS) Use this feature to enable console redirection. EMS Console Redirection Use this feature to enable console redirection for Serial Port Out-of-Band Manage- ment / Windows Emergency Management Services (EMS) ports. The options are Enabled and Disabled.

  • Page 94: Event Logs

    X10SAT User’s Manual Event Logs Smbios Event Log Change this item to enable or disable all features of the Smbios Event Logging during boot. The options are Enabled and Disabled. PCI Error Logging Support Change this item to enable or disable runtime error logging. The options are En- abled and Disabled.

  • Page 95: Boot Settings

    Chapter 4: AMI BIOS METW The Multiple Event Time Window (METW) defines number of minutes must pass between duplicate log events before MECI is incremented. This is in minutes, from 0 to 99.  View SMBIOS Event Log This section displays the contents of the SMBIOS Event Log. Boot Settings Use this feature to configure Boot Settings: Set Boot Priority...
  • Page 96 X10SAT User’s Manual  Hard Disk Drive BBS Priorities • 1st Device • 2nd Device  UEFI Boot Drive BBS Priorities • 1st Boot Device  Add New Boot Option This feature allows the user to add a boot device from which the systems will boot after power-on.

  • Page 97: Security Settings

    Chapter 4: AMI BIOS Security Settings This menu allows the user to configure the following security settings for the system. • If the Administrator password is defined ONLY - this controls access to the BIOS setup ONLY. • If the User's password is defined ONLY - this password will need to be entered upon each system boot, and will also have Administrator rights in the setup.

  • Page 98: Save & Exit

    X10SAT User’s Manual Save & Exit Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 99 Chapter 4: AMI BIOS Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use. Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En- ter>.
  • Page 100 X10SAT User’s Manual Notes 4-34...

  • Page 101: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 102 X10SAT User’s Manual Notes...

  • Page 103: Appendix B Software Installation Instructions

    To install these software programs and drivers, click the icons to the right of these items. (Note: To install the Windows Operating System, please refer to the instructions posted on our website at http://www.supermicro.com/ support/manuals/.) Driver/Tool Installation Display Screen Note 1: Click the icons showing a hand writing on the paper to view the readme files for each item.

  • Page 104: Configuring Superdoctor ® Iii

    X10SAT User’s Manual B-2 Configuring SuperDoctor ® The SuperDoctor III program is a Web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management tool is called the SD III Client. The SuperDoctor III program included on the CDROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 105 SuperDoctor® III Interface Display Screen-II (Remote Control) Note: The SuperDoctor III software and manual may be downloaded from our Website at: http://www.supermicro.com/products/accessories/software/SuperDoctorIII.cfm. For Linux, we still recommend that you use SuperDoctor II, this version is also available for download at the link above.
  • Page 106 X10SAT User’s Manual Notes...

  • Page 107: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 108 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super ROM" for BIOS recovery use.
  • Page 109 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt. Note: Do not interrupt this process until BIOS flashing is completed.
  • Page 110 X10SAT User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system.

  • Page 111: Appendix D Dual Boot Block

    Appendix D: Dual Boot Block Appendix D Dual Boot Block D-1 Introduction This motherboard supports the Dual Boot Block feature, which is the last-ditch mechanism to recover the BIOS boot block. This section provides an introduction to the feature. BIOS Boot Block A BIOS boot block is the minimum BIOS loader required to enable necessary hardware components for the BIOS crisis recovery flash that will update the main BIOS block.

  • Page 112: D-2 Steps To Reboot The System By Using Jumper Jbr1

    X10SAT User’s Manual D-2 Steps to Reboot the System by Using Jumper JBR1 1. Power down the system. 2. Close pins 2-3 on Jumper JBR1, and power on the system. 3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix C).
