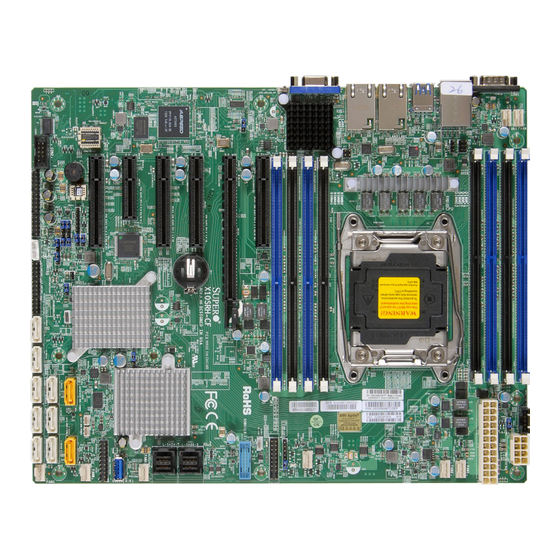

Supermicro X10SRH-CF/CLN4F User Manual
  1. Manuals
  2. Brands
  3. Supermicro Manuals
  4. Motherboard
  5. X10SRH-CF/CLN4F
  6. User manual

Supermicro X10SRH-CF/CLN4F User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

X10SRH-CF/
CLN4F
USER'S MANUAL
Revision 1.1c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10SRH-CF/CLN4F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro X10SRH-CF/CLN4F

Summary of Contents for Supermicro X10SRH-CF/CLN4F

  • Page 1 X10SRH-CF/ CLN4F USER’S MANUAL Revision 1.1c...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: Preface

    C612 Express chipset built in, the motherboard offers great system enhancement to high performance storage platforms. Please refer to our website (http://www.supermicro.com/products/) for processor and memory support updates. This product is intended to be installed and serviced by professional technicians.

  • Page 4: Conventions Used In The Manual

    X10SRH-CF/CLN4F User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper system instal- lation: Warning: Critical information given to prevent damage to the components or injury to yourself. Note: Additional Information provided for correct system setup.

  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    X10SRH-CF/CLN4F User’s Manual Table of Contents Preface About This Motherboard ....................iii Manual Organization ..................... iii Conventions Used in the Manual: .................iv Contacting Supermicro ....................v Chapter 1 Introduction Overview ......................1-1 Checklist ......................1-1 Motherboard Features ..................1-7 Chipset Overview ..................1-11 Intel C612 Express Chipset Features ............1-11...
  • Page 7 Table of Contents Returning Merchandise for Service..............3-6 Chapter 4 UEFI BIOS Introduction ...................... 4-1 Main Setup ...................... 4-2 Advanced Setup Configurations..............4-4 Event Logs ....................4-34 IPMI ....................... 4-36 Security Settings ................... 4-38 Boot Settings ....................4-39 Save & Exit ....................4-42 Appendix A UEFI BIOS Error Beep Codes Appendix B Software Installation Instructions Installing Software Programs ................B-1...
  • Page 8 X10SRH-CF/CLN4F User’s Manual Notes viii...

  • Page 9: Chapter 1 Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.
  • Page 10 X10SRH-CF/CLN4F User’s Manual X10SRH-CF/CLN4F Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. Your motherboard or components may or may not look exactly the same as the graphics shown in this manual.
  • Page 11 Chapter 1: Introduction X10SRH-CF/CLN4F Motherboard Layout JUIDB1 UID-LED UID-SW 1 2 3 COM1 USB0/1 USB2/3(3.0) i350 LEDM1 JPL1 FAN5 FAN4 IPMI_LAN LAN2/LAN4 LAN1/LAN3 JVR1 USB4/5 USB6/7 USB8/9 BIOS JPS1 JOH1 JL1 CHASSIS INTRUSION JBT1 JBR1 C610 LGA2011-3 X10SRH-CF LEDS1 JPSAS1 REV: 1.00...
  • Page 12 X10SRH-CF/CLN4F User’s Manual X10SRH-CF/CLN4F Quick Reference JUIDB1 UID-LED UID-SW 1 2 3 COM1 USB0/1 USB2/3(3.0) i350 LEDM1 JPL1 FAN5 FAN4 IPMI_LAN LAN2/LAN4 LAN1/LAN3 JVR1 USB4/5 USB6/7 USB8/9 BIOS JPS1 JOH1 JL1 CHASSIS INTRUSION JBT1 JBR1 C610 LGA2011-3 X10SRH-CF LEDS1 JPSAS1 REV: 1.00...
  • Page 13 Chapter 1: Introduction X10SRH-CF/CLN4F Headers/Connectors Connector Description Onboard Battery COM1/COM2 COM1 (Port)/COM2 (Header) Fan1 - Fan5 System/CPU Fan Headers FanA - FanC 24-pin ATX Main Power Connector (Required) Speaker/Buzzer (Pins 1-3: Power LED, Pins 4-7: Speaker) Front Control Panel Header...
  • Page 14 X10SRH-CF/CLN4F User’s Manual X10SRH-CF/CLN4F LED Indicators Description State/Color Status UID LED Blue On Unit Identified Power LED Power On LEDM1 BMC Heartbeat LED Green Blinking BMC Normal Green Blinking SAS Active LEDS1 SAS LED Solid On SAS Error...

  • Page 15: Motherboard Features

    Chapter 1: Introduction Motherboard Features Single Intel ® E5-2600/1600 Series processor in an LGA2011 R3 socket. Note: Both E5-2600v4 and E5-1600v4 re- quire Revision 2.0 BIOS (or higher). Memory Supports DDR4 memory up to 256GB RDIMM or 512GB LRDIMM at 2400 MHz (max.) in eight (8) DIMM slots. Dual-channel memory DIMM sizes RDIMM...
  • Page 16 X10SRH-CF/CLN4F User’s Manual Network Intel ® i350 Gigabit Dual-Channel Ethernet controller for LAN1/LAN2 ports (X10SRH-CF) Intel ® i350 Gigabit Quad-Channel Ethernet controller for LAN1/LAN2/LAN3/LAN4 ports (X10SRH-CLN4F) BIOS 128 Mb AMI BIOS ® SPI Flash BIOS Plug and Play (PnP), DMI 2.3, PCI 2.3, ACPI 1.0/2.0/3.0, USB Keyboard and SMBIOS 2.5...
  • Page 17 Chapter 1: Introduction X10SRH-CF Block Diagram VR12.5 5 PHASE 145W Skt-R3 LGA2011-3 DMI2 MINI SAS HD LSI SAS3008 PCI-E X8 Gen3 PCI-E X8 Gen3 PCIe3.0 X16 SLOT6 MINI SAS HD PCI-E X8 Gen3 ( X8 in X16 ) SLOT4 PCIe3.0 x8 PCI-E X4 Gen3 PCI-E X8 Gen3 PCIe3.0 X8...
  • Page 18 X10SRH-CF/CLN4F User’s Manual X10SRH-CLN4F Block Diagram VR12.5 5 PHASE 145W Skt-R3 LGA2011-3 DMI2 MINI SAS HD LSI SAS3008 PCI-E X8 Gen3 PCI-E X8 Gen3 PCIe3.0 X16 SLOT6 MINI SAS HD PCI-E X8 Gen3 ( X8 in X16 ) SLOT4 PCIe3.0 x8...

  • Page 19: Chipset Overview

    Direct Media Interface (DMI) for chip-to-chip true isochronous communication, providing up to 5 Gb/s of software-transparent data transfer rate on each read/write direction. In addition, the X10SRH-CF/CLN4F also features a TCO timer which allows the system to recover from a software/ hardware lock and perform tasks, including Function Disable and Intruder Detect.

  • Page 20: Special Features

    X10SRH-CF/CLN4F User’s Manual Special Features Recovery from AC Power Loss Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state.

  • Page 21: Acpi Features

    Chapter 1: Introduction ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specifica- tion defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a PC system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers.

  • Page 22: Super I/O

    X10SRH-CF/CLN4F User’s Manual Super I/O The Super I/O supports two high-speed, 16550 compatible serial communication ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability and a processor interrupt system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

  • Page 23: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 24 X10SRH-CF/CLN4F User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re- emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-...
  • Page 25 Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 26: Static-Sensitive Devices

    X10SRH-CF/CLN4F User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 27: Motherboard Installation

    Chapter 2: Installation Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fas- teners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 28 X10SRH-CF/CLN4F User’s Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 29: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the LGA2011 Processor 1. There are two load levers on the LGA2011 socket. To open the socket cover, first press and release the load lever labeled 'Open 1st'.
  • Page 30 X10SRH-CF/CLN4F User’s Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Pull lever away from Press down on Load the socket Lever 'Close 1st' 3. With the 'Close 1st' lever fully retracted, gently push down on the 'Open 1st' lever to open the load plate.
  • Page 31 Chapter 2: Installation 4. Using your thumb and the index finger, loosen the CPU lever and open the load plate. 5. Use your thumb and index finger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6.
  • Page 32 X10SRH-CF/CLN4F User’s Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labelled 'Close 1st' first, then lock the lever labelled 'Open 1st' second.
  • Page 33 Chapter 2: Installation Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket under- neath.
  • Page 34 X10SRH-CF/CLN4F User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to prevent damage to the CPU or the CPU socket.

  • Page 35: Installing Ddr4 Memory

    Chapter 2: Installation Installing DDR4 Memory Note: Check the Supermicro website for recommended memory mod- ules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. DIMM Installation JUIDB1 UID-LED UID-SW 1 2 3 COM1 USB0/1 1.
  • Page 36 DIMMC1 DIMMA1 The X10SRH-CF/CLN4F supports DDR4 memory up to 256GB RDIMM or 512GB LRDIMM at 2400 MHz (max.) in eight (8) DIMM slots. Populating these DIMM modules with a pair of memory modules of the same type and same size will result in interleaved memory, which will improve memory performance.
  • Page 37 Chapter 2: Installation Possible System Memory Allocation & Availability System Device Size Physical Memory Remaining (-Available) (4 GB Total System Memory) Firmware Hub flash memory (System BIOS) 1 MB 3.99 Local APIC 4 KB 3.99 Area Reserved for the chipset 2 MB 3.99 I/O APIC (4 Kbytes)

  • Page 38: Connectors/Io Ports

    X10SRH-CF/CLN4F User’s Manual Connectors/IO Ports The I/O ports are color coded in conformance with the industry standards. See the figure below for the colors and locations of the various I/O ports. Back Panel I/O Panel JUIDB1 UID-LED UID-SW 1 2 3...
  • Page 39 Chapter 2: Installation Universal Serial Bus (USB) Two Universal Serial Bus 2.0 ports (0/1) and two USB 3.0 ports (2/3) are located on the I/O back panel. In addition, six USB 2.0 headers (4/5, 6/7, 8/9), and two USB 3.0 headers (10, 11) are also located on the motherboard to provide USB 3.0 support using USB cables (not included).
  • Page 40 X10SRH-CF/CLN4F User’s Manual Ethernet Ports LAN Ports Pin Definition Four Gigabit Ethernet ports (LAN1/ Pin# Definition LAN2/LAN3/LAN4) and an IPMI_LAN MDI_N0 port are located on the I/O back panel MDI_P0 Act LED to provide network connections. These MDI_N1 Link Up ports accept RJ45 type cables.
  • Page 41 Chapter 2: Installation Unit Identifier Switch/UID LED Indicator UID Switch A Unit Identifier (UID) switch and an LED Pin# Definition Indicator are located on the motherboard. Ground The UID switch is located next to the VGA Ground port on the back panel. The UID LED (LE1) Button In is located next to the UID switch.
  • Page 42 These connectors are designed spe- cifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.
  • Page 43 Chapter 2: Installation Front Control Panel Pin Definitions NMI Button NMI Button Pin Definitions (JF1) The non-maskable interrupt button Pin# Definition header is located on pins 19 and 20 Control of JF1. Refer to the table on the right Ground for pin definitions.
  • Page 44 X10SRH-CF/CLN4F User’s Manual HDD LED HDD LED Pin Definitions (JF1) The HDD LED connection is located Pin# Definition on pins 13 and 14 of JF1. Attach a 3.3V SB/UID_SW cable here to indicate HDD activ- HD Active ity. See the table on the right for pin definitions.
  • Page 45 Chapter 2: Installation Overheat (OH)/Fan Fail/PWR Fail/ OH/Fan Fail/ PWR Fail/Blue_UID UID LED LED Pin Definitions (JF1) Pin# Definition Connect an LED cable to pins 7 and 8 of Front Control Panel to use the Overheat, Fan Fail, and Power Fail Red_LED-Cathode/OH/Fan Fail/ Power Fail connections.
  • Page 46 X10SRH-CF/CLN4F User’s Manual Reset Button Reset Button Pin Definitions (JF1) The Reset Button connection is located Pin# Definition on pins 3 and 4 of JF1. Attach it to a Reset hardware reset switch on the computer Ground case. Refer to the table on the right for pin definitions.

  • Page 47: Connecting Cables

    Chapter 2: Installation Connecting Cables This section provides brief descriptions and pin-out definitions for onboard headers and connectors. Be sure to use the correct cable for each header or connector. For information on Back Panel USB and Front Panel USB ports, refer to page 2-17. ATX Power 24-pin Connector ATX Main PWR &...
  • Page 48 X10SRH-CF/CLN4F User’s Manual Fan Headers (Fan 1-Fan 5 & Fan A-Fan C ) Fan Header Pin Definitions The X10SRH-CF/CLN4F has eight fan head- Pin# Definition ers (Fan 1-Fan 5 & Fan A-Fan C). These fans Ground (Black) are 4-pin fan headers. Although pins 1-3 of the 2.5A/+12V...
  • Page 49 Chapter 2: Installation Internal Buzzer (SPKR1) Internal Buzzer Pin Definition The Internal Buzzer (SP1) is used to Pin# Definitions provide audible indications for various Pin 1 Pos. (+) Beep In beep codes. See the table on the right Pin 2 Neg.
  • Page 50 X10SRH-CF/CLN4F User’s Manual DOM PWR Connector (JSD1/JSD2) DOM PWR Pin Definitions The Disk-On-Module (DOM) power Pin# Definition connectors, located at JSD1 and JSD2, provide 5V power to a solid Ground state DOM storage device connected Ground to one of the SATA ports. See the table on the right for pin definitions.
  • Page 51 Chapter 2: Installation T-SGPIO 1/2/3 Headers T-SGPIO/6-SGPIO Pin Definitions Three Serial-Link General Purpose Input/ Pin# Definition Pin# Definition Output headers (T-SGPIO 1/2/3) are located on the motherboard. T-SGPIO Data Ground 1/2/3 support onboard SATA interface, Ground Load and. See the table on the right for pin Clock definitions.
  • Page 52 X10SRH-CF/CLN4F User’s Manual TPM Header/Port 80 Header TPM/Port 80 Header Pin Definitions A Trusted Platform Module/Port 80 Pin # Definition Pin # Definition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)> Use this header to enhance system...

  • Page 53: Jumper Settings

    Chapter 2: Installation Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.
  • Page 54 X10SRH-CF/CLN4F User’s Manual CMOS Clear (JBT1) JBT1 is used to clear the saved system setup configuration stored in the CMOS chip. To clear the contents of the CMOS, completely shut down the system, remove the AC power cord and then short JBT1 with forceps. Remove the forceps before powering on the system again.
  • Page 55 Chapter 2: Installation Manufacture Mode Select ME Mode Select Close jumper JPME2 to bypass SPI flash Jumper Settings security and force the system to use the Pin# Definition Manufacture Mode which will allow the Normal (Default) user to flash the system firmware from Manufacture Mode a host server to modify system settings.
  • Page 56 X10SRH-CF/CLN4F User’s Manual VGA Enable VGA Enable Jumper Settings Jumper JPG1 allows the user to enable Pin# Definition the onboard VGA connector. The default Enabled (Default) setting is 1-2 to enable the connection. Disabled See the table on the right for jumper settings.
  • Page 57 Chapter 2: Installation BMC Enable BMC Enable Jumper Settings Jumper JPB1 allows you to enable Pin# Definition the embedded the Aspeed 2400 BMC BMC Enable (Baseboard Management) Controller to Normal (Default) provide IPMI 2.O/KVM support on the motherboard. See the table on the right for jumper settings.
  • Page 58 X10SRH-CF/CLN4F User’s Manual BIOS Recovery Enable BIOS Recovery Jumper Settings Close pins 2 and 3 of jumper JBR1 for Pin# Definition BIOS recovery. The default setting is on Normal pins 1 and 2 for normal operation. See BIOS Recovery the table on the right for jumper settings.

  • Page 59: Onboard Indicators

    Chapter 2: Installation Onboard Indicators LAN1/LAN2 Activity LED Link LED LAN 1/LAN 2 LEDs Four LAN ports (LAN 1/LAN 2) are located GLAN 1/2 Activity Indicator on the I/O back panel of the motherboard. LED Settings Each Ethernet LAN port has two LEDs. The Color Status Definition...
  • Page 60 LED location. BMC Heartbeat LED BMC Heartbeat LEDM1 Status A BMC Heartbeat LED is located at Color/State Definition LEDM1 on the X10SRH-CF/CLN4F. See Green: BMC: Normal Blinking the table on the right for more informa- tion. A. PWR LED B.
  • Page 61 Chapter 2: Installation SAS Heartbeat LED SAS Heartbeat LED Status (LEDS1) A SAS Heartbeat LED is located at Color/State Definition LEDS1 on the motherboard. See the Green: SAS Active table on the right for more information. Blinking Red: Solid On SAS Error A.

  • Page 62: 2-10 Sata Connections

    X10SRH-CF/CLN4F User’s Manual 2-10 SATA Connections SATA/SAS Connections SATA/SAS Connectors Pin Definitions Ten SATA 3.0 connectors (I-SATA 0-5) and (S- Pin# Signal SATA 0-3) are located on the board. I-SATA 0-5 Ground ports are supported by the AHCI controller and SATA_TXP are compatible with RAID 0, 1, 5, 10.

  • Page 63: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.
  • Page 64 X10SRH-CF/CLN4F User’s Manual No Video 1. If the power is on, but you have no video--in this case, you will need to re- move all the add-on cards and cables first. 2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for details on beep codes.)

  • Page 65: Technical Support Procedures

    Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 66: Frequently Asked Questions

    Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The X10SRH-CF/CLN4F supports up to 256GB of RDIMM and 512GB of LRDIMM DDR4 2400 MHz (max.) in eight memory slots. See Section 2-5 for details on installing memory.

  • Page 67: Battery Removal And Installation

    Chapter 3: Troubleshooting Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 68: Returning Merchandise For Service

    X10SRH-CF/CLN4F User’s Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro.

  • Page 69: Chapter 4 Uefi Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. Note: The AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.

  • Page 70: Main Setup

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 71 Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10SRH-CF/CLN4F Version: This item displays the version of the BIOS ROM used in the system. Build Date: This item displays the date when the version of the BIOS ROM used in the system was built.

  • Page 72: Advanced Setup Configurations

    X10SRH-CF/CLN4F User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.
  • Page 73 Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adapters will "capture"...
  • Page 74 X10SRH-CF/CLN4F User’s Manual Restore on AC Power Loss Use this feature to set the power state after a power outage. Select Power-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss.
  • Page 75 Chapter 4: AMI BIOS Cores Enabled Select Enabled to enable all CPU cores. The default setting is 0. Execute-Disable Bit (Available if supported by the OS & the CPU) Select Enable for Execute Disable Bit Technology support, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor to damage the system during an attack.
  • Page 76 X10SRH-CF/CLN4F User’s Manual Direct Cache Access (DCA) Select Enable to use Intel DCA (Direct Cache Access) Technology to improve the efficiency of data transferring and accessing. The options are Auto, Enable, and Disable. DCA Prefetch Delay A DCA Prefetcher is used with a TOE (TCP/IP Offload Engine) adapter to prefetch data in order to shorten execution cycles and maximize data processing efficiency.
  • Page 77 Chapter 4: AMI BIOS Config TDP (Configuring Thermal Design Power) Select Enable to configure TDP power settings to enhance thermal management. The options are Enable and Disable. Config TDP Level (Available when Config TDP above is set to Enable) Use this item to set TDP configuration level to enhance thermal management. The options are Nominal, Level 1, and Level 2.
  • Page 78 X10SRH-CF/CLN4F User’s Manual CPU C6 Report (Available when Power Technology is set to Custom) Select Enable to allow the BIOS to report the CPU C6 state (ACPI C3) to the operating system. During the CPU C6 state, power to all cache is turned off.
  • Page 79 Chapter 4: AMI BIOS Package Clamping Limit1 Use this item to set the limit on power performance states for the runtime proces- sor, with P0 being the state with the highest frequency (clock speed) and power (consumption), and P1, a step lower in performance than P0, with its frequency and voltage scaled back a notch.
  • Page 80 X10SRH-CF/CLN4F User’s Manual PORT 1A Link Speed This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s) and Gen 3 (Generation 3) (8 GT/s).
  • Page 81 Chapter 4: AMI BIOS IOAT (Intel® IO Acceleration) Configuration Enable IOAT Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which significantly reduces CPU overhead by leveraging CPU architectural improve- ments and freeing the system resource for other tasks. The options are Enable and Disable.
  • Page 82 X10SRH-CF/CLN4F User’s Manual QPI (Quick Path Interconnect) Configuration QPI Status The following information will display: • Number of CPU • Number of IIO Link Speed Mode Use this item to select the data transfer speed for QPI Link connections. The options are Fast and Slow.
  • Page 83 Chapter 4: AMI BIOS Memory Frequency Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1333, 1400, 1600, 1800, 1867, 2000, 2133, 2200, 2400, 2600, 2667, and Reserved (Do not select Reserved). ECC Support Select Enable to allow additional output in the debug log to make machine pars- ing easier.
  • Page 84 X10SRH-CF/CLN4F User’s Manual Rank Interleaving Use this item to select a rank memory interleaving method. The options are Auto, 1-Way, 2-Way, 4-Way, and 8-Way. A7 Mode Select Enabled to support the A7 (Addressing) mode to improve memory per- formance. The options are Enable and Disable.
  • Page 85 Chapter 4: AMI BIOS Patrol Scrub Interval This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The Default setting is 24. Demand Scrub Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module.
  • Page 86 X10SRH-CF/CLN4F User’s Manual EHCI Hand-Off This item is for operating systems that do not support Enhanced Host Controller Interface (EHCI) hand-off. When this item is enabled, EHCI ownership change will be claimed by the EHCI driver. The settings are Enabled and Disabled.
  • Page 87 Chapter 4: AMI BIOS SATA Configuration  When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the fol- lowing items: SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 88 X10SRH-CF/CLN4F User’s Manual Port 0 ~ Port 5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to initialize the device. The options are Enabled and Disabled. Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive.
  • Page 89 Chapter 4: AMI BIOS Port 0~ Port 5 Select Enabled to enable a SATA port specified by the user. The options are Disabled and Enabled. Port 0 ~ Port 5 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system.
  • Page 90 X10SRH-CF/CLN4F User’s Manual sSATA Port 0~ Port 3 This item displays the information detected on the installed on the sSATA port. specified by the user. • Model number of drive and capacity • Software Preserve Support sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user.
  • Page 91 Chapter 4: AMI BIOS Support Aggressive Link Power Management When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active.
  • Page 92 X10SRH-CF/CLN4F User’s Manual • Recovery Firmware Version • ME Firmware Features • ME Firmware Status #1 • ME Firmware Status #2 • Current State • Error Code PCIe/PCI/PnP Configuration The following PCI information will be displayed: • PCI Bus Driver Version...
  • Page 93 Chapter 4: AMI BIOS Maximum Read Request Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes. ASPM Support Use this item to set the Active State Power Management (ASPM) level for a PCI-E device.
  • Page 94 X10SRH-CF/CLN4F User’s Manual Onboard LAN1 Option ROM/Onboard LAN2 Option ROM/Onboard LAN3 Option ROM/Onboard LAN4 Option ROM/Onboard Video Option ROM Use this option to select the type of device installed in LAN Port1, LAN Port2, LAN Port3, LAN Port4, or the onboard video device used for system boot. The default setting for LAN1 Option ROM is PXE, for LAN2 Option ROM, LAN3 Option ROM, or LAN4 Option ROM is Disabled, and for Onboard Video Option ROM is Legacy.
  • Page 95 Chapter 4: AMI BIOS Device Settings This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user. Change Port 1 Settings/Change Port 2 Settings This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1 or Serial Port 2.
  • Page 96 X10SRH-CF/CLN4F User’s Manual Bits Per second Use this item to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 97 Chapter 4: AMI BIOS Legacy OS Redirection Resolution Use this item to select the number of rows and columns used in Console Redi- rection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 98 X10SRH-CF/CLN4F User’s Manual Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits). Parity A parity bit can be sent along with regular data bits to detect data transmission errors.
  • Page 99 Chapter 4: AMI BIOS Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400. Redirection After BIOS Post Use this feature to enable or disable legacy Console Redirection after BIOS POST (Power-On Self-Test).
  • Page 100 X10SRH-CF/CLN4F User’s Manual Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop data-sending when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty.
  • Page 101 Chapter 4: AMI BIOS ACPI Settings  WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) plat- form and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring.

  • Page 102: Event Logs

    X10SRH-CF/CLN4F User’s Manual Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 103 Chapter 4: AMI BIOS Memory Correctable Error Threshold Use this item to enter the threshold value for correctable memory errors. The default setting is 10. Erasing Settings Erase Event Log Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup.

  • Page 104: Ipmi

    X10SRH-CF/CLN4F User’s Manual IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system.
  • Page 105 Chapter 4: AMI BIOS When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

  • Page 106: Security Settings

    X10SRH-CF/CLN4F User’s Manual Security Settings This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to prompt for a password at Setup. Select Always for the system to prompt for a password at bootup and upon entering the BIOS Setup utility.

  • Page 107: Boot Settings

    Chapter 4: AMI BIOS Boot Settings Use this feature to configure Boot Settings: Boot Configuration Setup Prompt Timeout Use this item to indicate how many seconds the system shall wait for the BIOS setup activation key to respond before the system starts to boot. The default setting is 1. Boot Mode Select Use this item to select the type of device to be used for system boot.
  • Page 108 X10SRH-CF/CLN4F User’s Manual • Dual Boot Order #7 • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 • Dual Boot Order #14 •...
  • Page 109 Chapter 4: AMI BIOS  Hard Disk Drive BBS Priorities • Legacy Boot Order #1 - Legacy Boot Order #10  Network Drive BBS Priorities • Legacy Boot Order #1 - Legacy Boot Order #3  UEFI Application Boot Priorities •...

  • Page 110: Save & Exit

    X10SRH-CF/CLN4F User’s Manual Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 111 Chapter 4: AMI BIOS Restore Defaults To set this feature, select Restore Defaults from the Exit menu and press <Enter>. These are manufacture default settings designed for maximum system performance but not for maximum stability. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>.
  • Page 112 X10SRH-CF/CLN4F User’s Manual Notes 4-44...

  • Page 113: Appendix A Uefi Bios Error Beep Codes

    The numbers on the fatal error list correspond to the number of beeps for the corresponding error. For more information, please refer to the BIOS Error Post (Beep) Codes at https:// www.supermicro.com/manuals/other/AMI_BIOS_POST_Codes_for_Grantley_ Motherboards.pdf. BIOS Error Beep Codes Beep Code/LED Error Message...
  • Page 114 X10SRH-CF/CLN4F User’s Manual Notes...

  • Page 115: Appendix B Software Installation Instructions

    Appendix B: Software Installation Instructions Appendix B Software Installation Instructions B-1 Installing Software Programs The Supermicro ftp site contains drivers and utilities for your system at https:// www.supermicro.com/wftp/driver/. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 116: B-2 Installing Superdoctor5

    X10SRH-CF/CLN4F Motherboard User’s Manual B-2 Installing SuperDoctor5 The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 117: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 118 X10SRH-CF/CLN4F User’s Manual The file system supported by UEFI is FAT (including FAT12, FAT16, and FAT32) installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size be- comes too large because it contains too many folders and files.
  • Page 119 Appendix C: UEFI BIOS Recovery 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start with BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 5.
  • Page 120 X10SRH-CF/CLN4F User’s Manual 6. After the process of BIOS recovery is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.

  • Page 121: Appendix D Dual Boot Block On Grantley Platforms

    Dual Boot Block on Grantley Platforms Overview On X10 Grantley platforms, Supermicro introduces the Dual Boot Block feature that revives the system from an inert state if the primary boot block in the ROM chip is damaged. A boot block carries critical codes to boot the system with minimum hardware requirements for the BIOS recovery flash.

  • Page 122: D-1 Ipmi Gui Browser

    X10SRH-CF/CLN4F User’s Manual D-1 IPMI GUI Browser To perform perform the Dual Boot Block through the IPMI GUI browser, follow the instructions below: 1. After the IPMI GUI browser log-in, click on the Miscellaneous tab, then BIOS Resilience, then the Resile button.
  • Page 123 Appendix D: Dual Boot Block 3. Click on the Remote Control tab, then Console Redirection, then the Launch Console button to open the Java iKVM Viewer. 4. In the Java iKVM Browser, click on the Virtual Media tab, then Virtual Stor- age to open the Virtual Media Loader.
  • Page 124 X10SRH-CF/CLN4F User’s Manual 5. In the Virtual Media loader, click on the Device1 tab, then Logical Drive Type drop-down menu, then select the USB flash drive with Super.ROM. Click Plug In, then OK. 6. Click on the Remote Control tab, then Power Control, then check the Power On Server button.
  • Page 125 Appendix D: Dual Boot Block 7. After the system powers on, the secondary boot block starts to initialize the essential hardware components and locates Super.ROM in the USB flash drive, which was mounted earlier. If Super.ROM is found, the on-duty boot block boots to it and finishes the rest of the POST processes.
  • Page 126 X10SRH-CF/CLN4F User’s Manual 9. A message box will appear to indicate the BIOS recovery flash process is complete. Press ENTER to finish. The system will do a power cycle to deacti- vate the dual boot block feature and produce a normal BIOS POST.

  • Page 127: D-2 Ipmi Command Sets

    Appendix D: Dual Boot Block D-2 IPMI Command Sets To perform perform the Dual Boot Block through the IPMI Command Sets, follow the instructions below: 1. After the IPMI GUI browser log-in, click on the Remote Control tab, then Console Redirection, then the Launch Console button to open Java iKVM Viewer.
  • Page 128 X10SRH-CF/CLN4F User’s Manual 3. Enable BIOS Resilience mode in remote IPMI and confirm. • To enable, type the following command in the command prompt: ipmi raw 30 70 C2 D5 00 00 • To confirm, type the following command in the command prompt: impi raw 30 70 C3 D5 4.

  • Page 129: User Approach

    Appendix D: Dual Boot Block 5. Power on the remote system for BIOS recovery flash. • To power on, type: ipmi power up After the system powers on, the secondary boot block initializes the essential hardware components and locates Super.ROM in the USB flash drive, which are the same as Steps 7-9 in Section D-1.
  • Page 130 X10SRH-CF/CLN4F User’s Manual Notes D-10...
