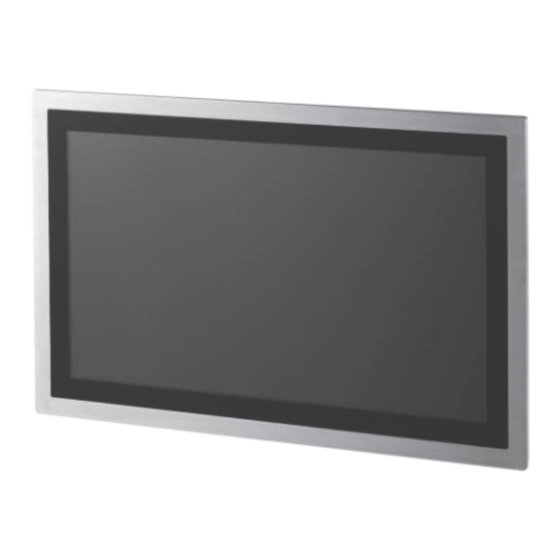

ADLINK Technology Titan-AL Series User Manual

Rugged panel computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

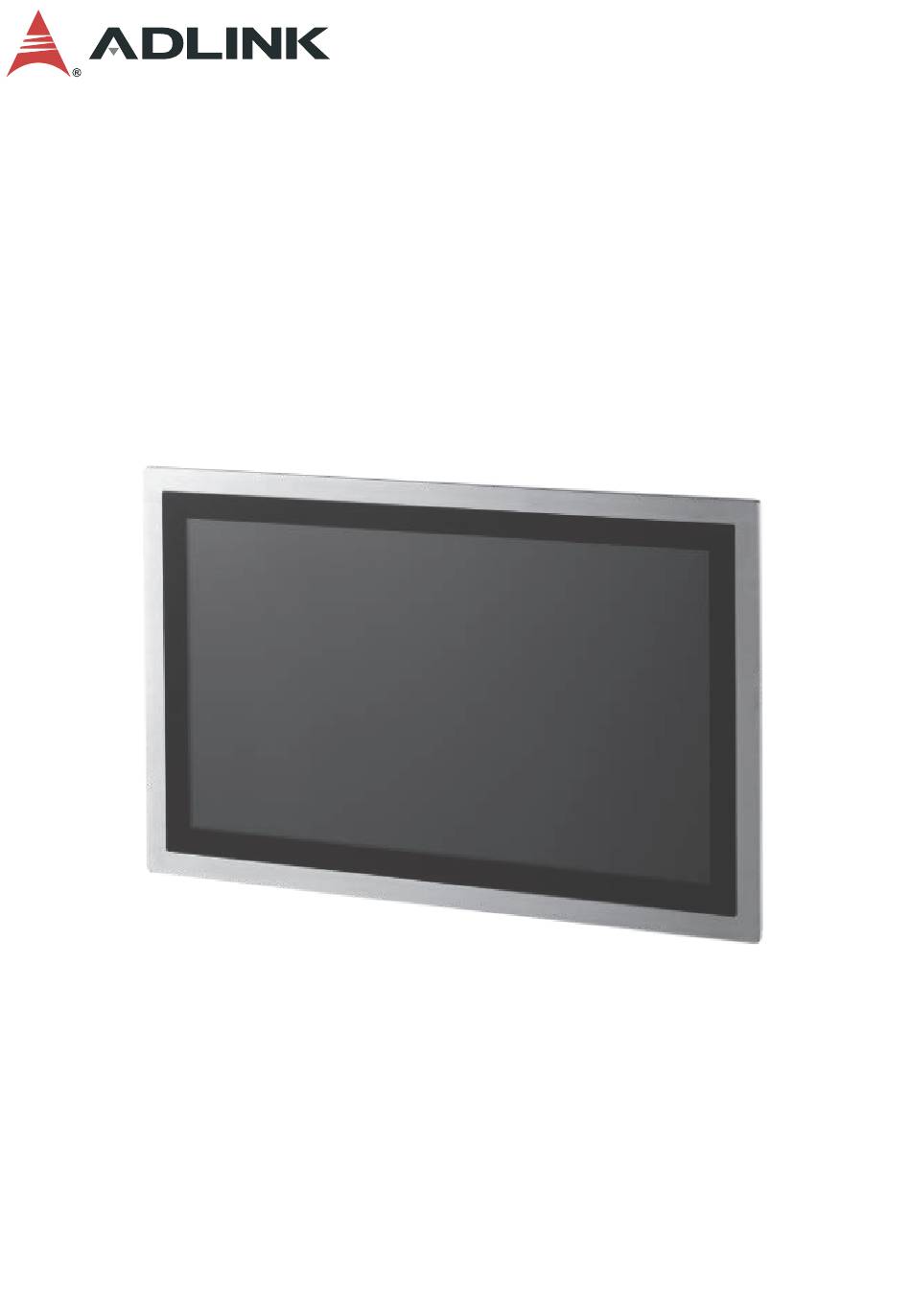

Titan-AL Series
Titan-15WP/21WP/24W-E3950
Rugged Panel Computer
User's Manual
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
1.1
December 6, 2019
50-1Z299-1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan-AL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology Titan-AL Series

Summary of Contents for ADLINK Technology Titan-AL Series

  • Page 1 Titan-AL Series Titan-15WP/21WP/24W-E3950 Rugged Panel Computer User’s Manual Manual Rev.: Revision Date: December 6, 2019 Part No: 50-1Z299-1010 Leading EDGE COMPUTING...
  • Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2019-06-18 Initial Release Update product name, specifications, mechanical drawings; add pipe version 2019-12-06 installation instructions; correct driver installation and BIOS settings...
  • Page 3 Titan-AL Preface Copyright © 2019 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Leading EDGE COMPUTING California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...

  • Page 5: Table Of Contents

    Titan-AL Table of Contents Preface ..................iii List of Tables................ix List of Figures ................ xi 1 Introduction ............... 1 Features................1 Packing List ................. 2 2 Specifications ..............1 General Specifications............1 Mechanical Drawings............3 2.2.1 Titan-15WP-VESA/15WP-PIPE-E3950 ......3 2.2.2 Titan-21WP-VESA/PIPE-E3950 ........
  • Page 6 Leading EDGE COMPUTING Pin Definitions - VESA Mount Version ....... 27 4.1.1 AC Power Input (M12) ..........27 4.1.2 COM Port (M12) ............28 4.1.3 USB 2.0 Ports (M12)............ 29 4.1.4 GbE Ports (M12)............30 Pin Definitions - Pipe Mount Version ......... 31 4.2.1 COM Ports (DB-9) ............
  • Page 7 Titan-AL Security................64 Boot ................... 66 Save & Exit ................ 68 Important Safety Instructions ..........71 Consignes de Sécurité Importantes........73 Getting Service..............75 Table of Contents...
  • Page 8 Leading EDGE COMPUTING This page intentionally left blank. viii Table of Contents...

  • Page 9: List Of Tables

    Titan-AL List of Tables Table 4-1: AC Power Input Pin Definition (M12)......27 Table 4-2: COM Ports Pin Definition (M12) ....... 28 Table 4-3: USB 2.0 Port Pin Definition (M12) ......29 Table 4-4: GbE Port Pin Definition (M12) ........30 Table 4-5: COM Port Pin Definition (DB-9)........
  • Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Tables...

  • Page 11: List Of Figures

    Titan-AL List of Figures Figure 2-1: Titan-15WP Front View ..........3 Figure 2-2: Titan-15WP Side View (Right)........4 Figure 2-3: Titan-15WP-VESA Rear View ........5 Figure 2-4: Titan-15WP-PIPE Rear View........5 Figure 2-5: Titan-21WP Front View ..........6 Figure 2-6: Titan-21WP Side View (Right)........
  • Page 12 Leading EDGE COMPUTING This page intentionally left blank. List of Figures...

  • Page 13: Introduction

    Titan-AL Introduction The IP69K-rated Titan-AL Series of panel computers, based on the Intel Atom® x7-E3950 processor, is designed for use in moni- toring and controlling production processes in industries obligated to meet high hygiene standards. The Titan series features power-...

  • Page 14: Packing List

    Leading EDGE COMPUTING 1.2 Packing List Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing mate- rials for inspection. Obtain authorization from your dealer before returning any product to ADLINK.

  • Page 15: Specifications

    Titan-AL Specifications 2.1 General Specifications Titan-15W-E3950 Titan-21W-E3950 Titan-23W-E3950 Display Size 15.6" 21.5" 23.8" Resolution 1366 x 768 1920 x 1080 1920 x 1080 Brightness (w/o touch) 400 nits Contrast Ratio 500:1 1100:1 1000:1 Viewing Angle (U/D/R/L) 80°/80°/85°/85° 89°/89°/89°/89° 89°/89°/89°/89° Touch screen Projective capacitive sensor Main System Processor...
  • Page 16 Certifications & EN61000-6-2/-4 (EN55011) Compliance UL/CB (62368) + CB (60950) VESA and Pipe Mount Model Names Each size Titan-AL Series panel computer is available in VESA and Pipe Mount versions. The full model names are as below. Mount Type 15.6" 21.5"...

  • Page 17: Mechanical Drawings

    Titan-AL 2.2 Mechanical Drawings All dimensions shown are in millimeters (mm) unless otherwise stated. 2.2.1 Titan-15WP-VESA/15WP-PIPE-E3950 419.0 268.3 Figure 2-1: Titan-15WP Front View Specifications...

  • Page 18: Figure 2-2: Titan-15Wp Side View (Right)

    Leading EDGE COMPUTING Power Button Pressure Balancing Valve 14.5 14.5 59.3 69.5 59.3 15WP-VESA 15WP-PIPE Figure 2-2: Titan-15WP Side View (Right) Specifications...

  • Page 19: Figure 2-3: Titan-15Wp-Vesa Rear View

    Titan-AL 159.5 Figure 2-3: Titan-15WP-VESA Rear View 132.0 Figure 2-4: Titan-15WP-PIPE Rear View Specifications...

  • Page 20: Titan-21Wp-Vesa/Pipe-E3950

    Leading EDGE COMPUTING 2.2.2 Titan-21WP-VESA/PIPE-E3950 561.8 353.3 Figure 2-5: Titan-21WP Front View Specifications...

  • Page 21: Figure 2-6: Titan-21Wp Side View (Right)

    Titan-AL 67.3 Power Button Pressure Balancing Valve 22.3 67.3 22.3 77.6 21WP-VESA 21WP-PIPE Figure 2-6: Titan-21WP Side View (Right) Specifications...

  • Page 22: Figure 2-7: Titan-21Wp-Vesa Rear View

    Leading EDGE COMPUTING 230.9 Figure 2-7: Titan-21WP-VESA Rear View 203.4 Figure 2-8: Titan-21WP-PIPE Rear View Specifications...

  • Page 23: Titan-24Wp-Vesa/Pipe-E3950

    Titan-AL 2.2.3 Titan-24WP-VESA/PIPE-E3950 610.0 379.4 Figure 2-9: Titan-24WP Front View Specifications...

  • Page 24: Figure 2-10: Titan-24Wp Side View (Right)

    Leading EDGE COMPUTING Power Button Pressure Balancing Valve 22.3 22.3 67.3 67.3 77.6 24WP-VESA 24WP-PIPE Figure 2-10: Titan-24WP Side View (Right) Specifications...

  • Page 25: Figure 2-11: Titan-24Wp-Vesa Rear View

    Titan-AL 255.0 Figure 2-11: Titan-24WP-VESA Rear View 227.5 Figure 2-12: Titan-24WP-PIPE Rear View Specifications...

  • Page 26: I/O Connectors - Vesa Mount Version

    Leading EDGE COMPUTING 2.3 I/O Connectors - VESA Mount Version The M12 I/O connectors located on the underside of the Titan-AL VESA mount chassis are as follows. Figure 2-13: VESA Mount External I/O AC power input COM1 port COM2 port GbE1 port GbE2 port USB 2.0 x2...

  • Page 27: I/O Connectors - Pipe Mount Version

    Titan-AL 2.4 I/O Connectors - Pipe Mount Version I/O connectors located in the opening on the rear of the Pipe Mount Titan-AL chassis are as follows. Figure 2-14: Pipe-Mount External I/O A1 COM1 port A2 COM2 port USB 3.0 C1 GbE1 C2 GbE2 USB 2.0 DisplayPort...

  • Page 28: Smart Embedded Management Agent (Sema)

    Leading EDGE COMPUTING 2.5 Smart Embedded Management Agent (SEMA) The SEMA (Smart Embedded Management Agent) utility provides system control and failure protection, by counting, monitoring, and measuring hardware and software events. For more information and operating instructions, please visit https://www.adlinktech.com/Products/Industrial_IoT_and_Cloud _solutions/SEMA_Smart_Embedded_Management_Agent/SEMA Specifications...

  • Page 29: Getting Started

    Titan-AL Getting Started Follow the instructions in this chapter to mount, power up, and install the drivers for the Titan-AL. To ensure correct operation of the device, do not cover the openings on the pressure balancing valve. NOTE: NOTE: 3.1 Mounting Solutions The Titan-AL comes in VESA mount and pipe mount versions.

  • Page 30: Vesa Mounting

    Leading EDGE COMPUTING 3.1.1 VESA Mounting Use the four M4 10mm screws included in the screw pack to mount the panel as shown (recommended torque: 12 to 15 kgf-cm). Figure 3-1: VESA 75 Mounting Figure 3-2: VESA 100 Mounting Getting Started...

  • Page 31: Pipe Mounting

    Titan-AL 3.1.2 Pipe Mounting The Titan-AL pipe mount version requires an optional pipe mount bracket that is customized for the intended application. Please contact your local ADLINK respresentative for more information. Securing the bracket to the panel 1. Connect all required cables to the connectors on the rear of the Pipe Mount Titan-AL chassis (Section 2.4 on page 13).
  • Page 32 Leading EDGE COMPUTING 4. Attach the bracket onto the rubber seal and secure it with the 8 waterproof M4 screws provided. 5. Use a T20 screwdriver to tighten the screws in the criss- cross pattern indicated in the diagram below (note that the bottom center screw is a 7mm hex head due to the reduced clearance available).
  • Page 33 Titan-AL Preparing the mounting surface Prepare the mounting surface for the pipe mount bracket by drill- ing and threading 10 mounting holes (M6 thread), drilling 3 posi- tioning holes (Ø 5.5mm), and making a cut-out (Ø 70mm) for the cables as shown in the diagram below. Units: mm M6 Thread, Thread Depth >...
  • Page 34 Leading EDGE COMPUTING Securing the base to the mounting surface 1. Locate the mounting plate and peel the backing from the adhesive on the bottom. Align the 3 three positioning pins with the holes in the mounting surface and attach the plate with the adhesive side facing down.
  • Page 35 Titan-AL 2. Insert the rubber seal into the bottom of base of the pipe mount bracket with the grooved side facing downwards. Feed the cables from the base of the pipe mount base through the cut-out hole in the mounting surface. . Base Rubber Seal...
  • Page 36 Leading EDGE COMPUTING 4. Use a T30 screwdriver to tighten the screws in the order indicated in the diagram below. It is recommended to tighten the screws to 50 kgf-cm. Getting Started...

  • Page 37: Powering Up

    Titan-AL 3.2 Powering Up 3.2.1 Connect the AC Power Supply Connect the AC power supply to the power input of your model . Refer to Section 2.2 I/O Connectors - VESA Mount Version for the location of the connector on the VESA mount version, and Figure 3-3 below for the Pipe Mount version.

  • Page 38: Driver Installation

    Leading EDGE COMPUTING 3.3 Driver Installation After installing the operating system, all related drivers must be installed for the system to function properly. This section describes the drivers needed for Windows operating systems and the procedures to install them. For other OS support, please contact ADLINK for further information.
  • Page 39 Titan-AL Graphics Driver To install the graphics driver: 1. Close any running applications. 2. From ADLINK's website, download and extract the con- tents of the file Titan-AL_Win10 64bit_Graphics. 3. Execute igxpin.exe and follow onscreen instructions to complete the setup. 4. After installation is complete, reboot the system. Ethernet Driver To install the Ethernet controller driver: 1.

  • Page 40: Sema Utility

    Leading EDGE COMPUTING Audio Driver (Pipe Version only) To install the audio driver: 1. Close any running applications. 2. From ADLINK's website, download and extract the con- tents of the file Titan-AL_Win10 64bit_Audio . 3. Execute Setup.exe and follow onscreen instructions to complete the setup.

  • Page 41: Interfaces

    Titan-AL Interfaces 4.1 Pin Definitions - VESA Mount Version Refer to Section 2.3 I/O Connectors - VESA Mount Version for connector location information. 4.1.1 AC Power Input (M12) Signal Protective Earth Line (L) Neutral (N) Table 4-1: AC Power Input Pin Definition (M12) Interfaces...

  • Page 42: Com Port (M12)

    Leading EDGE COMPUTING 4.1.2 COM Port (M12) COM1/2 ports support RS-232 (default) and RS-422/RS-485 modes, by BIOS setting. Signal RS-232 RS-422 RS-485 DCD# TXD422- 485- TXD422+ 485+ RXD422+ DTR# RXD422- DSR# RTS# CTS# CH_GND CH_GND CH_GND Table 4-2: COM Ports Pin Definition (M12) Interfaces...

  • Page 43: Usb 2.0 Ports (M12)

    Titan-AL 4.1.3 USB 2.0 Ports (M12) Signal USB1_N USB1_P USB2_N USB2_P 9-17 Table 4-3: USB 2.0 Port Pin Definition (M12) Interfaces...

  • Page 44: Gbe Ports (M12)

    Leading EDGE COMPUTING 4.1.4 GbE Ports (M12) 10BASE-T/ 1000BASE-T 100BASE-TX TX0+ TX0- TX1+ — TX2+ — TX2- TX1- — TX3+ — TX3- Table 4-4: GbE Port Pin Definition (M12) Interfaces...

  • Page 45: Pin Definitions - Pipe Mount Version

    Titan-AL 4.2 Pin Definitions - Pipe Mount Version Refer to Section 2.4 I/O Connectors - Pipe Mount Version for con- nector location information. 4.2.1 COM Ports (DB-9) COM1/2 ports support RS-232 (default) and RS-422/RS-485 modes, by BIOS setting. Signal RS-232 RS-422 RS-485 DCD#...

  • Page 46: Usb Ports

    Leading EDGE COMPUTING 4.2.2 USB Ports USB 2.0 (Type A) Pin # Signal Name USB2.0_VBUS Table 4-6: USB 2.0 Pin Definition (Type A) USB 3.0 (Type A) Pin # Signal Name USB3.0_VBUS SSRX- SSRX+ SSTX- SSTX+ Table 4-7: USB 3.0 Pin Definition (Type A) Interfaces...

  • Page 47: Gbe Ports (Rj-45)

    Titan-AL 4.2.3 GbE Ports (RJ-45) 10BASE-T/ Pin # 1000BASE-T 100BASE-TX TX0+ TX0- TX1+ — TX2+ — TX2- TX1- — TX3+ — TX3- Table 4-8: RJ-45 GbE Pin Definition (RJ-45) Speed Activity LED Color Status Description 10 Mbps Speed Green/ Green 100 Mbps (left) Yellow...

  • Page 48: Displayport

    Leading EDGE COMPUTING 4.2.4 DisplayPort One DisplayPort connector supports the DP++ standard specifica- tion, and can connect to VGA, DVI, HDMI, and Display Port moni- tors via DisplayPort to VGA adapter cable, DisplayPort to DVI adapter cable, or DisplayPort to HDMI adapter cable and Display Port cable, with DP1.2 support for resolutions up to 4096 x 2160 at 60Hz.

  • Page 49: Bios Setup

    Titan-AL BIOS Setup The Basic Input/Output System (BIOS) is a program that provides a basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features applied to the Titan-AL. The BIOS setup program includes menus for configuring settings and enabling features of the Titan-AL.

  • Page 50: Main

    Leading EDGE COMPUTING 5.1 Main Contains basic system information for the rugged panel computer. BIOS Information Shows vendor, version, build date, MRC Version, GOP Version, and TXE FW Version for active BIOS. System Information Shows current system project name, hardware version, CPU brand string, CPU frequency, total memory, memory frequency and PCH SKU.
  • Page 51 Titan-AL System Time/System Date Allows adjustment of system time and date, as follows: 1. Highlight System Time or System Date using the up and down keys 2. Enter new values using the keyboard and <Tab> to move between fields The time is in 24-hour format, for example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M.

  • Page 52: Board Information

    Leading EDGE COMPUTING 5.1.1 Board Information Displays serial number, manufacturing date, last repair date, and MAC address for the installed board. Runtime Statistics Displays total runtime, current runtime, power cycles, boot cycles, and boot reason for the system.

  • Page 53: Advanced

    Titan-AL 5.2 Advanced This menu accesses advanced options for the device. Setting incorrect or conflicting values in Advanced BIOS Setup may cause system malfunction. Le réglage de valeurs incorrectes ou conflictuelles dans la con- CAUTION: figuration avancée du BIOS peut entraîner un dysfonc- tionnement du système.

  • Page 54: Cpu Configuration

    Leading EDGE COMPUTING 5.2.1 CPU Configuration EIST Enables/disables Intel SpeedStep. Turbo Mode Enables/disables Turbo mode. Intel Virtualization Technology When enabled, VMM can utilize the additional hardware capabili- ties provided by Vanderpool Technology. C-States Enhanced C-state Enables/disables C1E, where, when enabled, CPU will switch to minimum speed when all cores enter CStates.

  • Page 55: Graphics Configuration

    Titan-AL Max Package C State Sets the Max Package C State supported by the processor, from among PC2, PC1, and C0. Max Core C State Sets the Max Core C State supported by the cores, from among Fused value, Core C10, Core C9, and Core C8, C-State Auto Demotion Configures C-State Auto Demotion.
  • Page 56 Leading EDGE COMPUTING Data Formation and Color Depth Selects data format and color depth, from among Auto, VESA 24 bpp, JEIDA 24 bpp, and JEIDA/vesa 18 bpp LVDS Output Mode Selects single/dual mode DE Polarity Selects active High/Active Low DE polarity Vsync Polarity Selects Active High/Active Low Vsync polarity Hsync Polarity...

  • Page 57: Power Management

    Titan-AL 5.2.3 Power Management Enable ACPI Auto Configuration Enables/disables BIOS ACPI Auto Configuration. Enable Hibernation Enables/disables hibernation (OS/S4 Sleep State), incompatible with some OS. ACPI Sleep State Selects the highest ACPI sleep state the system will enter when SUSPEND is entered. Lock Legacy Resources Enables/disables Legacy Resources.
  • Page 58 Leading EDGE COMPUTING mPCIe Slot Wake Enables/disables PCI Express slot wake capability. LAN Wake Enables/disables onboard LAN wake capability. RTC Wake system from S5 Enables/disables system wake on alarm event, from among Fixed Time: system wakes on the hr::min::sec specified Dynamic Time: system wakes on the current time + increase in minutes Emulation AT/ATX...
  • Page 59 Titan-AL Power Consumption Power consumption information...

  • Page 60: System Management

    Leading EDGE COMPUTING 5.2.4 System Management Displays BMC and SEMA version and build date. SEMA Features Refer to SEMA documentation for detailed operation Flags Displays BMC flag...

  • Page 61: Thermal Management

    Titan-AL 5.2.5 Thermal Management Displays CPU and board temperatures. Critical Trip Point Temperature threshold of critical trip point. Passive Cooling Trip Point Temperature threshold of passive cooling trip point.

  • Page 62: Watchdog Timer

    Leading EDGE COMPUTING 5.2.6 Watchdog Timer Power-Up Watchdog Enables/disables Power Up watchdog, which, when enabled, resets the system a certain amount of time after power up. Press- ing F12 during startup disables the power up watchdog. RunTime Watchdog Enables/disables RunTime watchdog, which, when enabled, resets the system a certain amount of time after power up.

  • Page 63: Super Io Configuration

    Titan-AL 5.2.7 Super IO Configuration Enables/disables the serial port and sets the serial port mode to RS-232, RS-422 or RS-485.

  • Page 64: Serial Console Redirection

    Leading EDGE COMPUTING 5.2.8 Serial Console Redirection Enables/disables serial port console redirection.

  • Page 65: Network Stack Configuration

    Titan-AL 5.2.9 Network Stack Configuration Enables/disables UEFI network stack.

  • Page 66: Trusted Computing

    Leading EDGE COMPUTING 5.2.10 Trusted Computing Enables/disables BIOS support for security device, when disabled, OS will not show the security device, and TCG EFI protocol and INT1A interface will not be available.

  • Page 67: Usb Configuration

    Titan-AL 5.2.11 USB Configuration XHCI Hand-off Enables/disables XHCI hand-off, as a workaround for OS with no XHCI hand-off support, where XHCI ownership change should be claimed by XHCI driver. USB Mass Storage Driver Support Enables/disables mass storage driver support. USB transfer time-out Time-out value for control, bulk, and interrupt transfers.

  • Page 68: Intel I211 Gigabit Network Connection

    Leading EDGE COMPUTING Device power-up delay Maximum time the device will take before properly reporting itself to the Hot Controller, with ‘Auto’ using default value, for a Root port 100 ms, and for a Hub port the delay is taken from the Hub descriptor.
  • Page 69 Titan-AL NIC Configuration Link Speed Specifies the port speed used for the selected boot protocol. Wake On Lan Enables the server to be powered on using an in-band magic packet. Blink LEDs Identifies the physical network port by blinking the associated LED.

  • Page 70: Chipset

    Leading EDGE COMPUTING 5.3 Chipset...

  • Page 71: North Bridge

    Titan-AL 5.3.1 North Bridge Displays memory information, sets maximum value for TOLUID and enables/disables BIOS assignment and PCIe VGA work- around.

  • Page 72: South Bridge

    Leading EDGE COMPUTING 5.3.2 South Bridge Sets IRQ mode and enables/disables SMBUs and PCI clock run.

  • Page 73: Uncore Configuration

    Titan-AL 5.3.3 Uncore Configuration Enables/disables Integrated Graphic Device and RC6 (Render Standby), sets size for GTT, aperture size, DVMT pre-allocation, DVMT total Gfx Mem and CD clock frequency.

  • Page 74: South Cluster Configuration

    Leading EDGE COMPUTING 5.3.4 South Cluster Configuration HD-Audio Configuration HD-Audio Support Enables/disables HDA Audio Audio Output Selection Selects audio output, from speaker out or line out. LPSS Configuration Selects I2C support mode. PCI Express Configuration Enables/disables PCI Express clock gating, Port8xh Decode, Peer Memory Write and Compliance mode, and configures PCI Express Root Port.
  • Page 75 Titan-AL SATA Drives Enables/disables Chipset SATA Controller, which supports the 2 black internal SATA ports (up to 3Gb/s supported per port), and configures SATA. SCC Configuration Enables/disables SCC eMMC support and selects eMMC max speed. USB Configuration XHCI Pre-boot Driver Enables/disables XHCI pre-boot driver support.
  • Page 76 Leading EDGE COMPUTING USB HIC1 Support Enables/disables USB HIC1 support. USB SSIC1 Support Enables/disables USB SSIC1 support. USB Port Disable Override Enables USB disable override. XDCI Support Enables/disables XDCI support. XHCI Disable Compliance Mode Selects XHCI Disable Compliance Mode. USB HW Mode AFE Comparators Enables/disables mode AFE comparators.
  • Page 77 Titan-AL Miscellaneous Configuration State After G3 Specifies the state to be entered when power is re-applied after a power failure (G3 state), from S0 state, in which the system boots directly when power is applied, and S5 state, in which the system remains powered down until the power button is pressed.

  • Page 78: Security

    Leading EDGE COMPUTING 5.4 Security If only the Administrator password is set, access is limited and password requested on Setup. If User password is set, it acts as power-on password and must be entered to boot or enter Setup. Administrator Password Sets Administrator Password.
  • Page 79 Titan-AL Secure Boot Menu Secure Boot Control Can be enabled if running in User mode with enrolled Platform Key (PK) and CSM disabled. HDD Security Configuration Configures HDD security...

  • Page 80: Boot

    Leading EDGE COMPUTING 5.5 Boot Setup Prompt Timeout Sets the number of seconds before the setup activation key is launched, with 65535(0xFFFF) for indefinite wait. Bootup Num-Lock State Sets keypad Number Lock status following boot. Quiet Boot When disabled, directs BIOS to display POST messages, and when enabled, directs BIOS to display the OEM logo.
  • Page 81 Titan-AL Boot Configuration Specifies the priority of boot devices, all of which are detected dur- ing POST and displayed. Target Boot Option # and select the desired device. UEFI Hard Disk Drive BBS Priorities Sets the system boot order. UEFI USB Key Drive BBS Priorities Sets the system boot order.

  • Page 82: Save & Exit

    Leading EDGE COMPUTING 5.6 Save & Exit Save Changes and Exit Exits system setup after saving changes. Discard Changes and Exit Discards all changes and exits BIOS setup. Save Changes and Reset Saves all changes and reboots the system, with new settings tak- ing effect.
  • Page 83 Titan-AL Save Changes Saves changes made so far to any of the Setup options. Discard Changes Discards changes made so far to any of the Setup options. Restore Defaults Returns all BIOS options to default settings, maximizing system stability at less than maximum performance. Select if the computer encounters system configuration problems.
  • Page 84 Leading EDGE COMPUTING This page intentionally left blank.

  • Page 85: Important Safety Instructions

    Titan-AL Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. Read these safety instructions carefully Keep the User’s Manual for future reference Read the Specifications section of this manual for detailed information on the recommended operating environment...
  • Page 86 Leading EDGE COMPUTING A Lithium-type battery may be provided for uninterrupted backup or emergency power Ensure that the device connects to a socket/outlet with ground/earth connection.. Risk of explosion if battery is replaced with one of an incorrect type; please dispose of used batteries appropriately. Risque d’explosion si la pile est remplacée par une autre de CAUTION: type incorrect.

  • Page 87: Consignes De Sécurité Importantes

    Titan-AL Consignes de Sécurité Importantes S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil, pour éviter des blessures ou des dommages.Avant de connecter le Titan-AL à une source de courant continu, veuillez vous assurer de la polarité de la tension conformément à...
  • Page 88 Leading EDGE COMPUTING Fixez le cordon d'alimentation (ne placez aucun objet sur le cordon d'alimentation) Installez/fixez et utilisez l'appareil uniquement sur des surfaces stables et/ou sur les fixations recommandées L'équipement doit être connecté à une prise de courant avec mise à la terre Si l'appareil ne doit pas être utilisé...

  • Page 89: Getting Service
