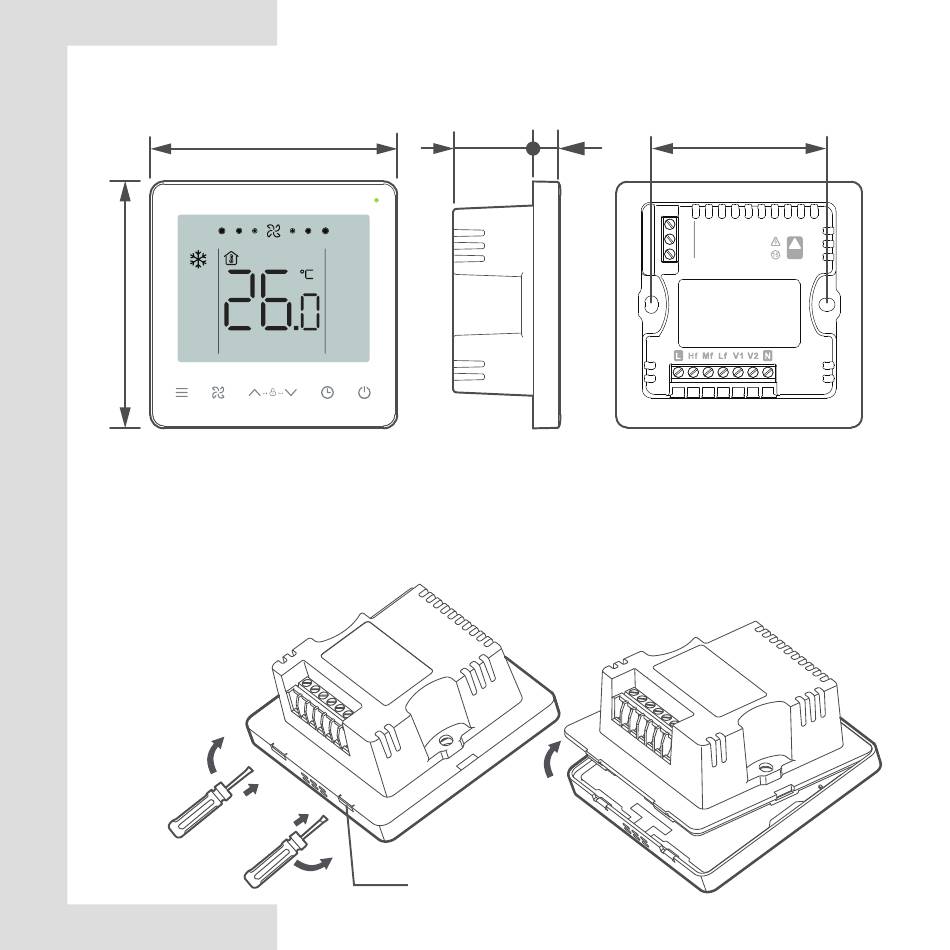

11.3 Product Dimensions (mm)
86
86
11.4 Installation Method
1. Remove rear cover of the wired controller: insert a slotted-head screwdriver into the
bottom buckle of the wired controller, and rotate in the direction indicated to remove the
rear cover. Remove the flat cable connecting the front and rear PCBs and remove the
front cover of the wired controller.
Screwdriver
rotation
direction
Slotted
screwdriver
28 9
Buckle
15
Mounting hole: 60
X A
Y B
E GND UP
