- Page 1 USER'S MANUAL WIRED CONTROLLER XK19...
- Page 2 “Original instructions” IMPORTANT NOTE: Read this manual ca r efully befo r e installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
- Page 3 User Notice ◆ Never install the wired controller in the moist circumstance or expose it directly under the sunlight. ◆ Never beat, throw, and frequently disassemble the wired controller. ◆ Never operate the wired controller and the remote controller with wet hands. Please read the manual carefully before using and installing this product.
-
Page 4: Table Of Contents
Contents Ⅰ Wired Controller XK19 ................1 1 Wired Controller XK19 ..................1 1.1 Outside View of the Wired Controller ............1 1.2 LCD of the Wired Controller ................ 1 1.3 Introduction to the Symbols on LCD ............2 2 Buttons ......................... 2 2.1 Buttons on the Wired Controller .............. -
Page 5: Ⅰ Wired Controller Xk19

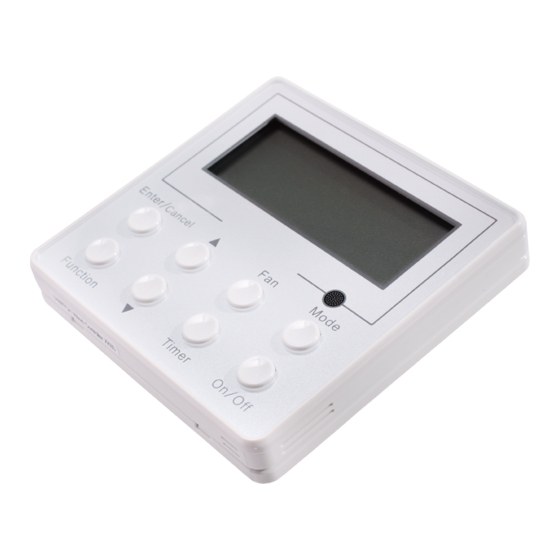

Wired Controller XK19 Ⅰ Wired Controller XK19 1 Wired Controller XK19 It is optional for the cassette type, wall-mounted, and floor ceiling indoor units. 1.1 Outside View of the Wired Controller Fig.1 Outside View of the Wired Controller 1.2 LCD of the Wired Controller... -
Page 6: Introduction To The Symbols On Lcd
Wired Controller XK19 1.3 Introduction to the Symbols on LCD Table 1 Symbols Description Swing function. Sleep function (3 types: sleep 1,sleep2 and sleep 3). Running modes of the indoor unit (Cooling, Dry, Fan and Heating). Defrosting function for the outdoor unit. -
Page 7: Function Of The Buttons
Wired Controller XK19 2.2 Function of the Buttons Table 2 Name Function ① Function selection and cancellation. Enter/cancel ② Press it for 5s to examine the outdoor ambient temperature. ① Running temperature setting of the indoor unit, range:16 ～ 30℃ . - Page 8 Wired Remote Controller XK19 Under OFF state, the Celsius and Fahrenheit scales can be switched by Mode+▼ pressing “Mode” and “▼” for five seconds. Under OFF state, it is available to go to the commissioning status by pressing “Function” and “Timer” for five seconds, and let “00” displayed on the temperature display area by pressing “Mode”, then adjust the options...
-
Page 9: Temperature Setting
Wired Controller XK19 3.3 Temperature Setting Press ▲or ▼ to increase/decrease the preset temperature. If press either of them continuously, the temperature will be increased or decreased by 1 ℃ every 0.5s , as shown in Fig.6. In the Cooling, Dry or Heating mode, the temperature setting range is 16 ℃～ 30 ℃ . -
Page 10: Swing Setting
Wired Controller XK19 Timer off setting under the “On” state of the unit is shown as Fig.8. Fig. 8 Timer off Setting under the “On” State of the Unit Timer range: 0.5-24hr. Every press of ▲or ▼ will make the set time increased or decreased by 0.5hr. If either of them is pressed continuously, the set time will increase/ decrease by 0.5hr every 0.5s. -
Page 11: Sleep Setting
Wired Controller XK19 Fig. 9 Swing Setting Note: Sleep, Save, Turbo, Blow or Quiet setting is the same as the Swing setting. ① . After the setting has been done, it has to press the key “Enter/cancel” to back to the setting status or ②... - Page 12 Wired Controller XK19 Fig. 10 Sleep Setting Sleep off is default after power failure and then power recovery, and the sleep functions is unavailable under the fan mode. There are three Sleep modes: Sleep 1, Sleep 2 and Sleep 3.
- Page 13 Wired Controller XK19 / （ ℃ ） Time/（Hr） Fig.11 Sleep Curve of Sleep 2 in Cooling Mode In the Heating mode, the temperature may be set at 16 ℃ or between 17 ℃ - 20 ℃ , 21 ℃ -27 ℃ or 28 ℃ - 30 ℃...
-
Page 14: Turbo Setting
Wired Controller XK19 For example, the temperature in the Heating mode is set at 22 ℃ .Under the mode of Sleep2, the temperature will decrease by 1 ℃ every 1hr. After it decreases by 2 ℃ in total, i.e. 20 ℃ ,the unit will keep running at 20 ℃... -
Page 15: Save Setting
Wired Controller XK19 When the Turbo function is activated, press Function to enter the Turbo setting interface and then press Enter/Cancel to cancel this function. Turbo function setting is as shown in Fig.14. Fig.14 Turbo Setting Notes: When the Turbo function is activated, if the difference between the room temperature and set ①... - Page 16 Wired Controller XK19 Fig. 15 Saving Setting for Cooling Save Setting for Heating: Under on state or in the Heating mode of the unit, press Function to enter the Save setting interface and then press ▲or ▼ to adjust upper limited value in the Heating mode. After that, press Enter/Cancel to activate the Save function for heating.
-
Page 17: E-Heater Setting
Wired Controller XK19 Fig.16 Save Setting for Heating Notes: If press Function on the Save setting interface or if there is not any operation for 5s after last button ① . press, the Save setting will be canceled automatically by the system, with memorizing the present setting data. -
Page 18: Blow Setting
Wired Controller XK19 Fig.17 E-heater Setting 3.11 Blow Setting Blow function: After the unit is turned off, the water in evaporator of indoor unit will be automatically evaporated to avoid mildew. In the Cooling or Dry mode, press Function till the unit enters the Blow setting interface and then press Enter/Cancel to active this function. -
Page 19: Quiet Setting
Wired Controller XK19 Fig.18 Blow Setting Notes: When the Blow function is activated, if turning off the unit by pressing On/Off or by the remote ① . controller, the indoor fan will run at the low fan speed for 10 min, with “BLOW” displayed on the LCD. -
Page 20: Other Functions
Wired Controller XK19 Fig.19 Quiet Setting Notes: When the Quite function is activated, the fan speed is low and un-adjustable. ① . When the Auto Quite function is activated, the unit will run according to the difference between the ② . -
Page 21: Errors
Wired Controller XK19 Memory recovery: If this function has been set for the wired controller, the wired controller after power failure will resume its original running state upon power recovery. Memory contents: On/Off, Mode, set temperature, set fan speed, Save function and Lock function. - Page 22 Wired Remote Controller XK19 (3). Selection of the Temperature Sensor Under OFF state of the unit, press both “Function” and “Timer” for five seconds to go the commissioning status. Under this status, adjust the display in the temperature display area to “00”...
- Page 23 Wired Controller XK19 Table 3 Meaning of Each Error Error Error Code High pressure protection Low pressure protection Discharge protection Over-current protection Communication error Indoor water overflow protection Mode conflict Anti-freezing protection Defrosting or oil returning for heating Indoor ambient temperature sensor open/short circuit...
- Page 24 Wired Remote Controller XK19 Table 4 Meaning of Each Error Error Error Error Error Code Code Return air temperature sensor open/short Drive board communication error circuited evaporator temperature sensor open/short Compressor overheating protection circuited Indoor unit liquid valve temperature sensor...
- Page 25 Wired Remote Controller XK19 4 Installation and Dismantlement 4.1 Connection of the Signal Line of the Wired Remote Controller ● Open the cover of the electric control box of the indoor unit. ● Let the single line of the wired remote controller through the rubber ring.
- Page 26 SINCLAIR CORPORATION Ltd. 1-4 Argyll St. London W1F 7LD Great Britain www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE SINCLAIR EUROPE spol. s r.o. Purkynova 45 612 00 Brno Czech Republic TECHNICAL SUPPORT NEPA spol. s r.o. Purkynova 45...
