Installation Sheet
FSA10-41-DIN
148-174 MHz

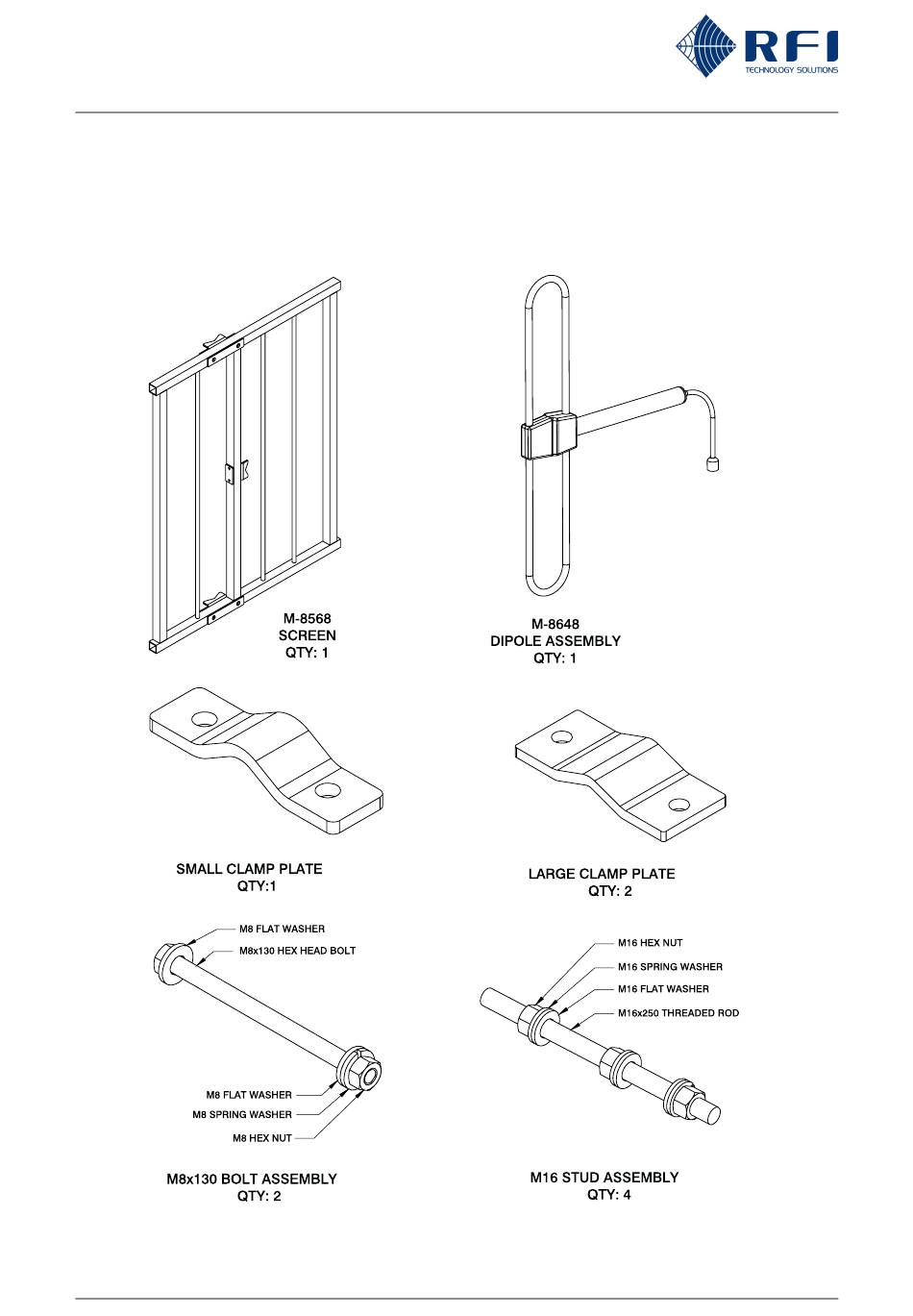

COMPONENTS

Assembly Instructions

Before assembling your antenna please ensure that all the components below are included in the kit.
Copyright RF Industries Pty Ltd 2018. Subject to change without notice.
INS 41079-3
1
rfiwireless.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSA10-41-DIN and is the answer not in the manual?

Questions and answers

Summary of Contents for RFI FSA10-41-DIN

  • Page 1 Installation Sheet FSA10-41-DIN 148-174 MHz COMPONENTS Assembly Instructions Before assembling your antenna please ensure that all the components below are included in the kit. Copyright RF Industries Pty Ltd 2018. Subject to change without notice. INS 41079-3 rfiwireless.com.au...
  • Page 2 Installation Sheet FSA10-41-DIN 148-174 MHz STEP 1 ASSEMBLE THE DIPOLE TO THE SCREEN AS DEPICTED BELOW ENSURING THE DIPLOLE TO SCREEN SPACING IS SET CORRECTLY AND THE DRAIN HOLE IS FACING DOWNWARDS. NOTE: VSWR TESTS SHOULD ONLY BE PERFORMED ONCE DIPOLE AND SCREEN ARE FULLY ASSEMBLED.
  • Page 3 Installation Sheet FSA10-41-DIN 148-174 MHz STEP 2 WITH THE ANTENNA ASSEMBLY LOCATED ON THE MOUNTING TUBE ATTACH THE 2 LARGE CLAMP PLATES AND TIGHTEN THE M16 NUTS CLAMPING THE ANTENNA ASSEMBLY TO THE MOUNTING TUBE. TIGHTEN TO 70Nm (50 lbf.ft) Copyright RF Industries Pty Ltd 2018.
  • Page 4 Installation Sheet FSA10-41-DIN 148-174 MHz Copyright RF Industries Pty Ltd 2018. Subject to change without notice. INS 41079-3 rfiwireless.com.au...
