RFI LTE-XPOL-002 Installation

Lte mimo directional panel antenna

INSTALLATION

LTE MIMO Directional Panel Antenna

LTE-XPOL-002

650-960 / 1710-2170 / 2500-2700 MHz

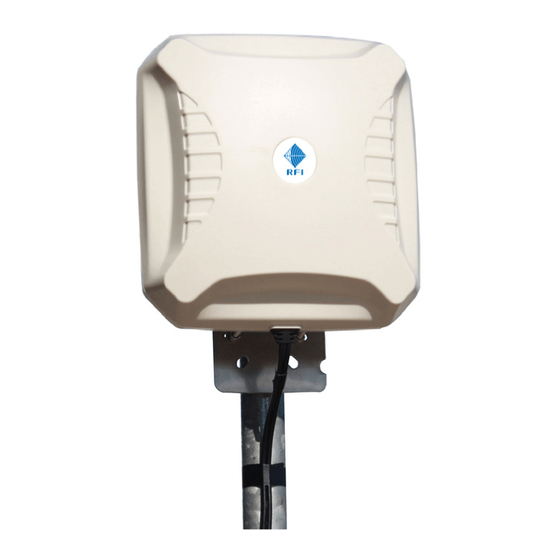

Thank you for purchasing this RFI antenna. This antenna provides an innovative and future proof solution for 4G / 3G and 2G

networks. It incorporates two separately fed ultra wideband elements in a single housing which provide Multiple Input/Multiple

Output (MIMO) for the networks of today and tomorrow.

The weatherproof housing is designed for pole or wall mounting and comes with dual 10m low loss cables (LMR195) terminated

with SMA male connectors.

CHECK COMPONENTS IN THE ANTENNA PACKAGE

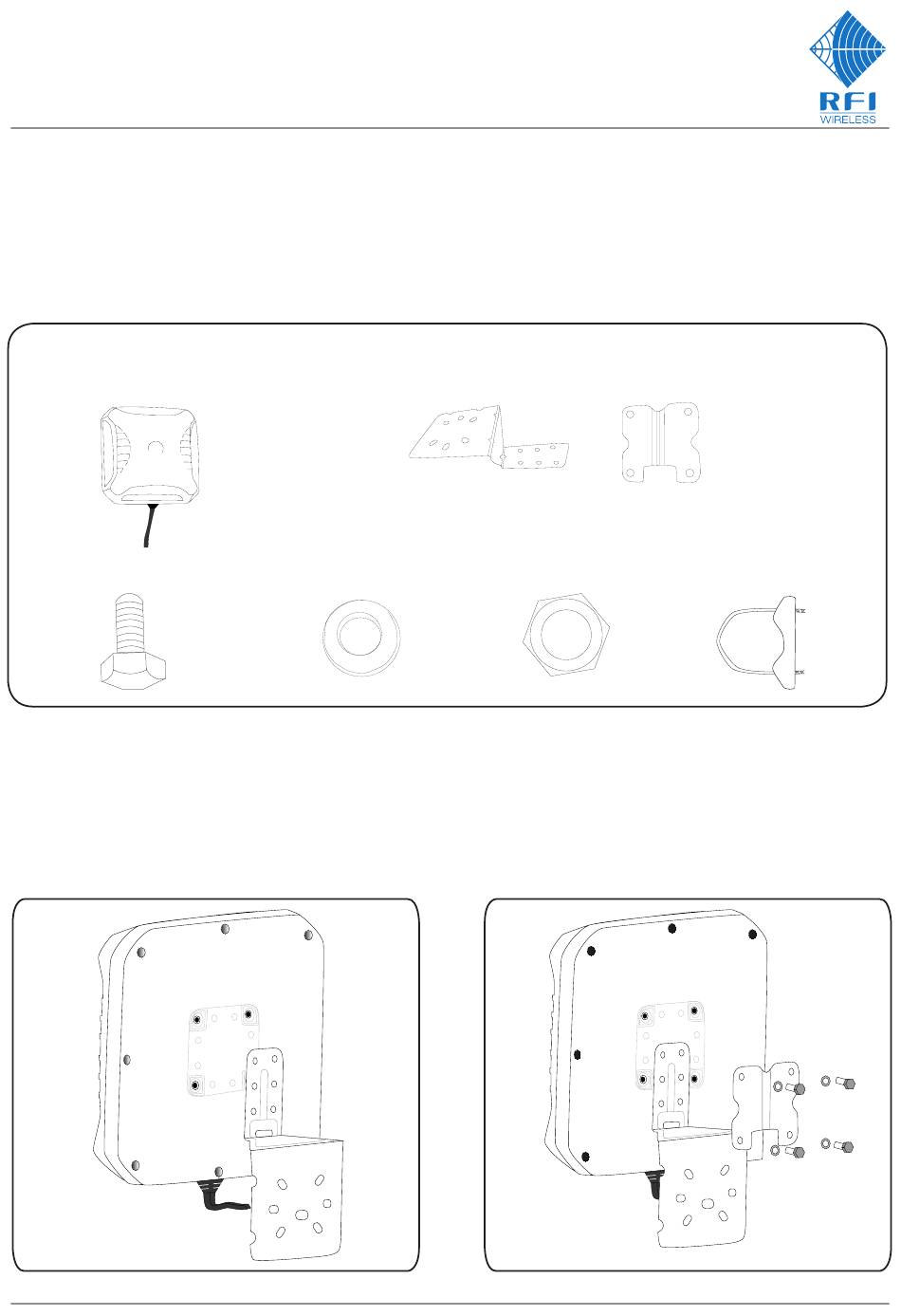

Before assembling and installing your antenna, please check your installation kit includes all the following components.

1 x LTE-XPOL-002 antenna with dual

10m low loss cables terminated with

SMA male connectors

4 x M6 x 12mm bolts

To get optimum performance from this antenna, it should be mounted as high as possible clear of any obstructions. The antenna

is supplied with a pole/wall mount bracket which will fit a 20-50mm pole

1.) Position the pole bracket against the back of the antenna,

locating the 2 middle holes over the 2 lugs.

INS-41325-1

6 x M6 washers

1 x Pole bracket with back plate

2 x M6 Nuts

2.) Place the antenna back plate over the pole mounting

bracket and attach using the 4 x M6 x 12mm bolts & washers.

1 x M6 x 60mm U-bolt

rfiwireless.com
