RFI Mopole CD63-71-73 Series Installation

Installation
CD63-71-73 Series
UH. Citizens Band Antenna Kit

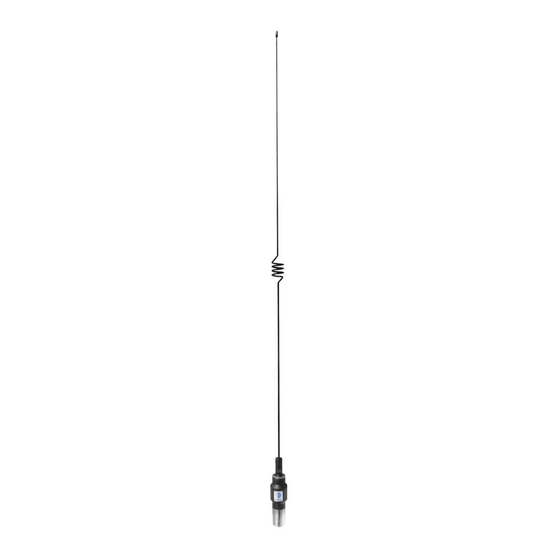

Congratulations! You have purchased a CD63-71-73 series
Mopole antenna from R. Industries. The CD63 series
TM
antennas have true ground independence and allows mounting
in a vairety of positons including vehicle mirror, gutter or roof
bar mounts.
• Excellent performance - Exhibits 6.0dB gain over a
1/4 wave whip mounted in the centre of a metal roof
• .lexible - The whip section is made with the strongest,
most resilient form of stainless steel and returns to its
original state after bending or deformity
• Rugged - The base coil is housed in a high impact
thermoplastic moulding and is practically indestructible
• Versatile - Ground plane independent design allows
installation in almost any location
• Stylish - Attractive black finish, complements vehicle
styling
• Unique - Australian Patent # 596830
SPECI.ICATIONS
CD63-71-73 Stud Nut Assembly, 5.0m RG58
CD63-71-73U Stud Nut Assembly, 5.0m RG58 , UH.-104
connector
.
requency 475-478MHz UH. Citizens Band Radio Service
Gain 6.0 dB (over a 1.4 wave whip mounted in the
centre of metal roof)
VSWR Less than 1.5:1 over specified band
Length 780mm (whip and coil only)
Tuning The antenna is supplied pre-tuned
Mounting Base mounts in 16mm or 8.5mm hole
Every unit sold by R. Industries Pty Ltd (the Seller) is warranted to be free from defects in materials and workmanship under normal use
and service for a period of twelve months from the date of sale. This warranty covers defective parts and workmanship provided that the
defective parts shall be shipped pre-paid to any office of the Seller within twelve months of purchase of goods. The warranty is limited
to the repair or replacement (at the Seller’s option) of parts and shipping prepaid to the original despatch destination. We regret that no
liability can be accepted for consequential or special damages of any kind howsoever arising in connection with products supplied by the
Seller. This warranty is in lieu of all other warranties expressed or implied. No representation is authorised to assume for the Sellers any
other liability in connection with the Seller’s products.
Doc Ref:INS-36726-2
GM7 Plastic
Gutter Mount
WARRANTY
1
475-478MHz
Suggested Mounting
MM2
GM2
Mirror Mount
Metal Guttermount
Aust. Patent No.596830
© 2000 R . Industries Pty Ltd
