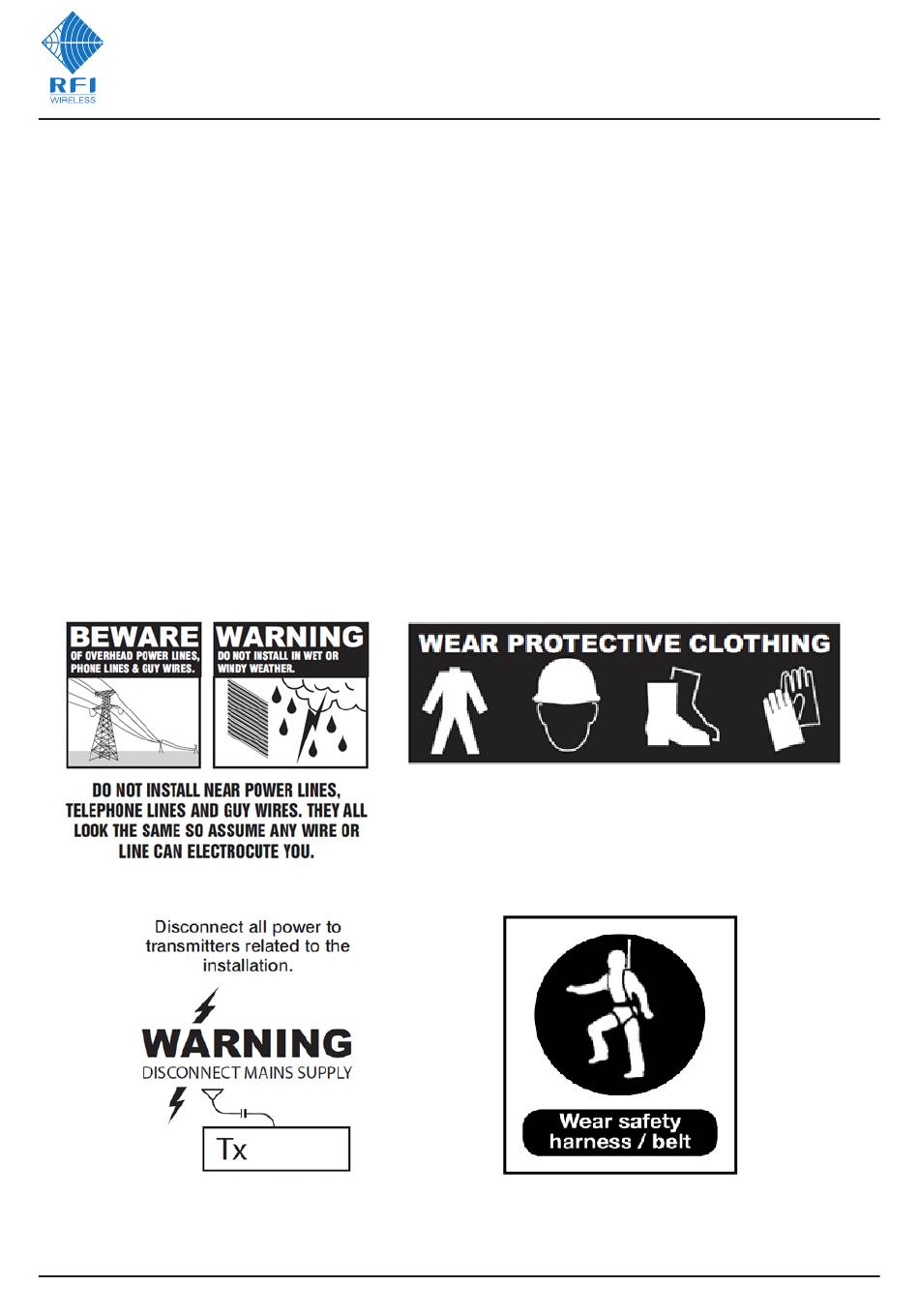

- Page 1 Crossed Polarized Yagi Antenna INSTALLATION GUIDE MODELS: YCP4047-11 & YCP4047-13 Please Ensure, SAFETY AT ALL TIMES INS-41540-1 rfiwireless.com.au...
- Page 2 Tools and Equipment that may be required. Spanner / Shifter Torque wrench Electrical tape to suit M8 & M10 Hex head Sealing tape Any QUESTIONS contact your RFI representative. Open antenna package and inspect antenna for transport damage before removing from package. INS-41540-1 rfiwireless.com.au...
-
Page 3: Assembly Instruction
(to fit the dipole to the Yagi frame) 1x Pole Mounting Bracket Kit 2 or 3x M8x20 Hex S/S Boom Attachment Screw Sets (screw, spring washer and flat washer) 2 for YCP4047-11 Note: 3 for YCP4047-13 1x Brace Kit for YCP4047-13 4x Cable Tie ASSEMBLY INSTRUCTION 1.) Cut transit cable ties to separate vertical and horizontal polarized booms. - Page 4 2.) Use M8x20 Hex S/S screw sets (2 for YCP4047-11, 3 for YCP4047-13) to attach the vertical polarized boom onto the horizontal polarized boom. Torque these screw sets to 8Nm. YCP4047-11 Vertical Polarized Boom Horizontal Polarized Vertical Dipole Boom Mounting Position...
- Page 5 3.) Use one M8x35 Socket head S/S cap screw to fix the dipole to the vertical polarized Yagi boom, hand tighten. 4.) Fit the square Yagi boom to the mounting bracket. IMPORTANT: MUST NOT APPLY BIRD PROOFING BRAID OVER DIPOLE CABLES. NOTE the alignment of coiled cable to the pole mounting bracket.
- Page 6 5.)Torque the dipoles to the Yagi boom to 5Nm. 6.) Torque the nuts at the back of mounting brackets to 8Nm. INS-41540-1 rfiwireless.com.au...
- Page 7 7.) IMPORTANT: Route one dipole cable under the Yagi boom. Cable Tie Holes 7.1) Ensure 4 cable ties are used and snuggled up firmly. Dipole Cable INS-41540-1 rfiwireless.com.au...
- Page 8 8.) Connect your feeder cables to N type connectors and weatherproof the connection. HORIZONTAL VERTICAL Wrap the butyl rubber tape HORIZONTAL (or equivalent) around the calbe, stretching it to approximately 80% (almost double) its original length. VERTICAL We recommend using two HORIZONTAL layers of butyl rubber tape (or equivalent) then over...
- Page 9 9.) Mount the assembled Yagi antenna and mounting bracket to the mounting pole. Mounting Pole 10.) For YCP4047-13 only, fit the brace rod to Yagi boom and mounting pole. Mounting Pole Brace Rod INS-41540-1 rfiwireless.com.au...
