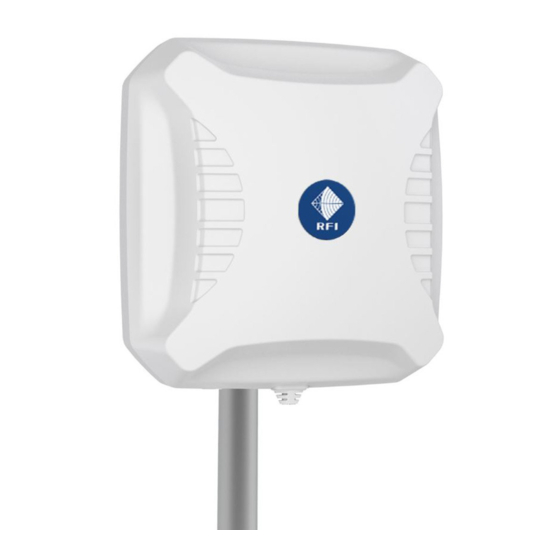

RFI LTE-XPOL-002-5G Series Quick Start Manual

5G MIMO Directional Panel Antenna
698-3800 MHz
LTE-XPOL-002-5G Series
Thank you for purchasing this RFI antenna. This antenna provides an innovative and future proof solution for 5G / 4G / 3G
and 2G networks. It incorporates two separately fed ultra wideband elements in a single housing which provide Multiple Input/
Multiple Output (MIMO) for the networks of today and tomorrow.
The weatherproof housing is designed for pole or wall mounting and comes in two versions:
- LTE-XPOL-002-5G: Comes we dual 10m low loss cable (LMR195) terminated with SMA male connectors
- LTE-XPOL-002-5G-NF: Comes with 2 x integrated N female connector mounted in the rear of the radome. This configuration
allows for custom cable installation.

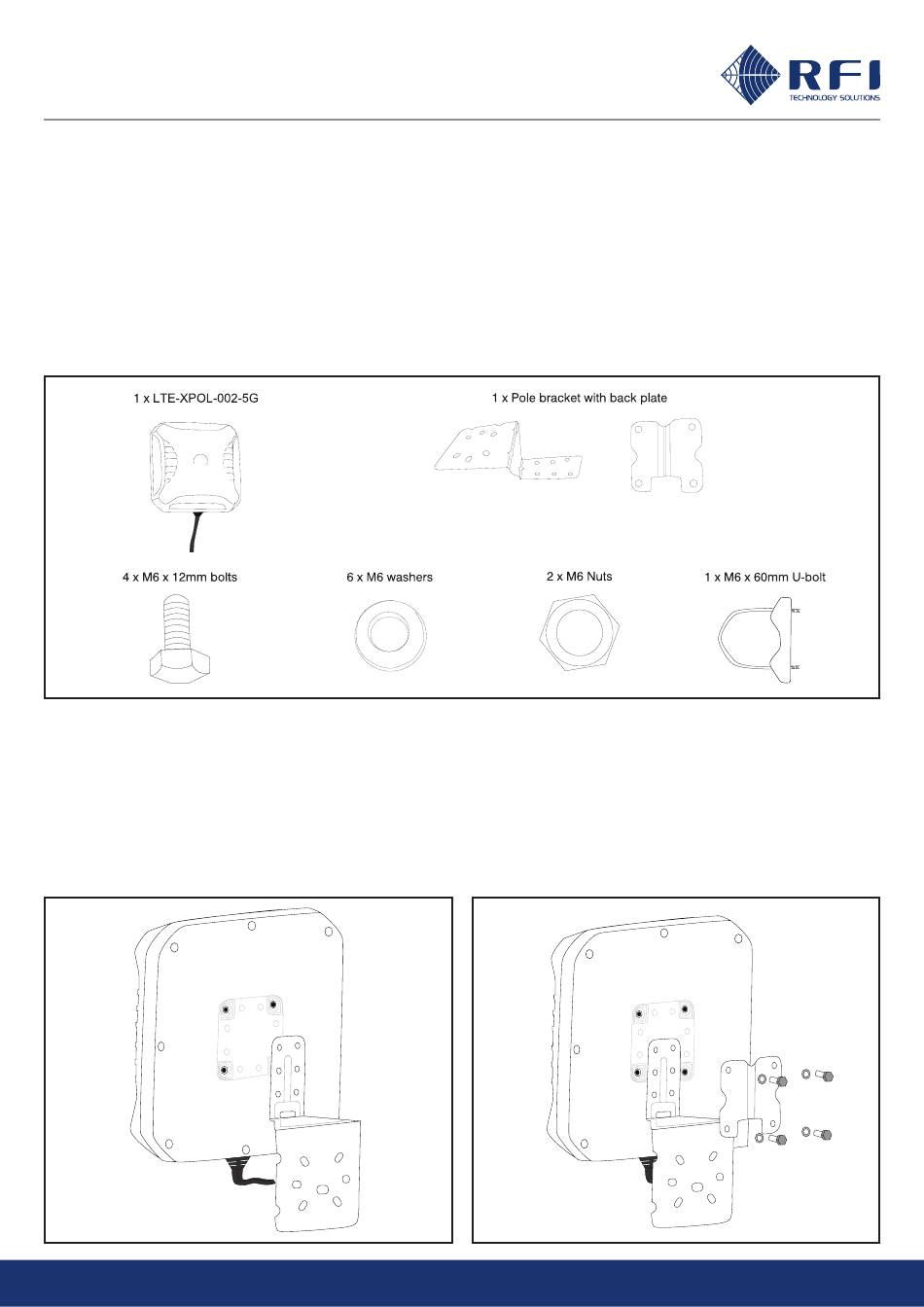

CHECK COMPONENTS IN THE ANTENNA PACKAGE

Before assembling and installing your antenna, please check your installation kit includes all the following components.

INSTALLING THE ANTENNA

To get optimum performance from this antenna, it should be mounted as high as possible clear of any obstructions. The
antenna is supplied with a pole/wall mount bracket which will fit a 20-50mm pole.

Pole Mounting

1. Position the pole bracket against the back of the antenna,
locating the 2 middle holes over the 2 lugs.
INS-44783-1
2. Place the antenna back plate over the pole mounting
Asia Pacific | EMEA | Americas
Copyright RF Industries Pty Ltd 2022. Subject to change without notice.
bracket and attach using the 4 x M6 x 12mm bolts &
washers.
