RFI LPDA7030 Series Installation Sheet

Installation Sheet

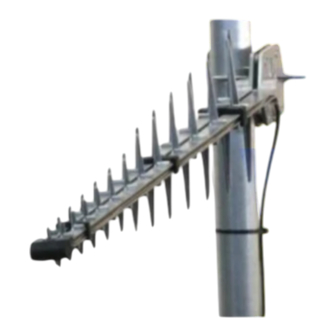

Multi-band Log Periodic Antenna

INTRODUCTION

Thank you for purchasing this RFI log periodic antenna. It is a high gain multi-band directional antenna covering all
international cellular, mobile and wireless bands including G850/GSM900/GSM1800/3G2100/LTE as well as 2.3-
2.7GHz licensed and unlicensed data bands. It is designed to provide extra signal strength and hence faster speed
to your wireless broadband service or mobile phone.
IMPORTANT: For maximum signal, we recommend external mounting to reduce signal losses caused by
building structures etc.

CONTENTS

Before assembling and installing your antenna, please check that the kit includes all the following components.
Log periodic and with either (depending on version purchased):
• 10 metres cable terminated with SMA male connector (LPDA7030-11-10SMA)
OR
• 0.5 metres cable terminated with N Type female connector (LPDA7030-11- 0.5NF)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

INSTALLING THE ANTENNA

Mounting Location

To get optimum performance from the antenna it should be pointed towards the strongest available network signal
(base station). Choose a suitable location on the building to mount the antenna so that it is clear of any obstructions
when pointed towards the strongest base station.
1. Connect the antenna to your data card or modem. The 10 metre version comes ready to connect to
devices using an SMA type connector. If you have purchased the 0.5 metre version, you will require
additional cable terminated with an N Type male & the appropriate connector for you device. For devices
using other connector types, a patch lead to connect the antenna (SMA) to the device (phone or data card)
will be required (not included). Please contact your retail or network provider for availability.
IMPORTANT: Some data cards or modems will only detect the connection of an external antenna on power up.
2. Connect the data card or modem to your computer and follow the manufactures instructions to open the
management software so that the screen shows the received signal strength. You may need to turn off your
system and power up again after you have connected the antenna.
3. Once you have connected to the network, check the signal strength* indicator on your computer.
4. Place the antenna in your selected location and rotate it in 15-20 degree increments. In each position, check
& record your signal strength. You may need to wait for up to a minute for the signal strength
indicator to update.
INS-41968-1
Copyright RF Industries Pty Ltd 2014. Subject to change without notice.
