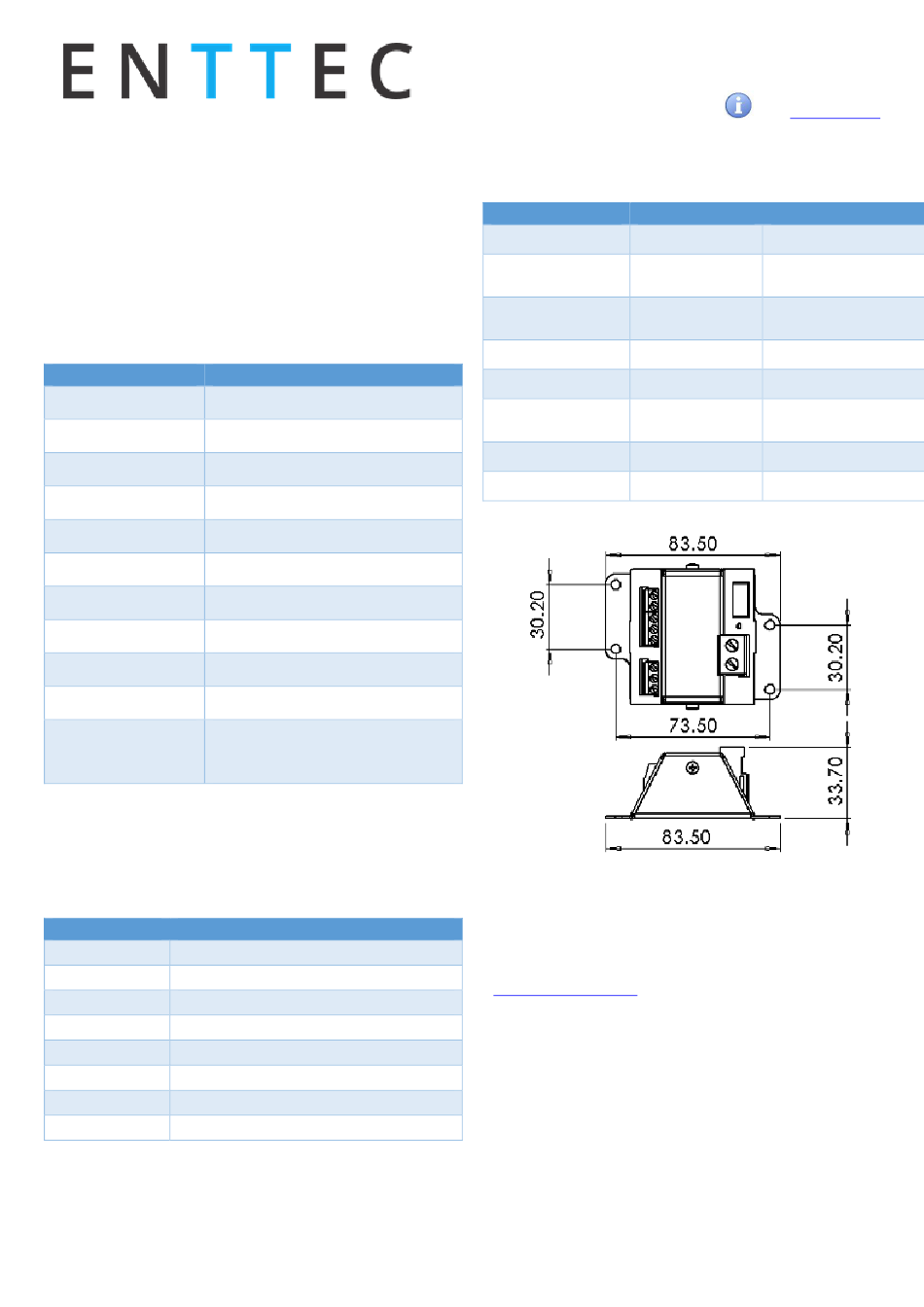

Enttec PIXELATOR MINI Quick Start Manual page 6

High power screw terminal connectors
•
Easy wiring using straight Cat5/Cat6 standard con-
•
nections
Specifications
Due to continuous improvements and innovations of all
ENTTEC products, specifications and features are subject to
change without notice.
Item Value
PSU Input Voltage 90 – 260V AC
PSU Input Frequency 50/60 Hz
Weight 1.65 lbs. / 0.75 Kg
Shipped weight 3.19 lbs. / 1.45 Kg
Length 7.53" / 191mm
Width 4.14" / 105mm
Height 1.75" / 44.5mm
Output Protocol WS2812b or APA-104
Input Protocol Art-Net, sACN or ESP
Op Environment 0°-50°C
Connectors 8x RJ45 Plink output
1x IEC power connector
1x RJ45 Ethercon connector
Ordering Information
The ENTTEC Pixelator Mini and compatible products can be
ordered from our website or through your ENTTEC dealer.
PN Description
70066 Pixelator Mini
73546 Plink Injector 5V
73544 Plink Injector 12V - 24V
73545 PixieLinker (5V)
8PL60-F 60 LEDS/M Pixel Tape – 5 Meter
8PL30-F 30 LEDS/M Pixel Tape – 5 Meter
70581-ETY ELM ENTRY (4U License)
70581-STU ELM STANDARD (16U License)
Email: sales@enttec.com
Website: www.enttec.com
6
PLink Specifications
PLink Injector
Input Voltage
Max. total Power
consumption
Max. output
current per pin
Data Input
Output Protocol
Ambient working
temperature
Cooling method
Protection Rating
Registration
Please register your ENTTEC product to get latest software
updates and to validate your warranty. To register, please
visit
enttec.com/register
Quick Start Manual
PMINI-MANUAL (50881)
For latest version visit:
www.enttec.com
73546 (5V) 73544 (12V)
5V DC 12V-24V DC
110 Watt 130 Watt
10 Amp 10 Amp
PLink PLink
WS2812b WS2812b
-10° to 45°C -10° to 45°C
Convection Convection
IP20 IP20
