Enttec PIXELATOR MINI Quick Start Manual page 2

Once setup, any Art-Net/sACN/ESP enabled software/app
or a lighting control desk can be used to drive the Pixel Link
outputs on the Pixelator Mini. For a list of recommended
apps, please check the website

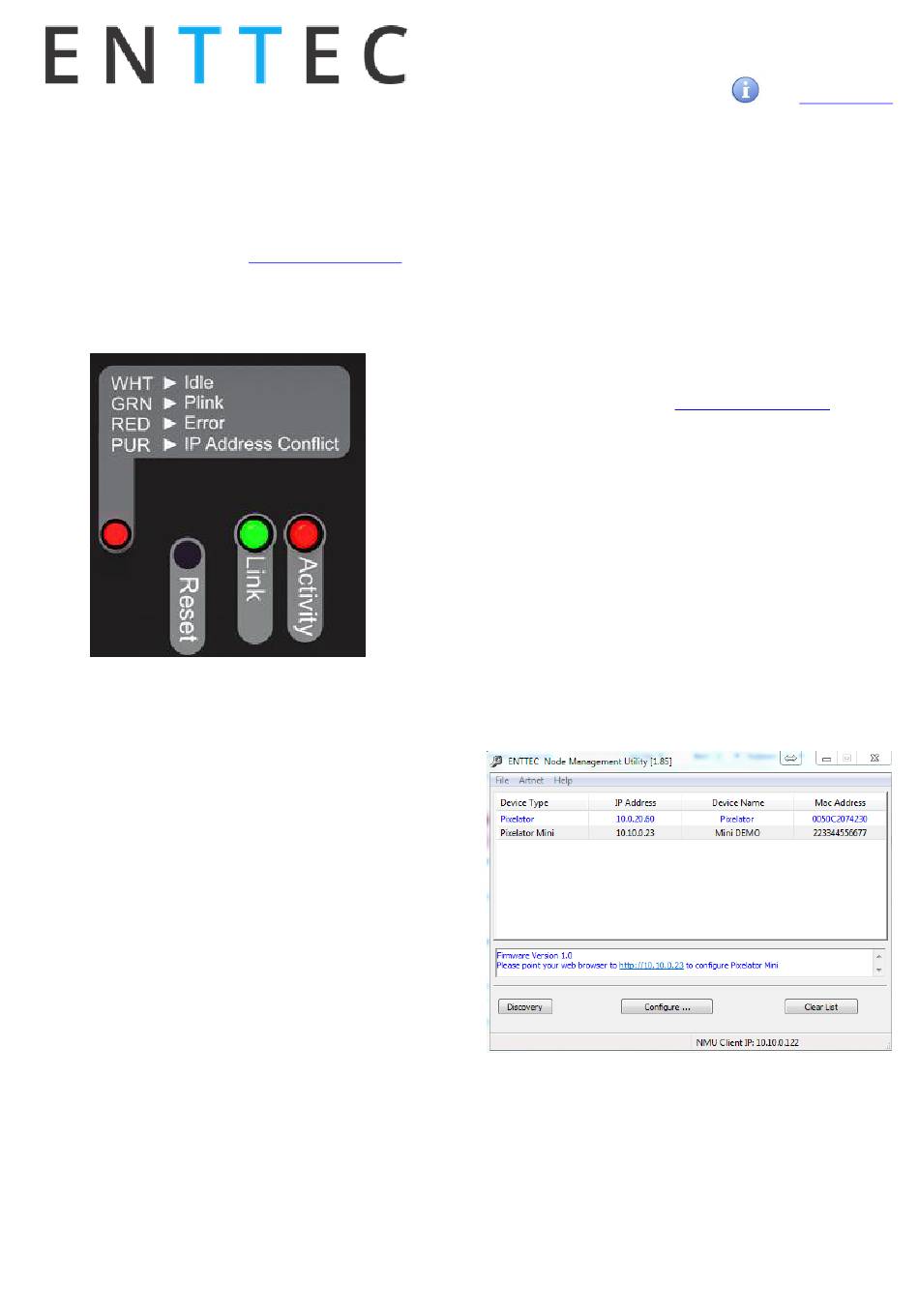

LED Status
The Pixelator Mini comes with one RGB status LED and two
green network LED indicators located on the right side of
the front panel
RGB Status LED:
WHITE:
idle, signifies that Pixelator Mini is
•
operating normally.
GREEN:
Pixel Link Data is being output. The led
•
will fade from white to green.
RED: (Blinking)
•
update or needs to be rebooted. A reset might be
required, if it stays in error-mode on reboot.
PURPLE: (Blinking)
•
change the IP address manually or enable DHCP.
Ethernet Link Speed
: is ON when there is an active
Ethernet Link @ 100 mbps. It will stay OFF @ 10 mbps.
Ethernet Activity
: This LED blinks when there is activity on
the Ethernet network.
2
www.enttec.com/mini
Error State. Requires a firmware
IP Address Conflict. Please
NMU
NMU (Node Management Utility) is a free Windows and Mac
application that is used to manage compatible ENTTEC DMX
over Ethernet nodes.
NMU will help you find your unit's IP address and then open
a browser window to access the web-interface.
Please follow these steps:
1. Download NMU from
2. Ensure that Pixelator Mini is hooked up physically by
an Ethernet cable.
3. And connected to the same physical network (or
router) as the computer on which you will run NMU.
4. Open NMU. If prompted with multiple networks, se-
lect the correct network. (identified by the IP address
of your computer on that network)
5. Press the Discovery button, and wait till NMU finds
all supported ENTTEC devices on your network.
6. Once found, select Pixelator Mini and use the IP ad-
dress to access the web-interface via your web
browser.
Web Configuration
The Pixelator Mini can be configured and controlled through
a web browser, running on a computer system, located on the
same Local Area Network. Any modern web browser, such as
Chrome, Firefox, Internet Explorer, Safari or Opera, running
Quick Start Manual
PMINI-MANUAL (50881)
For latest version visit:
www.enttec.com
www.enttec.com/nmu
