Enttec PIXELATOR MINI Quick Start Manual page 5

Static IP address is mapped to the Serial number
•
of the unit (used if DHCP is unavailable).
Netmask is set to 255.0.0.0
•
DMX Protocol is set to Art-Net (0-15)
•
Each Plink output is set to 2 Universe with RGB
•
ordering.
To successfully reset to factory defaults the Pixelator Mini,
the following procedure must be performed:
Power off the unit
•
Press and hold the Reset button.
•
While holding the Reset button, power up the
•
unit, and keep holding the button for 3 seconds.
Release the Reset button once the status led starts
•
blinking red.
Wait 3 seconds and cycle power
•
Connector pin out
Pixel Link pinout (RJ-45):
Pin 1: Data +
•
Pin 2: Data -
•
Pin 7: Ground
•

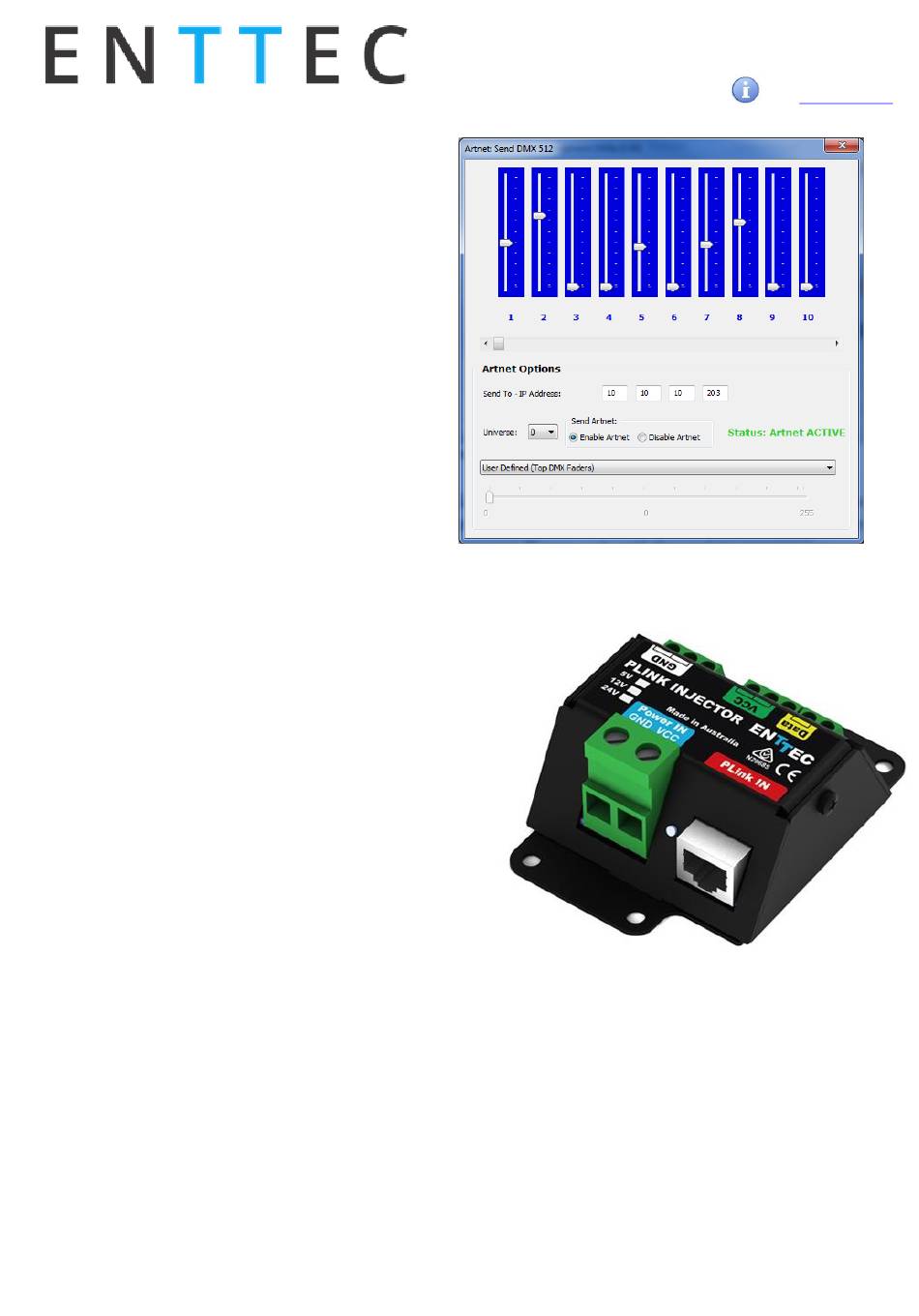

Art-Net Send Test
NMU can also be used to troubleshoot the Plink output
on the Pixelator Mini. Art-Net Test can be accessed from
the top menu: Art-net → Art-net Test
When first opened, the Art-Net is set to Disabled, please
set it to Enabled, and then you can use either the DMX fad-
ers to test one or more DMX channels, or use the test-pat-
terns from the options available.
Please set the Pixelator Mini to be Art-Net output and on
the same universe as being used to send Art-Net from
NMU.
5
PLink system
PLink Injector sold separately (73546 / 73544)
•
1 PLink Injector needs to be used per PLink port on
•
the Pixelator Mini
An External DC power supply
•
Data extensions up to 300 meters over Cat6 cable
•
Supports RGB pixel strips based on WS2812,
•
WS2812B and APA-104 LEDs.
Small, light and easy to hide design
•
Quick Start Manual
PMINI-MANUAL (50881)
For latest version visit:
www.enttec.com
ID: 209766
