Enttec PIXELATOR MINI Quick Start Manual page 3

under any operating
XP/7/8/10, Mac OS X or Linux can be used.

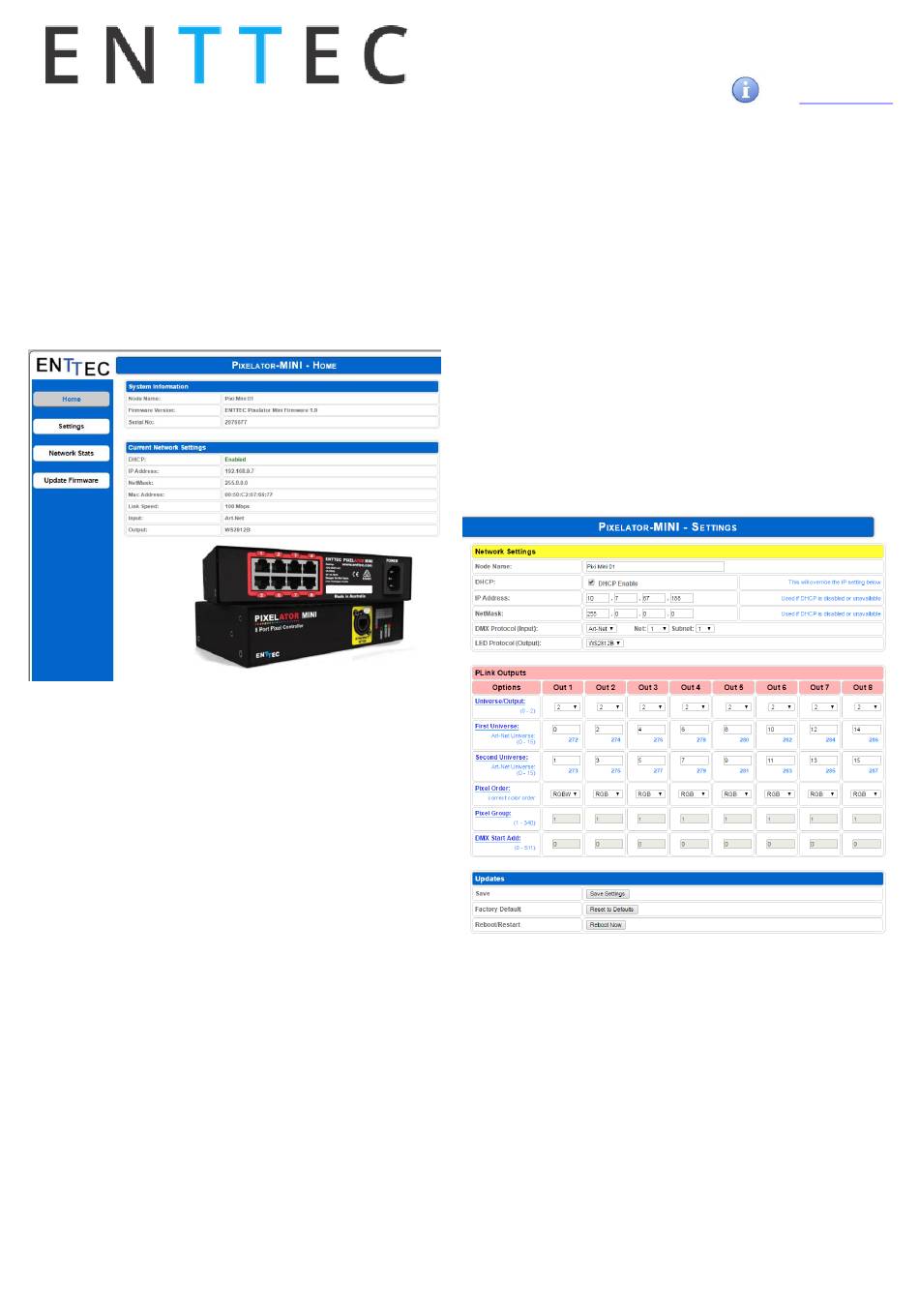

Either click on the underlined URL displayed in NMU, or
type the IP address (as detected by NMU) into your web
browser to access the Web Interface. The left side menu
allows all the Pixelator Mini web pages to be accessed.
Home page provides the following information:
System Information
: Name, Firmware Version and Serial
No. of the unit. The Serial No. is unique to this unit and can
be used to identify this unit.
Current Network Settings
speed for the unit.
To change any of the displayed settings, you must use the
Settings page.
Settings
Node name is used to identify the unit on the network. Any
meaningful name can be used.
DHCP is enabled by default. When enabled, the router on
your network is expected to automatically provide the IP
address to the unit. If no DHCP router/server is present on
the network, the manual IP address will be used.
If for some reason, your unit does not get an IP address via
DHCP, please restart the unit with the Ethernet cable con-
nected. It will listen for DHCP on start-up and wait for a few
seconds, before giving up.
3
system, including Windows
: Configured IP address and Link
IP Address and Netmask are only used if DHCP is disabled or
is unavailable on your network. Pixelator Mini web-page will
warn you, if non-standard IP address or netmask is used.
If ever you manage to use an IP Address that can't be con-
nected to later, please perform the reset procedure (as de-
scribed later). The reset will re-enable DHCP on Pixelator Mini.
DMX Protocol: allows you to pick the input DMX over Ethernet
protocol that the Pixelator Mini will act on. Available options
are Art-Net, sACN, and ESP.
Art-Net Address: Net and Subnet can be selected here, and
comply with Art-Net 3 protocol. Universe can be selected
from the PLink Port Settings.
LED Protocol: allows you to pick the Plink Output protocol that
the pixel tape conforms to. Available options are WS2812B
and APA-104.
Plink Settings
The Plink Outputs table allows all settings to be individually
changed for each Plink Port. The options available for each
Port are as follows:
Universe / Output
Select the number of universe to drive the outputs Available
options are:
None: No output.
•
Quick Start Manual
PMINI-MANUAL (50881)
For latest version visit:
www.enttec.com
ID: 209766
