X V M E - 6 8 2 Manual
October , 1989
Appendix C
I N S T A L L A T I O N O F OPTIONS
C . 1 INTRODUCTION
T h i s a p p e n d i x will d i s c u s s the i n stal l a ti o n of the opti o nal e q u i p m e n t that g o e s wi t h the
X V M E - 6 8 2 P r o c e s s o r Module.
C . 2 MATH C O -PROCESSOR

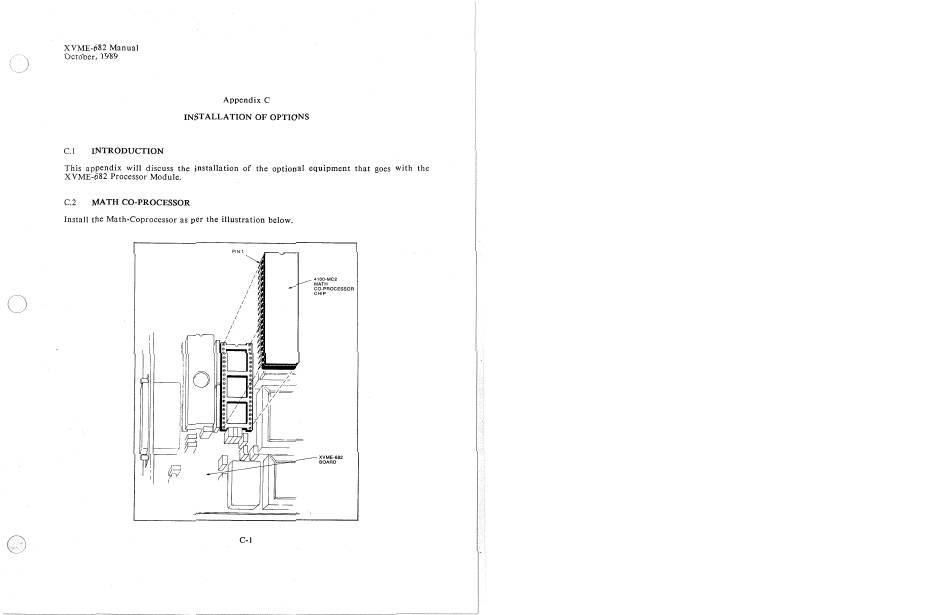

Instal l t h e M a t h - C o p r o c e s s o r a s per t h e i l l u strati o n below.
C-1
