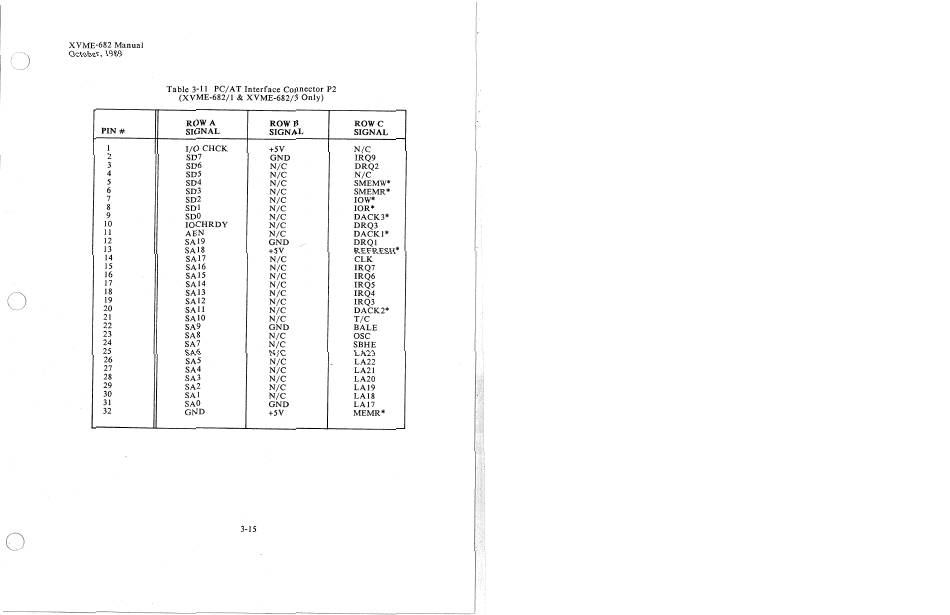

T a b l e 3 - 1 1 PC/A T Interface Connector P2
( X V M E - 6 8 2 / 1 & XVME-682/3 Only)
ROW A
PIN # SIGNAL
1 I/O CHCK
2
SD7
3 SD6
4
SD5
5 SD4
6 SD3
7
SD2
8 SDI
9
SDO
10
IOCHRDY N/C
11 AEN
12
SA19
13 SA18
14
SA17
15 SA16
16
SA15
17 SA14
18
SA13
19 SA12
20
SA11
21 SA10
22
SA9
23 SA8
24
SA7
25
SA6
26
SA5
27
SA4
28
SA3
29
SA2
30 SA I
31
SAO
32 GND
3-15
ROW B ROW C
SIGNAL
SIGNAL
+5V N/C
GND IRQ9
N/C DRQ2
N/C N/C
N/C SMEMW*
N/C SMEMR*
N/C IOW*
N/C
IOR*
N/C DACK3*
DRQ3
N/C DACK1*
GND
DRQ1
+5V REFRESH*
N/C
CLK
N/C IRQ7
N/C IRQ6
N/C IRQ5
N/C IRQ4
N/C IRQ3
N/C DACK2*
N/C T/C
GND
BALE
N/C OSC
N/C
SBHE
N/C LA23
N/C LA22
N/C LA21
N/C LA20
N/C LA19
N/C LA18
GND LA17
+5V MEMR*
