X V M E - 6 8 2 Manual
October , 1989

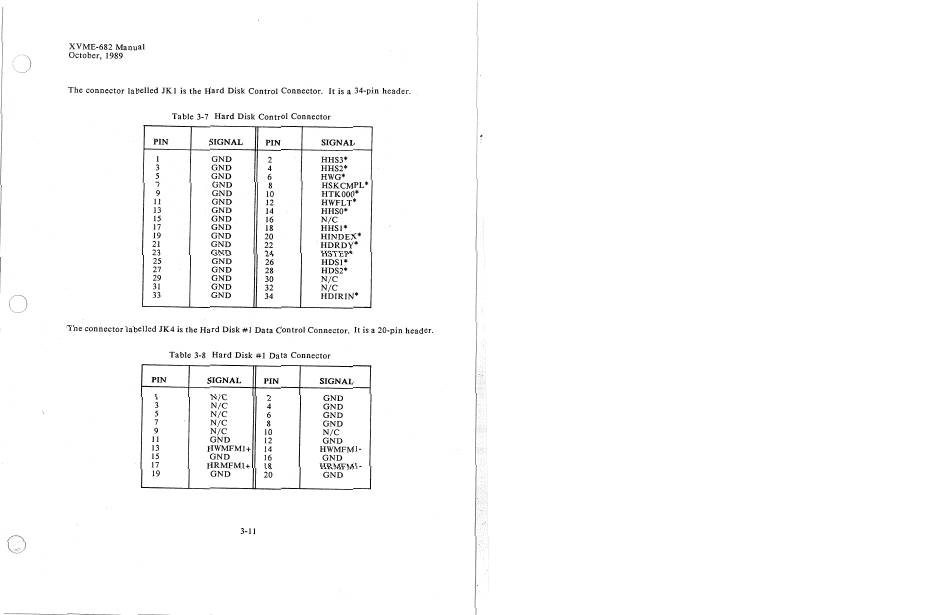

T h e c o n n e c t o r l a bel l e d J K 1 i s t h e H a r d Di s k Cont r ol C o n n e c t o r . It i s a 3 4 -pi n header.
T a b l e 3 - 7 Hard Di s k Cont r ol Connector
PIN
SIGNAL PIN
1 GND
3 GND
5 GND
7 GND
9 GND
11 GND
13
GND
15 GND
17
GND
19 GND
21 GND
23 GND
25
GND
27 GND
29
GND
31 GND
33 GND
T h e c o n n e c t o r l a bel l e d J K 4 i s t h e H a r d Di s k # 1 D a t a Cont r ol C o n n e c t o r . It i s a 2 0 -pi n header.
T a b l e 3 - 8 Hard Di s k # 1 D a t a Connector
PIN
SIGNAL PIN
1 N/C
3 N/C
5 N/C
7 N/C
9 N/C
11 GND
13 HWMFMI+
15
GND
17 HRMFM1+
19 GND
3-11
SIGNAL
2 HHS3*
4
HHS2*
6 HWG*
8 HSKCMPL*
10 HTK000*
12 HWFLT*
14 HHSO*
16 N/C
18 HHS1*
20 HINDEX*
22 HDRDY*
24
HSTEP*
26 HDS1*
28
HDS2*
30 N/C
32 N/C
34 HDIRIN*
SIGNAL
2 GND
4 GND
6 GND
8 GND
10 N/C
12 GND
14 HWMFMI-
16
GND
18 HRMFMI-
20
GND
