X V M E - 6 8 2 Manual
October , 1989

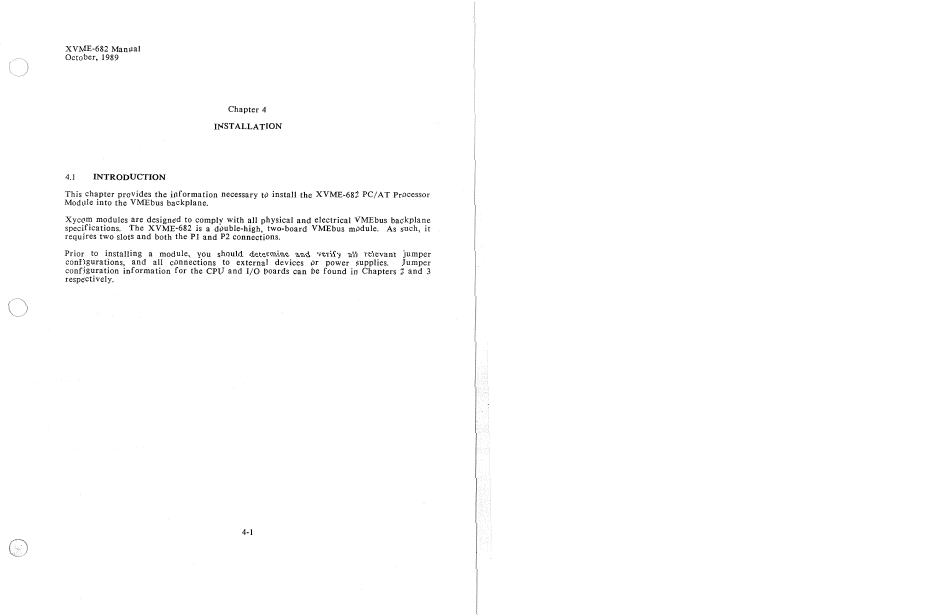

Chapter 4
INSTALLATION
4 . 1 INTRODUCTION
T h i s chapt e r provi d es the i n formati o n n e c e s s a r y to i n stal l the X V M E - 6 8 2 P C / A T Processor
M o d u l e i n to t h e V M E b u s backplane.
X y c o m m o d u l e s are d e s i g n e d to c o m p l y wi t h all physi c al a n d el e ctri c al V M E b u s backplane
speci f i c at i o ns. The X V M E - 6 8 2 i s a d o u b l e -hi g h, two- b o a r d V M E b u s m o d u l e . As such, it
r e q u i r e s t w o sl o t s a n d bot h t h e P 1 a n d P 2 connections.
Pri o r to i n stal l i n g a modul e , you shoul d det e rmi n e and verify all rel e vant jumper
conf i g urat i o ns, a n d all connect i o ns to external devi c es or power suppl i e s. Jumper
conf i g urat i o n i n f o rmat i o n for the C P U a n d I/O b o a r d s c a n be f o und in C h a p t e r s 2 and 3
respectively.
4-1
