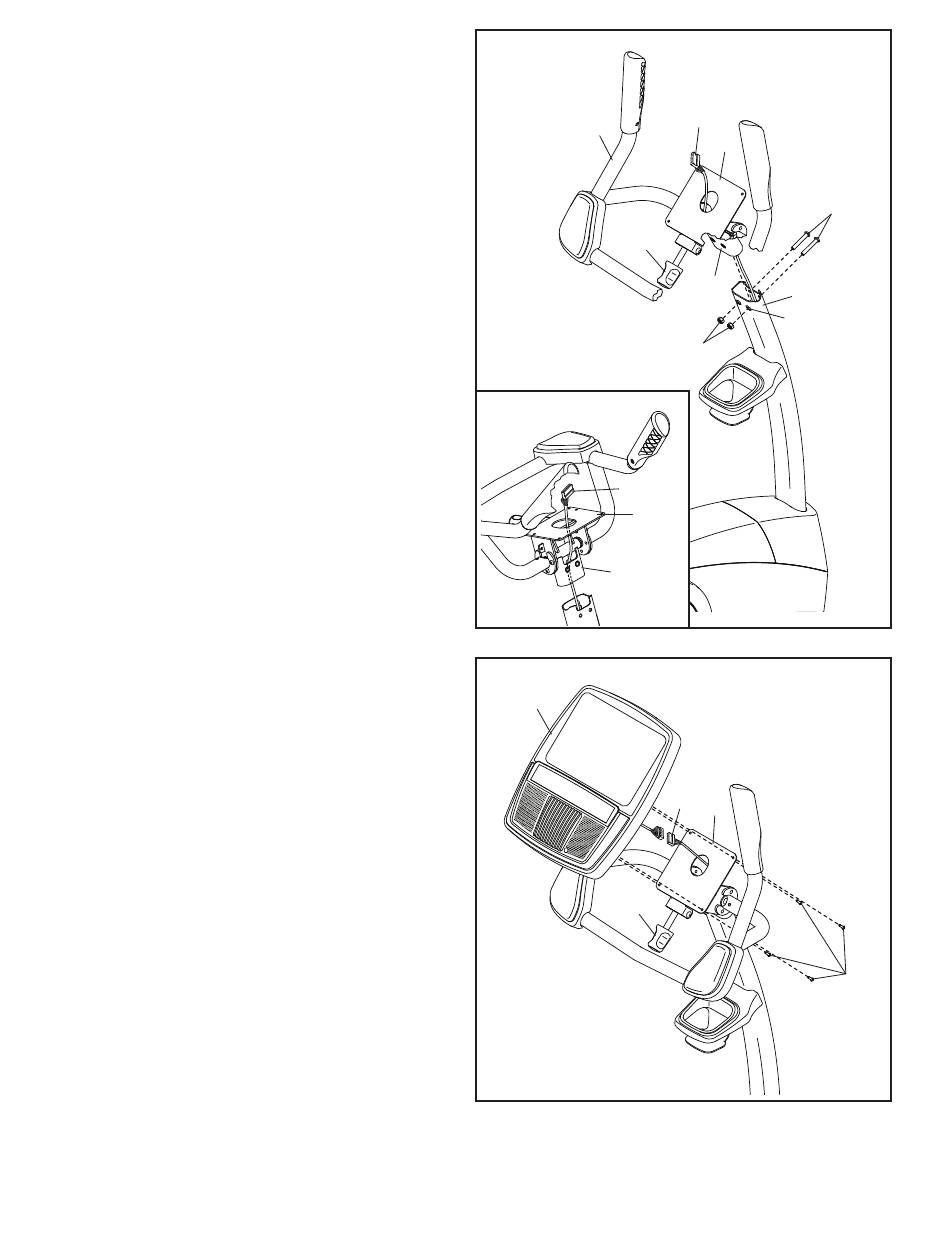

7. Have a second person hold the Handlebar (5)
near the Upright (4).
See the inset drawing. Route the Upper Wire
(87) through the Pivot Post (78) and the Pivot
Bracket (71) as shown. Tip: It may be easier to
route the Upper Wire if you adjust the angle
of the Pivot Bracket by turning the Console
Knob (77).
Tip: Avoid pinching the Upper Wire (87). Insert
the Pivot Post (78) into the Upright (4).
Attach the Pivot Post (78) with two M8 x 50mm
Bolts (70) and two M8 Locknuts (43); make
sure that the Locknuts are in the hexagonal
holes (A).
8. IMPORTANT: Turn the Console Knob (77)
until the Pivot Bracket (71) is in the most
vertical position.
While a second person holds the Console (13)
near the Pivot Bracket (71), connect the wire on
the Console to the Upper Wire (87). Tip: The
wire connectors should slide together eas-
ily and snap into place with an audible click.
If they do not, turn one connector and try
again.
Insert the excess wire downward through the
Pivot Bracket (71). Do not insert the excess
wire into the Console (13); the wire may
interfere with the fan.
Tip: Avoid pinching the wires. Attach the
Console (13) to the Pivot Bracket (71) with four
M4 x 16mm Screws (72).
7
5
77
Avoid pinching the
Upper Wire (87)
87
71
78
8
13
77
9
87
71
70
78
4
A
43
Avoid pinching
the wires
87
71
72
