- Page 1 User manual ES5026 Gigabit Managed POE Switch User manual Version 1.0.0, September. 2014 www.3onedata.com - 1 -...
- Page 2 User manual ES5026 user manual Statement Copyright Notice Information in this document is reserved by Shenzhen 3onedata Technology Co.,Ltd. Reproduction and extract without permission is prohibited. Trademarks Notice is registered trademarks of Shenzhen 3onedata Technology Co.,Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers.
-
Page 3: Table Of Contents
User manual Content CHAPTER 1 SUMMARIZE......................1 1.1 I ..........................1 NTRODUCTION 1.2 F ............................1 EATURES CHAPTER 2 HARDWARE DESCRIPTION.................. 2 2.1 P ..........................2 ANEL DESIGN 2.2 P ........................2 OWER SUPPLY INPUT 2.3 T ..........................2 OGGLE SWITCH 2.5 LED I .......................... -
Page 4: Chapter 1 Summarize
You can remotely reboot the device without having to climb up to or go to the device - just remove its Ethernet cable from the switch end as adopting PoE. All ports of ES5026 PoE Switch are auto-sensing that make each port only provide power as detecting the presence of 802.3af /at PoE supported devices. -
Page 5: Chapter 2 Hardware Description
6. 1000Base-FX SFP port 7. Power input socket and switch 2.2 Power supply input ES5026 provides three power socket rear panel Used in the AC power input (220 VAC) 2.3 Toggle switch There is a toggle switch on the right side of front panel(beside the SFP ports) If sliding the toggle switch to the left “S-LED”... - Page 6 User manual 2.4 Communication port 10Base-T /100Base-T/1000Base-TX Ethernet port 10Base-T/100Base-TX/1000 Base-TX Ethernet port use in front panel, It is RJ45 port, the PIN define of RJ45 is as follows: connection adopt UTP or STP, the distance is no more than 100m, 1000Mbps use cat5e, 100Mbps use cat5, 10Mbps use cat3,4, 5.
-
Page 7: Led Indicator
User manual Suppose: If you make your own cable, we suggest labeling the two sides of the same line with the same letter (A-to-A and B-to-B, shown as below, or A1-to-A2 and B1-to-B2). 2.5 LED Indicator The series LED indicator light on the front panel .the function of each LED is described in the table as below: Indicator Description... - Page 8 User manual Safe ground connection for the cabinet or desktop. Installation Tools Flathead screw driver Cross screw driver Anti-static wrist strap Installation 1.Install the Switch 1.1 Install the switch on a 19 inch standard cabinet 1) First fix the provided two L-shaped brackets on the two sides of switch. 2) Fix the switch on the rack with screws(screws are not provided).
-
Page 9: Chapter 3 Appearance And Dimension

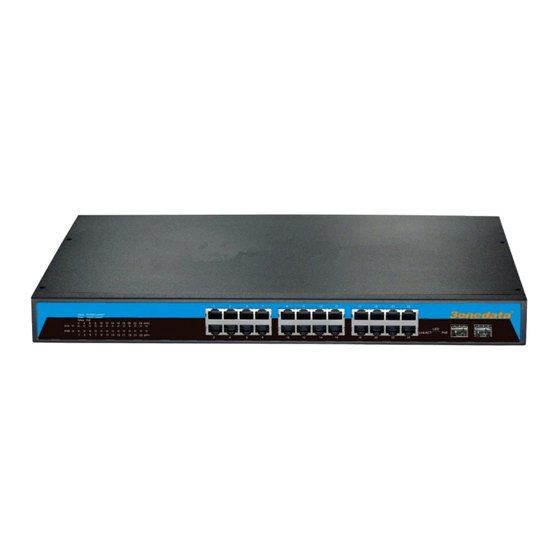

User manual Chapter 3 Appearance and Dimension 3.1 Appearance 3.2 Dimension... -
Page 10: Chapter 4 Packling List
User manual CHAPTER 4 PACKLING LIST Please check the packaging and accessories by your first using. Please inform us or our distributor if your equipments have been damaged or lost any accessories, we will try our best to satisfy you. Quantity Description POE switch... -
Page 11: Chapter 5 Configure Poe Switch
User manual CHAPTER 5 Configure POE switch 5.1 User Login Switch adopt Web-based interface management, the default IP is 192.168.255.1. Please make sure the IP address of PC is in the same network segment with that of switch,or the PC can’t access to manage the switch. After the setting of IP address, please input 192.168.255.1 in the browser to access the configuration interface of switch. -
Page 12: Device Status
User manual 5.3 Device Status 5.3.1 System Information Picture 5.3.1.1 System Information Device information can be checked in the above system information interface, the informations include: device model number, serial number, MAC address, IP address, network mask, network gateway, software version and hardware version. -
Page 13: Management Account
User manual 5.4.2 Management Account Picture 5.4.2.1 Account Management Users can register new user name and password or reset password in this page. It will automatically jump to login interface after the register or reset finished. The user can login in with new user name. Notice: Remember your user name and password. -
Page 14: Advanced Config
User manual 5.5 Advanced Config 5.5.1 VLAN Config The System VLAN function consist of two parts: one is VLAN configuration, which mainly include creating VLAN, add VLAN membership; the other is VLAN property, the user can define PVID for every ports. 5.5.1.1 VLAN Configuration Picture 5.5.1.1 Vlan Configuration The Switch allows users to create/delete VLAN, users can elect a port to associate with the VLAN... -
Page 15: Port Trunk
User manual 5.5.2 Port Trunk Picture5. 5.2.1 Port Trunk The load balance modes of port aggregation include: 1. . Source MAC Address Mode: load balance calculation of packet-based source MAC address; 2. . Destination MAC Address Mode:load balance calculation of packet-based destination MAC address; 3. -
Page 16: Loop Protection
User manual Picture 5.5.3.1 Configuration of Port Isolation 5.5.4 Loop Protection Picture 5.5.4.1 Loop Detection There are two Loop protection modes: Off and Loop Protection, the default configuration is Loop Protection mode. When there is a loop detected, the related port will be blocked and port indicator will be red on,and the buzzer will alarm. -
Page 17: Network Security
User manual Power(W) Bar: the output power of specific ports are showed; Class Bar: PoE output level is showed, “0” is defaulted, refers to” 0-13W”; “1” refers to “<4W”; “2” refers to “4-7W”; “3” refers to “7-13W”; “4” refers to IEEE 802.3at standard power output; “5/6” are undefined yet. Status Bar: showing the PoE power supply state, connected / disconnected.Users can also check the state from LED indicator on front panel(Slide the toggle switch to PoE side first). -
Page 18: Mac Learning Limit
User manual 5.6.1.3 MAC Learning Limit Picture 6.1.3 MAC Learning Limit The switch support port-based MAC learning limitation, users can defined the MAC learning quantity limitation of specific ports. 5.6.2 Storm Control Picture 6.2.1 Storm Control The switch supports multiple storm control modes: broadcast flow control, multicast flow control, unknown unicast flow control and unknown multicast flow control. -
Page 19: Restore Factory Config
User manual 5.7.2 Restore Factory Config Picture 5.7.2.1 Restore Factory Config Users can factory reset the configurations, IP addresses and user’s passwords. If the IP address or password is forgotten, please factory reset by connecting Port 9 and Port 16. Please follow the instruction: Step one: Connect Port 9 and Port 16 with a RJ45 cable, the switch will reboot and factory reset. -
Page 20: Appendix Trouble Shooting
User manual Appendix Trouble shooting Problems Reasons Solutions All LEDs are off Power cord connection error or Check power cord connection and the when power on the power supply failure power socket. switch 1． Network cable is damaged or The LINK LED is the connection is not firm.
