IES7110-2GS Series
Managed Industrial Ethernet Switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com

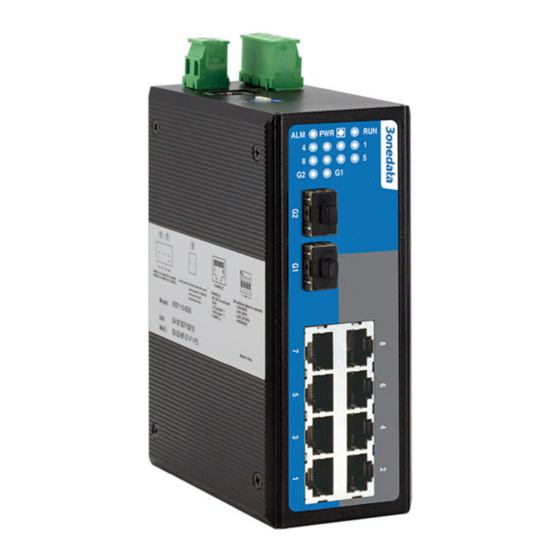

Summarize
IES7110-2GS series is an industrial grade, managed and
redundancy Ethernet
switch. It
included IES7110-2GS-P
(12/48VDC), IES7110-2GS-P (110/220VAC), IES7110-2GS-2F-P
(12/48VDC) and IES7110-2GS-4F-P (12/48VDC). IES7110-2GS
series provided some kinds of advanced network managed
function, like as: SW-Ring redundancy ring network, VLAN,
Trunking, Quality of Service, Speed control, port mirroring, fault
alarm and firmware upgrade online. SW-Ring can bring your
Ethernet to intelligent redundancy. Standard Industry design can
satisfied every requirement of the industry scene. All components
used industry grade, it takes products high Reliability. It provided
wide voltage power supply input.
TM
SW-Ring
is designed as rapid redundancy network arithmetic.
It provided recover technology for fault of rapid redundant
network, the recovery time<20ms.
Packing list
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch
1
Documentation and software CD
User manual
1
DIN-Rail mounting kit
1
Warranty card
1
Feature
High performance network exchange technology
Support
IEEE802.3,
IEEE802.3u,
IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D/W
SW-Ring ring network patent technology (Fault recovery
time<20ms
Support RSTP, way exchange time<50ms
Support WEB configuration
Support MAC address learning, aging automatic
- 1 -
Support port status display, data update.
Support static and dynamic IGMP
Support flow statistics
Support bi-directional port mirroring
Support rate control, Broadcast storm control
Support configuration files up and download
Support 1 channel relay alarm output
Reliable Industrial grade design
Industrial grade 4 design, -40-75 work temperature
No fan deign
IP40 protection grade

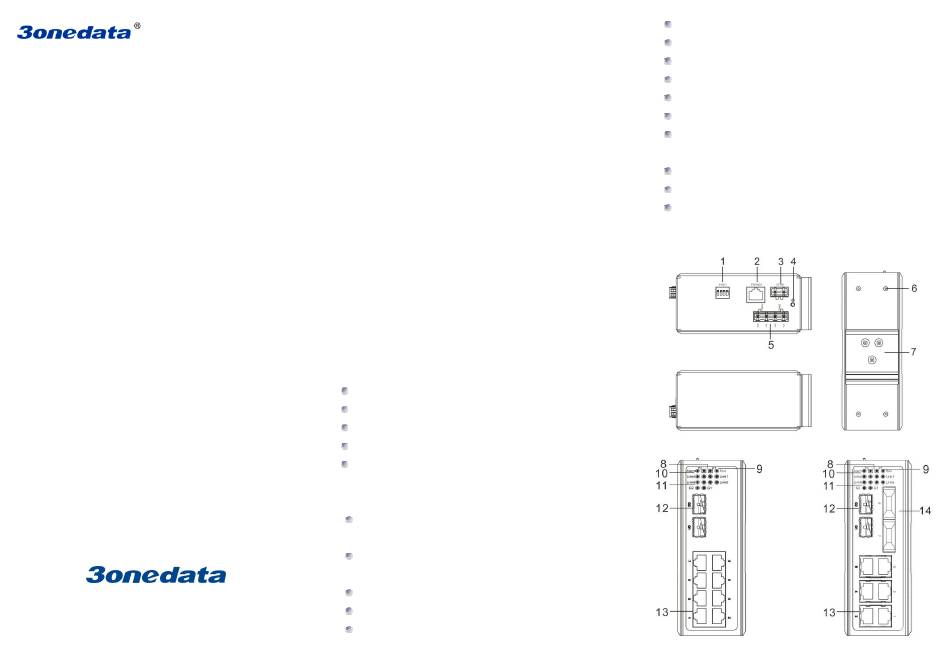

Panel layout
Vertical view and bottom view
1
Front panel view
IEEE
802.3x,
Rear view
Advertisement
Related Manuals for 3onedata IES7110-2GS Series
Summary of Contents for 3onedata IES7110-2GS Series
- Page 1 Summarize Support port status display, data update. IES7110-2GS series is an industrial grade, managed and Support static and dynamic IGMP redundancy Ethernet switch. It included IES7110-2GS-P Support flow statistics (12/48VDC), IES7110-2GS-P (110/220VAC), IES7110-2GS-2F-P Support bi-directional port mirroring (12/48VDC) and IES7110-2GS-4F-P (12/48VDC). IES7110-2GS...
- Page 2 can use for single, and can connect 2 separately power supply DIP Switch system, use 1 pair terminal block connect the device at the same time. If one of the power systems broke, the device can work un-interruptible. Built-in overcorrect protection, Reverse connection protection.
-
Page 3: Led Indicator
used 120 of UTP 5, 10Mbps is used 120 of UTP 3 ,4, 5. LED Indicator 100Base-FX Fiber port 100Base-FX full-duplex SM or MM port, SC/ST/FC type .The LED indictor light on the front panel of product, the function of fiber port must be used in pair, TX (transmit) port connect remote each LED is described in the table as below. -
Page 4: Specification
4. Power: DC dual power supply series products 12 ~ 48VDC 4. All the cable cannot have break-down and terminal in the Exchange attribute AC single power supply series products 100~240VAC/DC middle; 100M forward speed: 148810pps 5. Environment: working temperature: -40 75 5. - Page 5 Full load consumption: 9.0W@24VDC Working environment Working temperature: -40 75 Storage temperature: -40 85 Relative Humidity: 5%~95% (no condensation) Mechanical Structure Shell: IP40 protect grade, metal shell Installation: DIN-Rail mounting Weight: 720g Size W×H×D : 110mm×138mm×53mm Industry Standard EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4...
