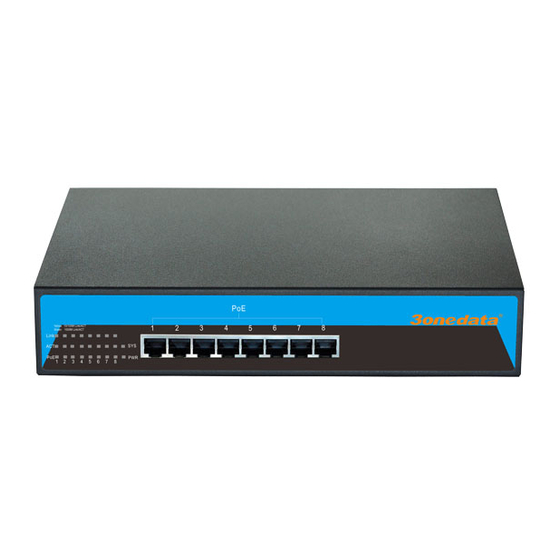

ES1008G-8POE-150W-P(220VAC)
Full Gigabit Unmanaged POE
Switch
User manual
Shenzhen 3onedata Technology CO.,Ltd
Address:3/B, Zone 1, Baiwangxin High Technology Industrial
park, Song Bai Road,Nanshan District,ShenZhen,
518055,China
Website:www.3onedata.com
Tel:+86 0755-26702688
Fax:+86 0755-26703485
【Introduction】
ES1008-8POE-150W-P(220VAC) is Full Gigabit , 8-port Gigabit
high power (IEEE 802.3at) PoE Switches ， utilizing a compact
factor which can be mounted in a 19-inch rack with rack-mounting
kits or placed on desktop.
With data and power supported by one unit, the POE Switch shall
reduce cables and eliminate the need for dedicated electrical outlets
on the wall ,ceiling or any unreachable place. Auto POE detection
and Plug and play installation makes the Gigabit POE Switch easy
to use and with clear LED indicators to tell the working condition.
【Packing List】
Please check the packaging and accessories by your first using.
POE Switch ×1
User's Guide ×1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
【Features】
Compatible with both IEEE802.3at(30W) and IEEE802.3af
(15.4W)
Automatically detect and supply power to IEEE802.3at and
IEEE802.3af compliant powered devices(PDs)
Advanced SAFC function, only supply power to IEEE
802.3af/at compliant PDs, no worry about damaging other private
standard POE devices or devices without POE function
Support port power supply prioritization, guarantee the
continuous power supply of key nodes
Up to 100m network cable transmitting distance
Built-in PSE power supply module, plug-and play design,
easy to install
High security performance defending against power surge
Support short-circuit protection function
Energy-saving green design, support auto-switch to standby
mode and auto-detect cable length

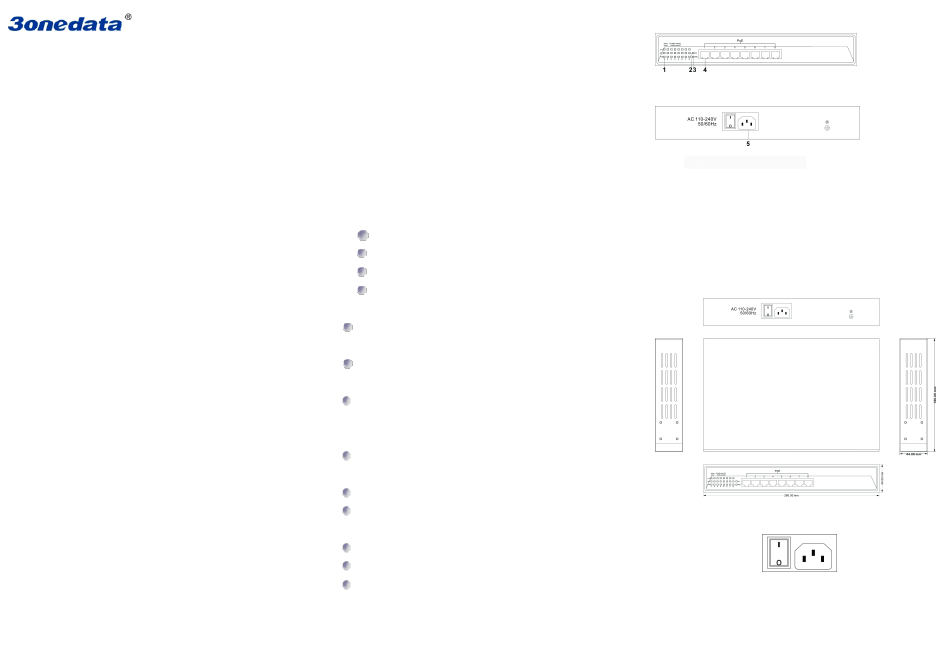

【Panel Layout】
Front panel
Back panel
1.
The corresponding interface
2. System Indicator
3. Power Indicator
4. 10Base-T /100Base-T/1000Base-TX port
5. Power input socket and switch
【Dimension】
【Power Input】
The POE Switch
provides three power socket rear panel Used in
the AC power input (220 VAC)
【Communication Connector】
10/100/1000BaseT(X) Ethernet port
