3onedata IES2016-16T Series Quick Installation Manual

IES2016-16T Series
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Din-Rail Mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

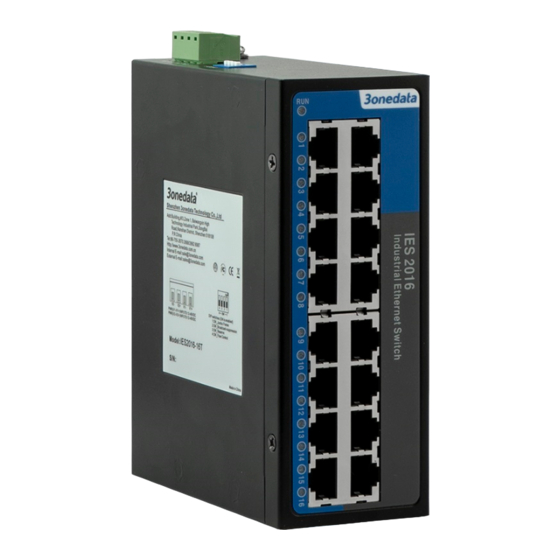

This series of products are unmanaged DIN-Rail industrial
Ethernet switches. Models as follows:
Model I. IES2016-16T-2P48 (16 100M copper ports + 2
12~48VDC power supply)
Model II. IES2016-16T-P220 (16 100M copper ports + 1
100~240VAC power supply)

【Panel design】

Rear view, bottom view and top view

Nanshan District,
2. Certification
4. Warranty card
Front view

Model I
Model II
Model I
1. Wall mounting hole
2. DIN-Rail mounting kit
3. Power supply input terminal block
4. DIP switch
5. Grounding screw
6. Running indicator RUN
7. Alarm indicator ALM(Reserved)
8. Power supply indicator P1/P2
9. Copper port connection indicator
10. 100M Ethernet copper port

【Mounting Dimension】

Unit: mm
Model II
