ES2010G-2GS
Full Gigabit Ethernet Switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】

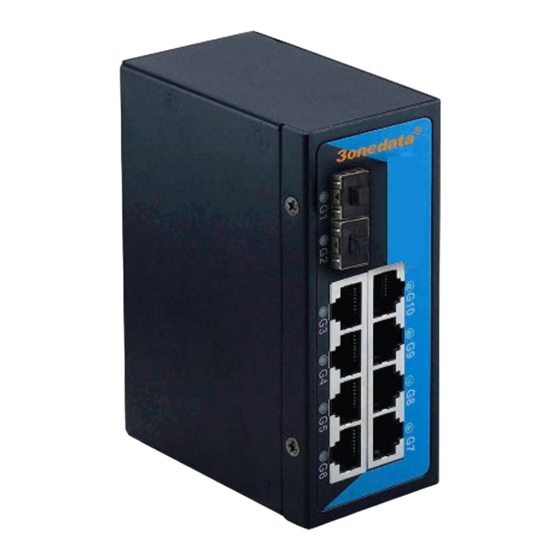

ES2010G-2GS is a kind of full gigabit unmanaged Ethernet
switch, it support 8 port 10/100/1000 Base-T(X) RJ45 Ethernet
and 2 port Gigabit SFP slot, DC power supply (12-48VDC). It
adopted no fan, low power consumption design, IP40, corrugate
high strength iron shell, the performance is more steadily. The
product accorded with CE, FCC standard and Industrial 4 grades,
DIN rail installation and wide operating temperature (0~55℃), it
can satisfied some kinds of industrial environment, it can provide
reliable and quickly solution for your Ethernet device.
【Packing list】
The Gigabit Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Gigabit Ethernet Switch ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Features】
Support 8 port 10/100/1000Base-TX and 2 port Gigabit SFP
slots
Support IEEE802.3/802.3u/802.3x/802.3z/802.3ab store and
forward
Ethernet port support 10/100/1000M self-adaption
Support redundant power input (DC12~48V), support
reverse connection protection
Support 0~55℃ working temperature
IP40 protect grade, high strength iron shell
DIN Rail installation.
【Panel layout】

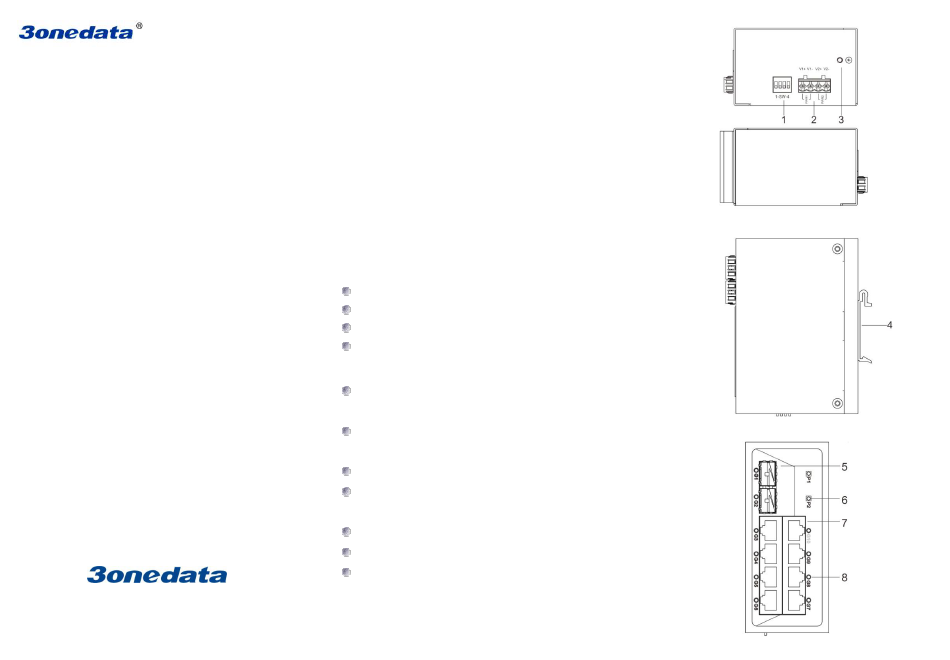

Vertical view and bottom view
- 1 -
Side view
Front view
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for 3onedata ES2010G-2GS
Summary of Contents for 3onedata ES2010G-2GS
- Page 1 【Summarize】 ES2010G-2GS is a kind of full gigabit unmanaged Ethernet switch, it support 8 port 10/100/1000 Base-T(X) RJ45 Ethernet and 2 port Gigabit SFP slot, DC power supply (12-48VDC). It adopted no fan, low power consumption design, IP40, corrugate high strength iron shell, the performance is more steadily. The product accorded with CE, FCC standard and Industrial 4 grades, DIN rail installation and wide operating temperature (0~55℃), it...
- Page 2 【DIP switch】 1. DIP Switch Gigabit MDI (straight-through cable) 2. Power input terminal block (4 bits) 3. Ground screw 4. DIN-Rail mounting kit The switch provided 4 bits DIP switch to do function configure 5. Gigabit SFP port (ON is enable), 1 is flow control, 2 is fiber port trunking, 3 is port 6.
- Page 3 In order to use in industrial environments expediently, the product power lines and grounding lines cannot be overlapped and adopt 35mm DIN-Rail installation, the installation steps as below: mixed when they are in the same groove road. When cable is 1.
- Page 4 Power supply Input voltage: 12～48VDC Type of input: 4 bit 7.62mm pitch terminal block No-load power consumption:3.9W@24VDC Full-load power consumption: 8.6W@24VDC Support reverse connection protection Working environment Working temperature: 0～55℃ Storage temperature: -10～65℃ Relative Humidity: 5%~95% (no condensation) Mechanical Structure Shell: IP40 protect grade, metal shell Installation: DIN-Rail mounting Weight: 450g...
