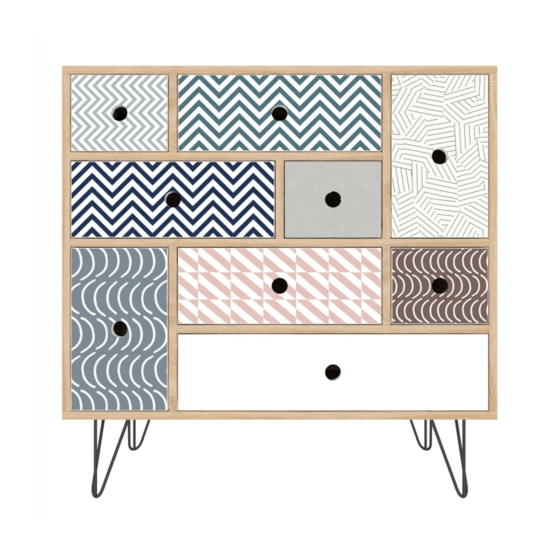

Vibe Puzzle Drawers
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
x64
nut x64
x40
F
G
H
small
stopper
long
screw x9
x9
screw x12

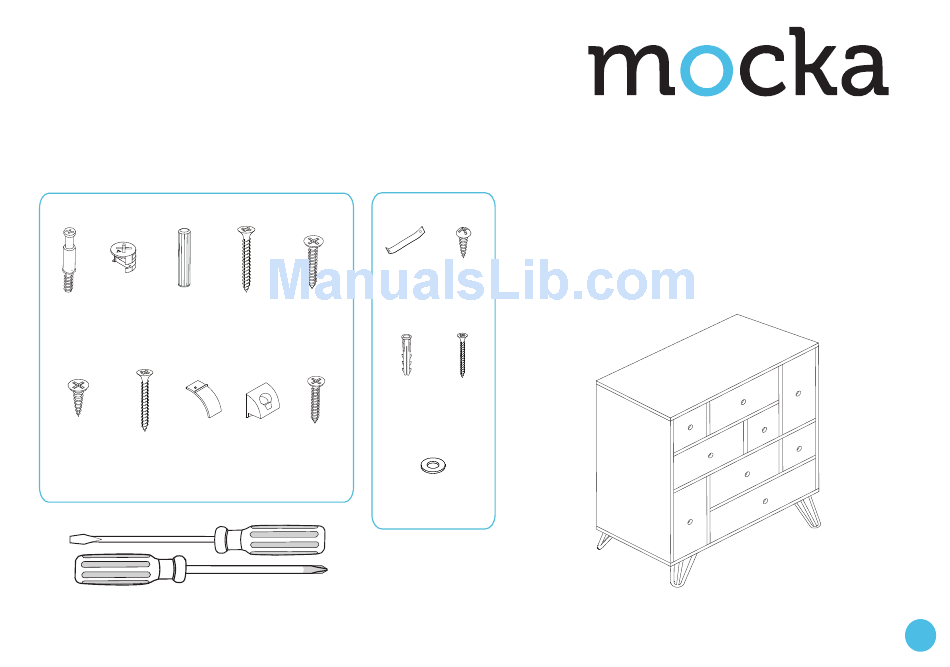

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
safety
strap x1
screw
long
x20
screw x36
I
J
wall
anchor
wedge
screw
x6
x6
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
V
W
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over
in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend that all furniture is anchored to
a wall. We supply a free safety wall anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The fixing device provided should fit
screw
most wall types, but please note that different wall materials may require different
x1
fixing devices from those supplied.
X
Y
wall
screw
x1
x1
Z
washer
x2
Wall Strap
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Vibe Puzzle Drawers
Summary of Contents for Mocka Vibe Puzzle Drawers
- Page 1 Vibe Puzzle Drawers Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Vibe Puzzle Drawers Assembly Instructions mocka.co.nz | mocka.com.au...
- Page 3 Vibe Puzzle Drawers Assembly Instructions Attach 2x stoppers (H) to panel [4] with 2x small screws (F). Insert 8x Insert 4x bolts (A) and 4x dowels (C) into panel [3] and repeat with panel bolts (A) and 8x dowels (C) into panel [1]. Insert 2x bolts (A) into panel [2].
- Page 4 Vibe Puzzle Drawers Assembly Instructions front front back back Attach 2x stoppers (H) to the front side of panel [5] with 2x small screws Attach 3x stoppers (H) to the front side of panel [6] with 3x small screws (F). Insert 2x dowels (C) into the front side of panel [5]. Now insert 2x (F).
- Page 5 Vibe Puzzle Drawers Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach 2x stoppers (H) to panel [7] with 2x small screws (F). Insert 2x Insert 2x bolts (A) and 2x dowels (C) into panel [9] and repeat for panel dowels (C).
- Page 6 Vibe Puzzle Drawers Assembly Instructions Secure panel [8] to panel [5] with 2x long screws (G) and 2x locking Attach panel [8] to panel [6] with 2x long screws (G). Now attach the rest nuts (B). Secure panel [9] to panel [5] with 2x locking nuts (B). Tighten of the panels to [8] and [6] with 2x long screws (G) and 2x locking nuts with a screwdriver.
- Page 7 Vibe Puzzle Drawers Assembly Instructions Attach panel [10] to panel [7] with 2x locking nuts (B). Attach panel [12] to panel Attach side panels [2] and [3] to the main unit with 8x locking nuts (B) [7] with 2x long screws (G). Attach panel [8] to the rest of the unit using 2x and tighten with a screwdriver.
- Page 8 Vibe Puzzle Drawers Assembly Instructions Slide the 2x back panels [11] along the grooves at the back of the unit, Attach panel [1] to the main unit and secure with 8x locking nuts (B). one from the bottom and one from the top.
- Page 9 Vibe Puzzle Drawers Assembly Instructions Insert 6x dowels (C) and 2x bolts (A) into the holes at the top of the unit Attach each leg [12] to the base of the table with 5x screws (E) and as shown. Attach panel [4] to the top of the unit and secure with 4x long tighten with a screwdriver.
- Page 10 Vibe Puzzle Drawers Assembly Instructions Drawers x3 Drawers x3 Attach side panels [14] & [26] to panel [13] using 4x bolts (A) and 4x Attach side panels [14] & [26] to panel [17] using 4x bolts (A) and 4x locking nuts (B). Slide panel [16] between the grooves of the side panels.
- Page 11 Vibe Puzzle Drawers Assembly Instructions Drawers x1 Drawers x2 Attach side panels [14] & [26] to panel [22] using 4x bolts (A) and 4x Attach side panels [25] & [27] to panel [20] using 4x bolts (A) and 4x locking nuts (B). Slide panel [24] between the grooves of the side locking nuts (B).
- Page 12 Vibe Puzzle Drawers Assembly Instructions Safety Strap strap washer Insert each completed drawer into its corresponding position as shown. Attach 6x wedges (I) as shown using 6 x screws (J). Attach the safety strap (V) to the top of the back side of the unit using 1x screw (W) and 1x washer (Z).
- Page 13 Vibe Puzzle Drawers Assembly Instructions Strap Washer wall anchor wall screw Lift the furniture into the desired location, do not drag. Attach the other You’re done, enjoy! end of the safety strap (V) to the wall using 1x screw (Y), 1x wall plug (X) and 1 x washer (Z).
