Jolt Six Drawer - Wide
ASSEMBLY INSTRUCTIONS
Thank you for purchasing a Mocka Kit.
Please follow the instructions below for correct assembly.
A
B
C
locking
screw
dowel
nut x13
bolt
x36
x31
x13
I
H
J
K
small
locking nut
x30
L + R slide
small bolt
rail x6
x30

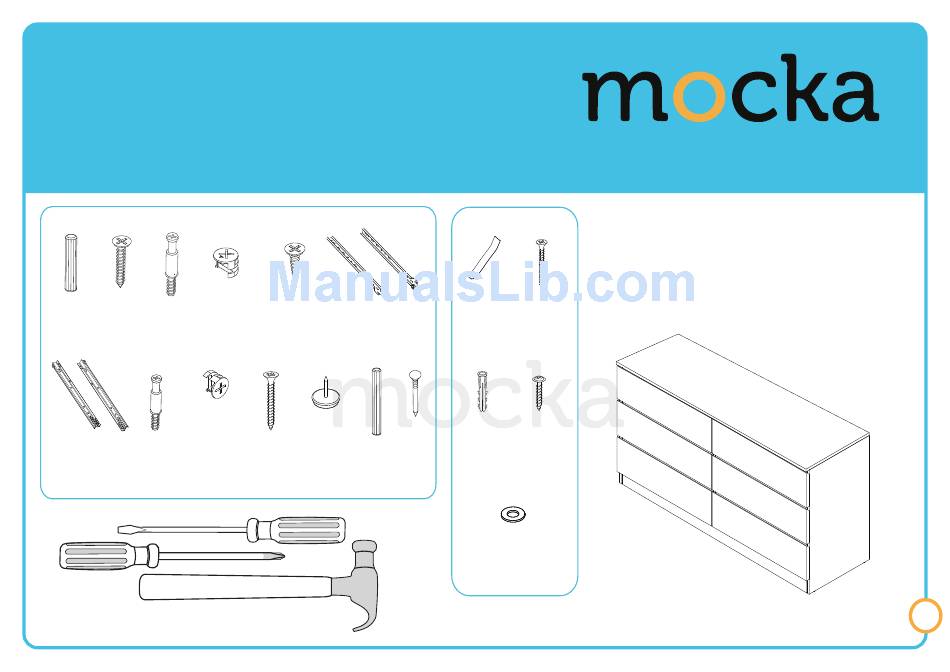

Hardware Supplied
Phillips & Flathead screwdriver and hammer required
mocka.co.nz | mocka.com.au
D
E
F
G
small
screw x60
L + R slide
rail x6
L
M
N
plastic
glide x6
long
long
screw x4
dowel x6
P
Q
wall
screw
strap x1
x1
O
R
S
nail
wall
r/washer
x28
anchor
screw
x1
x1
T
washer
x2
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jolt Six Drawer - Wide
Summary of Contents for Mocka Jolt Six Drawer - Wide
- Page 1 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Thank you for purchasing a Mocka Kit. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS To begin assembly attach 3x slide rails (F) & (G) in place on each of the Screw 6x bolts (C) and insert 18x dowels (A) into corresponding holes panels [2] and [3] using 3x small screws (E) in each rail bracket. Fasten in panels [2] and [3].
- Page 3 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Attach 3x slide rails (F) and (G) into each side of panel [4] using 18x Slot 3x panels [5] into the dowels in panel [3]. Place a bolt (C) and small screws (E). Fasten all screws with a screwdriver.
- Page 4 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Connect panel [4] to panel [6] with a locking nut (D) and tighten with a Connect remaining 3x panels [5] with 6x long dowels (N) on panel [4]. screwdriver. mocka.co.nz | mocka.com.au...
- Page 5 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Attach panels [7] and [8] to panel [3] using 2x locking nuts (D) and Use 4x long screws (L) to secure panels [7] and [8]. Attach panel [2] with tighten with a screwdriver.
- Page 6 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Insert 6x bolts (C) and 6x dowels (A) into top panel [1]. Slot together Attach both back panels [9] to the cabinet using 28x nails (O) and a with rest of the cabinet. Place 6x locking nuts (D) into corresponding hammer.
- Page 7 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Drawers (x6) Assemble the drawers by screwing 4x small bolts (J) into the front Slide the base panel [14] into place in the grooves on side and front panel [10]. Attach to side panels [12] and [13] using 4x small locking panel, and in between the support panel.
- Page 8 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Flip drawer over and attach slide rails (H) and (I) to both left and right Slide all six drawers into place on the rails in the cabinet unit as shown, underside of the drawer using 4x screws (E).
- Page 9 Jolt Six Drawer - Wide ASSEMBLY INSTRUCTIONS Strap Wall Strap Washer wall anchor wall screw r/washer screw Attach the safety strap (P) to the top of the back side of the unit using Move drawer unit into desired location against a wall. Use a drill to 1x screw (S) and 1x washer (T).
