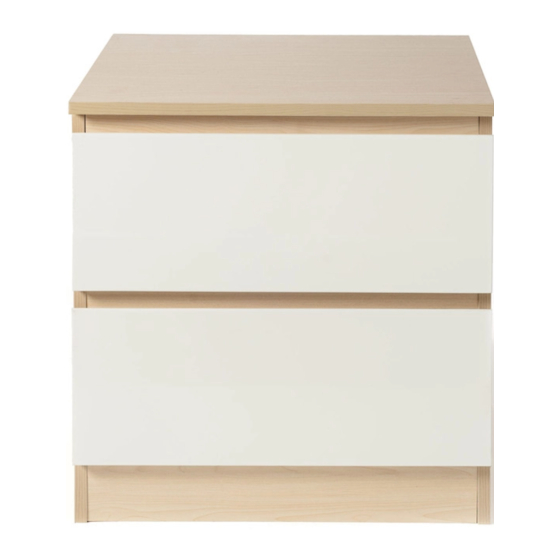

Jolt Bedside
ASSEMBLY INSTRUCTIONS
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
locking nut
x10
dowel
bolt
x18
x10
G
H
small screw
x20
L + R
x4

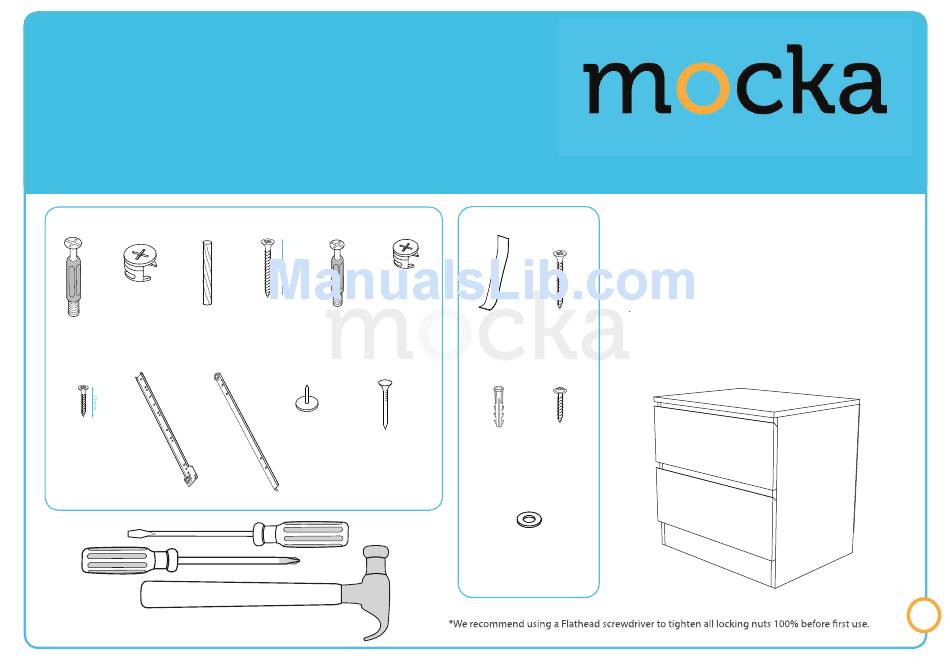

Hardware Supplied
Phillips & Flathead screwdriver and hammer required
mocka.co.nz | mocka.com.au
E
F
D
small
locking nut
long screw
x8
x8
small bolt
x8
I
J
K
plastic glides
small nail
x4
L + R
x14
x4
V
W
WARNING:
the potential to tip over in certain circumstances, i.e. if a
child attempts to climb up on the furniture or in the event of
an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that
Wall
Safety
different wall materials may require different fixing devices
Screw
Strap
from those supplied.
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x2
Wall Strap
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%
Any furniture that is not anchored to a wall has
1
Advertisement
Related Manuals for Mocka Jolt Bedside
Summary of Contents for Mocka Jolt Bedside
- Page 1 Jolt Bedside ASSEMBLY INSTRUCTIONS Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Jolt Bedside ASSEMBLY INSTRUCTIONS To begin assembly attach 2x slide rails (H) in place on each Screw in bolts (A) and insert dowels (C) into holes in panels [2] of the panels [2] and [3] as shown using 2x small screws (G) and [3].
- Page 3 Jolt Bedside ASSEMBLY INSTRUCTIONS Connect back panels [7] together with connector stick Insert 4x bolts (A) and 4x dowels (C) into top panel [1]. [13]. Attach both panels to the cabinet using 14x nails (K) Slot together with the rest of the cabinet. Place 4x locking and a hammer.
- Page 4 Jolt Bedside ASSEMBLY INSTRUCTIONS Drawers (x2) Drawers (x2) Assemble the drawers by screwing 4x bolts (E) into the front panel Slide the base panel [11] into place in the grooves in [8]. Attach to side panels [9] and [10] using 4x locking nuts (F).
- Page 5 Jolt Bedside ASSEMBLY INSTRUCTIONS Drawers (x2) Drawers (x2) Fasten back panel [12] into place using 4x long screws (D) Flip drawer over and attach 2x rail components (I) to both in the holes in the side panels. left and right underside of the drawer using 4x screws (G).
- Page 6 Jolt Bedside ASSEMBLY INSTRUCTIONS Slide all three completed drawers into Ensure all drawers easily slide open and place on the rails in the cabinet unit as shown. closed. mocka.co.nz | mocka.com.au...
- Page 7 Jolt Bedside ASSEMBLY INSTRUCTIONS Wall Strap Strap Washer wall anchor wall screw r/washer screw Attach safety strap (V) to the top of the back side of the unit Move the unit into the desired location up against a wall. Use a drill to using screw (Y) and washer (Z).
