Vigo Desk
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B2
A
B1
25mm
mini
30mm
bolt x4
fix x23
bolt x2
E
F
e3
e4
e1
e2
slide rail
50mm
x2 sets
screw x19

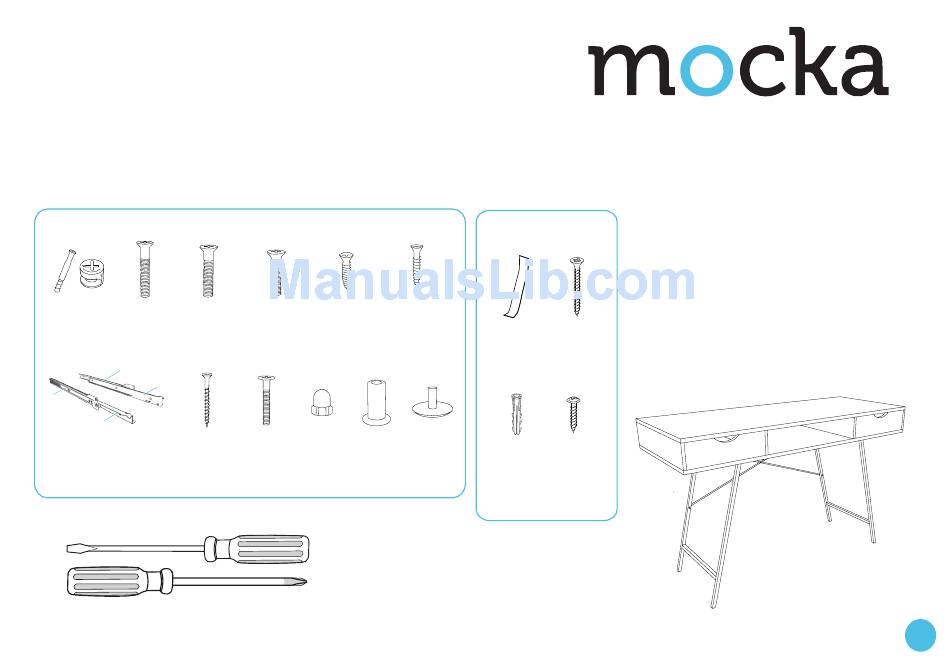

Hardware Supplied
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
B3
C
D
12mm
20mm
25mm
bolt x4
screw x16
screw x2
I
G
H
foot
nut
25mm
capped
x4
pad x4
bolt x1
nut x1
Phillips & Flathead
screwdrivers required
W
X
safety
wall
strap x1
screw x1
J
Y
Z
r/washer
wall
screw
anchor
x1
x1
Wall Strap
WARNING:
Any furniture that is not anchored to a wall
has the potential to tip over in certain circumstances, i.e.
if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please
note that different wall materials may require different
fixing devices from those supplied.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vigo Desk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Vigo Desk

  • Page 1 Vigo Desk Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
  • Page 2 Vigo Desk Assembly Instructions Bring together the legs of the desk and attach the support beam with 2x Arrange the cross bracing rods in the position shown above. In the screws (B1). Tighten with a screwdriver. Attach 4x foot pads (J) to the centre of the cross bracing, attach the two rods together using 1x bolt (G) base of the legs.
  • Page 3 Vigo Desk Assembly Instructions At the back of the frame attach the cross bracing with 4x bolts (B3) and Attach 1x slide rail (E1) to panel [3] using 2x 12mm screws (C). Attach 4x nuts (I). Note: You will find on both bars of the cross bracing, that the 1x slide rail (E3) to panel [4] using 2x 12mm screws (C).
  • Page 4 Vigo Desk Assembly Instructions bolt locking Attach 1x slide rail (E1) to panel [6] using 2x 12mm screws (C). Attach Attach panels [3] and [4] to panel [7] using 4x bolts (A) and 4x locking 1x slide rail (E3) to panel [5] using 2x 12mm screws (C). Tighten with a nuts (A) from mini fix.
  • Page 5 Vigo Desk Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panels [3], [5], [6], [4] and [7] to panel [2] using 15x screws (F). Attach panel [1] to panels [3], [5], [6], [4] and [7] using 15x bolts (A) and Tighten with a screwdriver.
  • Page 6 Vigo Desk Assembly Instructions Drawers x2 Place the desk top onto the desk frame. Using 4x bolts (B2) and 2x Insert 2x bolts (A) from mini fix into front drawer panel (8). screws (D) secure the desk from underneath. mocka.co.nz | mocka.com.au...
  • Page 7 Vigo Desk Assembly Instructions Attach panels [9] and [10] to panel [11] using 2x 50mm screws (F). Slide the drawer base panel [12] into the grooves between panels [9], Tighten with a screwdriver. [10] and [11] and attach the drawer front panel [8] using 2x locking nuts (A) from the mini fix.
  • Page 8 Vigo Desk Assembly Instructions Attach slide rails (E2) and (E4) to the bottom side of each drawer using Insert the drawers and check they are flush with the front of the desk. 4x 12mm screws (C).Tighten with a screwdriver. The drawers should open and close with ease. If they don’t, check the positioning of the slide rails.
  • Page 9: Safety Strap

    Vigo Desk Assembly Instructions Safety Strap Strap wall anchor wall screw Move the unit into the desired location up against a wall. Use a drill to Once assembled lift into place, do not drag. Attach safety strap (W) to the top of the back side of the unit using 1x r/washer screw (Z). Tighten create a small hole lining up with the top of the safety strap (W).
