- Page 1 INSTALLATION MANUAL ST-BTWD600IR40 –B or –W Weatherproof Day/Night Infrared Color Camera v2.0 3/10/11...

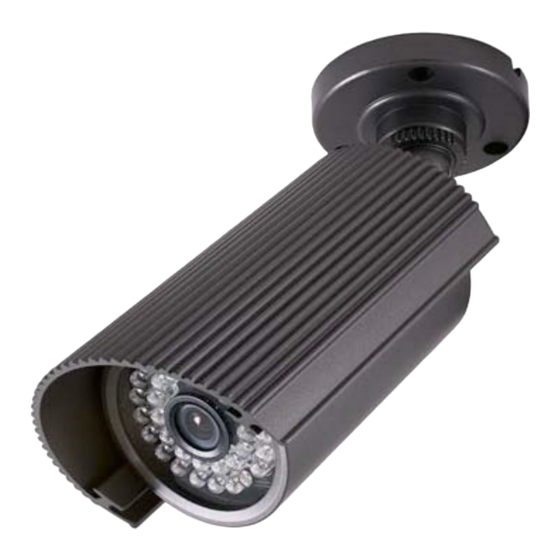

- Page 2 This package contains: One ST-BTWD600IR40-B-W weatherproof day/night infrared color camera One installation manual Note: The ST-BTWD600IR40-B-W requires a minimum 12VDC 600mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BTWD600IR40-B-W is a weatherproof day/night infrared color camera designed around a 1/3”...
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
- Page 5 OSD SETTING MENU 6. TROUBLESHOOTING v2.0 3/10/11...
- Page 6 a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
