User Manual
Thank you for purchasing our product. If there are any
questions, or requests, please do not hesitate to
contact the dealer or technical support.
This manual applies to the Securitytronix HD-TVI Series
cameras.
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the newest version of this manual. We will readily
improve or update the products or procedures
described in the manual.
For additional information, or if you have any issues
with this product, please visit
Or contact technical support @ 347-817-4342

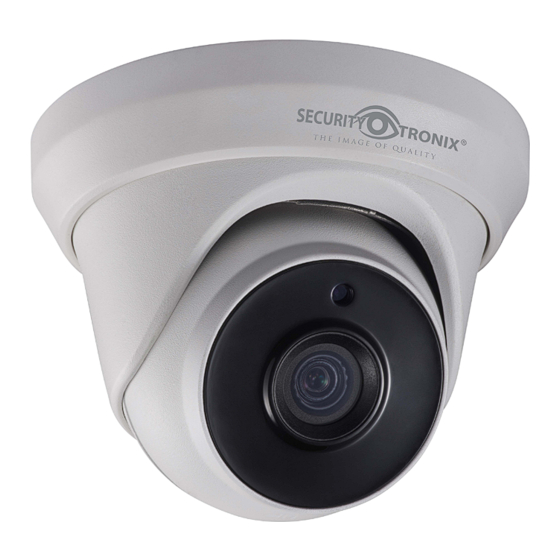

ST-HDC2FTD

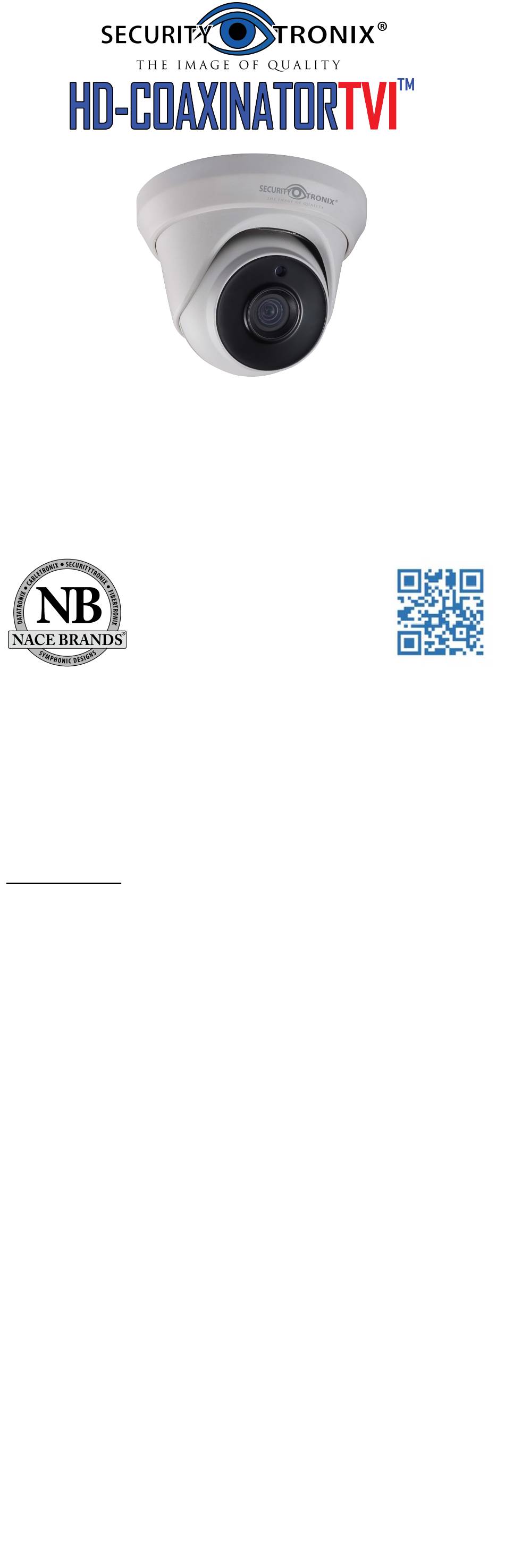

QUICK START GUIDE
www.securitytronix.com
www.securitytronix.com
010000120116

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-COAXINATORTVI ST-HDC2FTD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Security Tronix HD-COAXINATORTVI ST-HDC2FTD

  • Page 1 ST-HDC2FTD QUICK START GUIDE www.nacebrands.com www.securitytronix.com User Manual Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer or technical support. This manual applies to the Securitytronix HD-TVI Series cameras.
  • Page 2: Regulatory Information

    Privacy Notice Surveillance laws vary by jurisdiction. Check all relevant laws in your jurisdiction before using this product for surveillance purposes. Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 1 Introduction 1.1 Product Features This series of HD-TVI camera adopts high performance sensors and advanced circuit board design technology. It features high resolution, low distortion, and low noise, etc. Designed for use in surveillance systems. The main features are as follows: ...
  • Page 4: Installation

    2 Installation Before you start: Please make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power -off during installation. Check the for the installation environment Check whether the power supply is with...
  • Page 5 Figure 2-3 Fix the Mounting Base and Camera 5. Route the cables through the cable hole and connect the video cables and power cord. 6. Secure the camera to the mounting base. Figure 2-4 Fix the Camera to the Ceiling 7.
  • Page 6 screw holes and the cable hole in the ceiling according to the drill template. Figure 2-7 Drill Template 4. Route the cables through the cable hole. 5. Secure the mounting base to the ceiling with the supplied screws. (You can drill the expansion screws first or drill the fixing screws directly) Expansion Screw Fixing Screw...
  • Page 7 Steps: 1. Disassemble the gang box from the gang box cover. 2. Attach the drill template (supplied) to the place where you want to fix the gang box, and then drill the holes in the ceiling according to the template. Figure 2-11 Disassemble the Gang Box 3.
  • Page 8: Menu Description

    3 Menu Description SETUP FORMAT MAIN MENU VIDEO RESET &NIGHT SETTING SAVE CONTRAST &EXIT BRIGHTNESS COLOR SHARPNESS EXPOSURE MODE COLOR GAIN GAIN SMART MIRROR Figure 3-1 Main Menu Overview  With a camera controller (purchased separately) or calling the preset No. 95 of DVR you can select the menu and adjust the parameters.
  • Page 9  BLC (Backlight Compensation) BLC (Backlight Compensation) compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong. When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.
  • Page 10: Video Setting

    You can select to turn on/off the IR LED to respond to different site requirements.  SMART IR The Smart IR function is used to adjust the light to its most suitable intensity, and to prevent the image from over exposure. The SMART IR value can be adjusted from 0 to 3.
