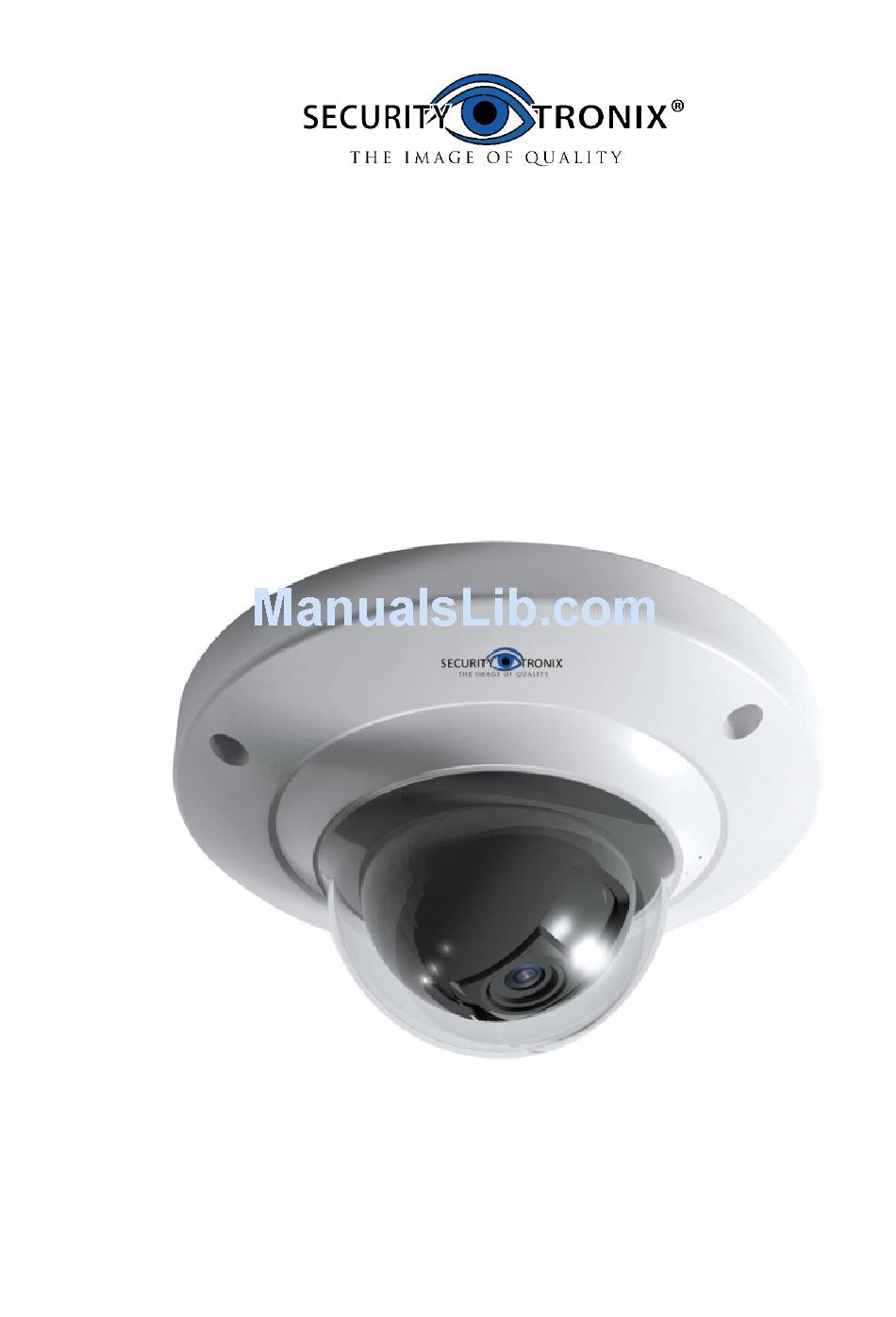

- Page 1 ST-IP-MD36-1 ST-IP-MD36-2 HD Mini Network Dome Camera Quick Start Guide Version 1.0.0...
-
Page 2: Important Safeguards And Warnings
Thank you for purchasing our Network camera. This Quick Start Guide is designed to get your system up and running as easily as possible. This document applies to both the ST-IP-MD36-1 and ST-IP-MD36-2 camera models (1mp & 2mp). Please read the following safeguard and warnings carefully before you use this camera. - Page 3 3. Operation and Daily Maintenance Please do not dismantle the device; Doing so may void your warranty. It is recommended to use this camera with a surge-protection device. The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.
- Page 4 The company is not liable for any loss caused by operation which is inconsistent with the instructions in the manual. Note: Please refer to the disk for more details. Check and download corresponding user’s manuals and tools from the SecurityTronix website: http://www.securitytronix.com/support/ Before installation, please open the package and ensure all the components are included.
-
Page 5: Table Of Contents
Table of Contents Framework......................... 5 Structure ......................5 Dimensions ......................6 Installation ......................... 8 Device Installation ....................8 Micro SD Card Installation ................9 Network Configuration ....................11 Modify IP Address .................... 11 Login WEB Interface ..................12... -
Page 6: Framework
1 Physical Properties 1.1 Structure Note: The following diagram is for reference only, to illustrate the device component and cable port functions. Device component and cable port function may differ according to different models, please refer to the actual device for details. Figure 1-1 Please refer to the following sheet for detailed structure information. -
Page 7: Dimensions
Network data input, output and PoE. Network port Note: Some devices do not support PoE. MIC hole Audio input Dimensions Please refer to the following figure for the dimension information. Dimensions are listed in millimeters. See Figure 1-1 through Figure 1-3. Figure 1-1 Dimension illustration 1 Figure 1-2 Dimension illustration 2... - Page 8 Figure 1-3 Dimension illustration 3...
-
Page 9: Installation
2 Installation 2.1 Device Installation Remove this for surface-cable use Figure 2-1 Device installation illustration 1 Important Please make sure the installation surface can support at least 3 times the weight of the camera and the bracket. Please refer to the steps listed below. Step1 Use the inner hexagonal wrench (provided) to loosen the three inner hexagon screws in the outer dome cover and then remove the cover. -
Page 10: Micro Sd Card Installation
Step 4 Adjust the base of the camera to the proper position and then pull the cable through the cable exit hole drilled earlier in the ceiling or wall. Line up the TOP direction of the device to the installation template and then line up the three screw holes in the camera’s base to the three plastic anchors in the mounting surface. - Page 11 Step 3 Please complete the operation by referring to step 6 in chapter 2.1 device installation. Figure 2-3...
-
Page 12: Network Configuration
3 Network Configuration The IP address of each camera is the same when leaving the SecurityTronix factory (default IP192.168.1.108). For the smoothest project installation, please allocate a useable IP segment of the entire network according to the actual network environment. 3.1 Modify IP Address IP address can be acquired and modified through the quick configuration tool for the cameras which is accessed via a wired network;... -
Page 13: Login Web Interface
Figure 3-1 Step 3 Modify the camera IP address on the “Net” interface, click “Save” to finish modification. See Figure 3-2 for more details. Figure 3-2 3.2 Login WEB Interface Note: Different devices may have different WEB interfaces, the figures below are just for reference, please refer to the document <<WEB Operation Manual>>... - Page 14 Figure 3-3 Step 3 Install controls according to the system prompt; see Figure 3-4 for the WEB main interface. Please modify the administrator password as soon as possible after you successfully logged in. Figure 3-4...
- Page 15 Note • This quick start guide is for reference only. Slight difference may be found in the user interface. • All the designs and software here are subject to change without prior written notice. • Please visit our website or contact your local service engineer for more information.
