Enabling IEC
60870-5-104
Communication
Protocol in the
Communications
Gateway

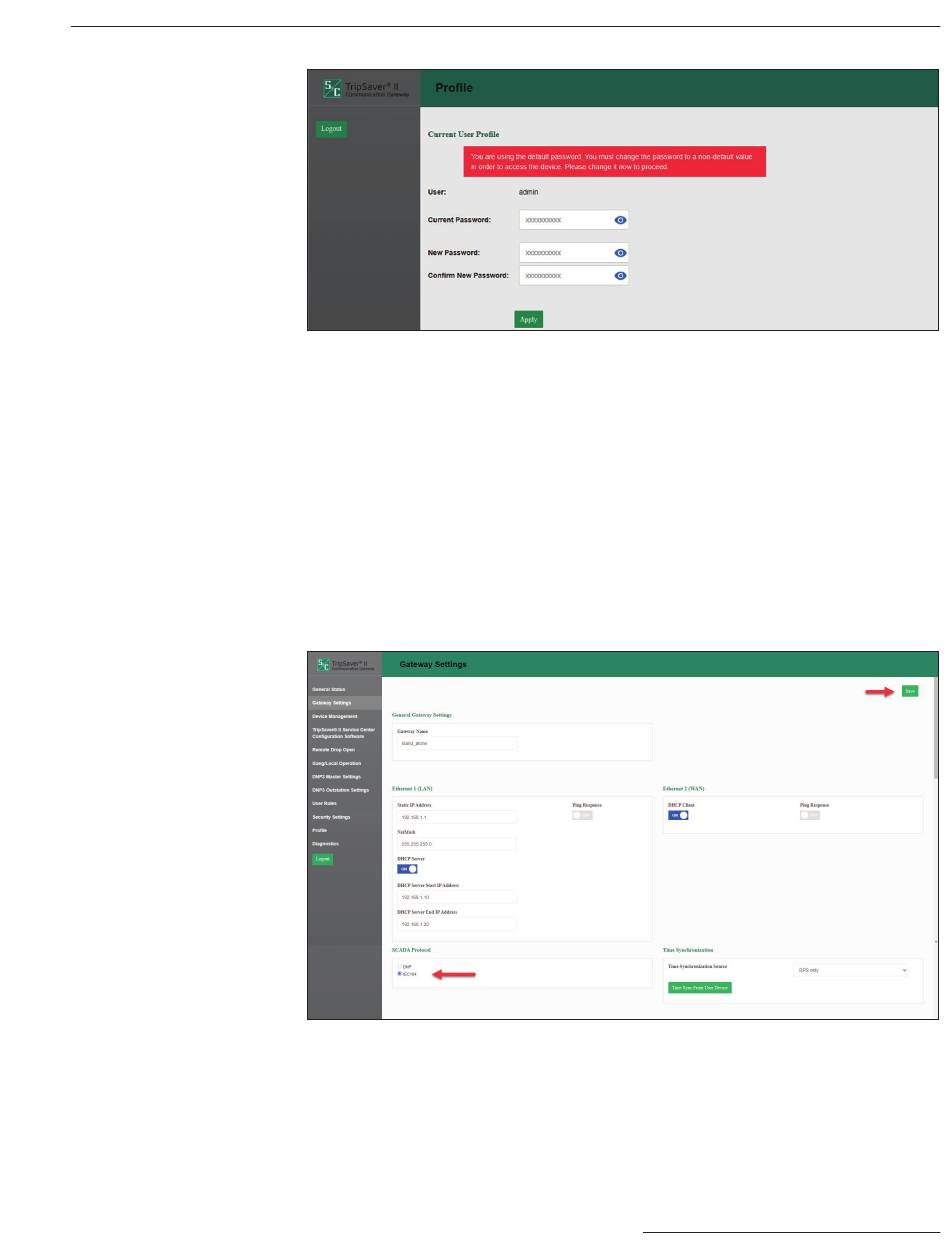

Figure 12. The Profile screen for changing the default password.
After a successful login, the browser will open to the communications gateway
General Status screen with an application Navigation menu on the left side of the screen.
The Navigation menu will remain visible for all subordinate menu interface screens.
See Figure 14 on page 20.
The communications gateway is shipped configured to use the DNP3 communication
protocol by default. Before starting to configure the communications gateway, S&C
recommends first switching to the IEC 60870-5-104 or "IEC104" protocol. To switch to
the IEC104 protocol:
STEP 1.
Select "Gateway Settings" from the Navigation menu.
STEP 2.
Scroll down to the SCADA Protocol panel. Click on the IEC104 radio button.
See Figure 13.
STEP 3.
Scroll up to the top of the screen and click the Save button.
Figure 13. The IEC104 Protocol panel and Save button.
Configuring the Communications Gateway
S&C Instruction Sheet 461-519 19
