Mounting, Powering, and Securing the Communications Gateway
Follow these steps to power up the communications gateway:
Remove the red protection cap attached to the power-connection terminal at
STEP 1.
the bottom of the communications gateway.
STEP 2. Open the box.
STEP 3. Run the ac power cable down the pole. The unterminated end of the cable
should be connected to the overhead transformer.

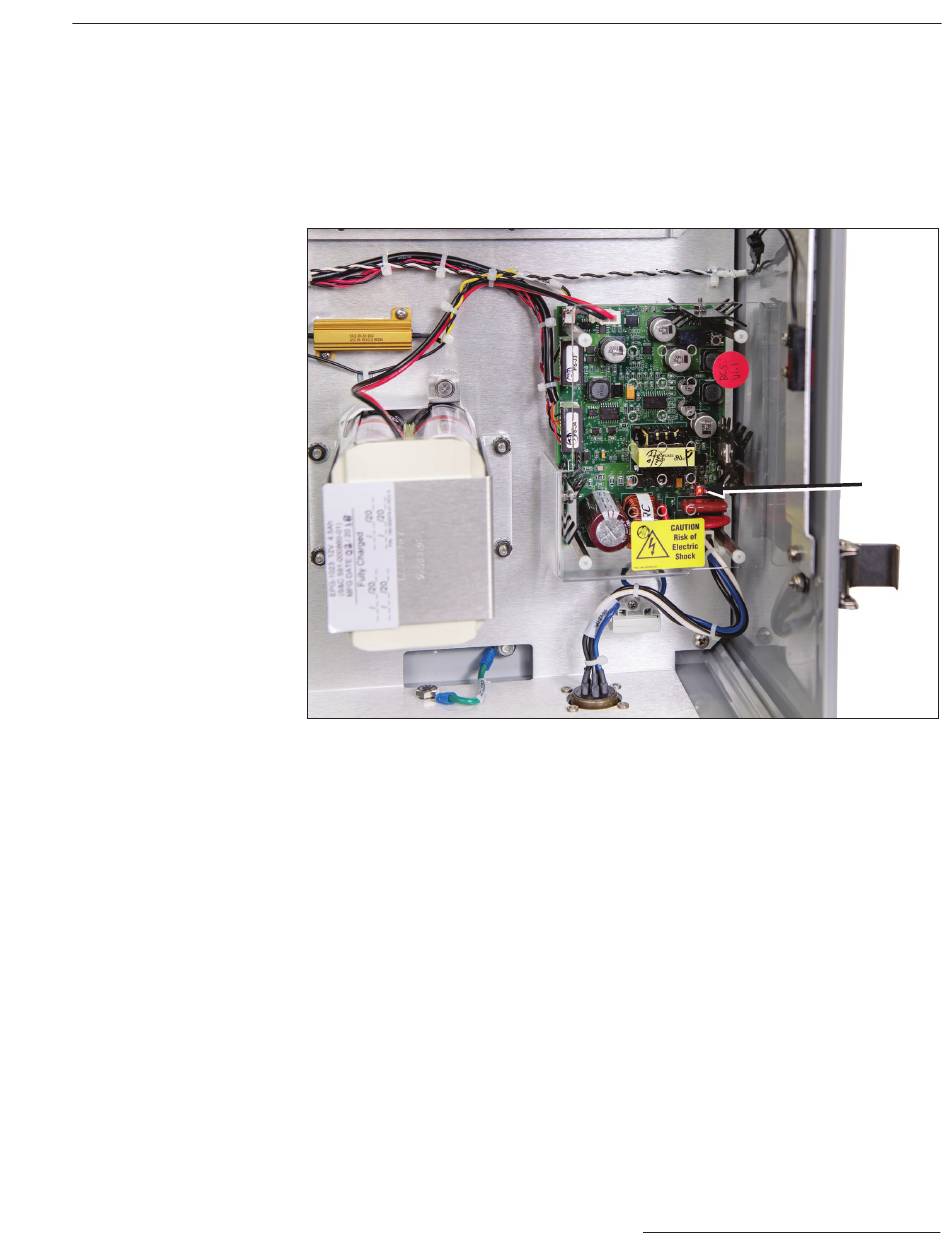

Figure 3. The communications gateway control PS/Battery Board.
STEP 4. Align the fi ve-pin connector at the terminated end with the notch of the power
connection terminal, make the connection, and tighten the ring. See Figure 2
on page 8.
STEP 5. After a short delay, LEDs on the PS/Battery board and the gateway controller
should light up, indicating the communications gateway is receiving power. See
Figure 1 on page 7 and Figure 3.
To secure the communications gateway, close the door and use the door latches to secure
the enclosure. See Figure 2 on page 8. The door latches accept locks with a maximum
shackle diameter of ⅜ -inches (9.5 mm).
● A user-supplied disconnect switch may be required for your installation between the ac input and the
PS/ Battery board . Contact your nearest S&C Sales Office for details . See the power system diagram
(Figure 71) on page 66 .
LED light
on PS/
Battery
Board
S&C Instruction Sheet 461-519 9
