DEMO MANUAL DC2686A

TEST RESULTS

+
−

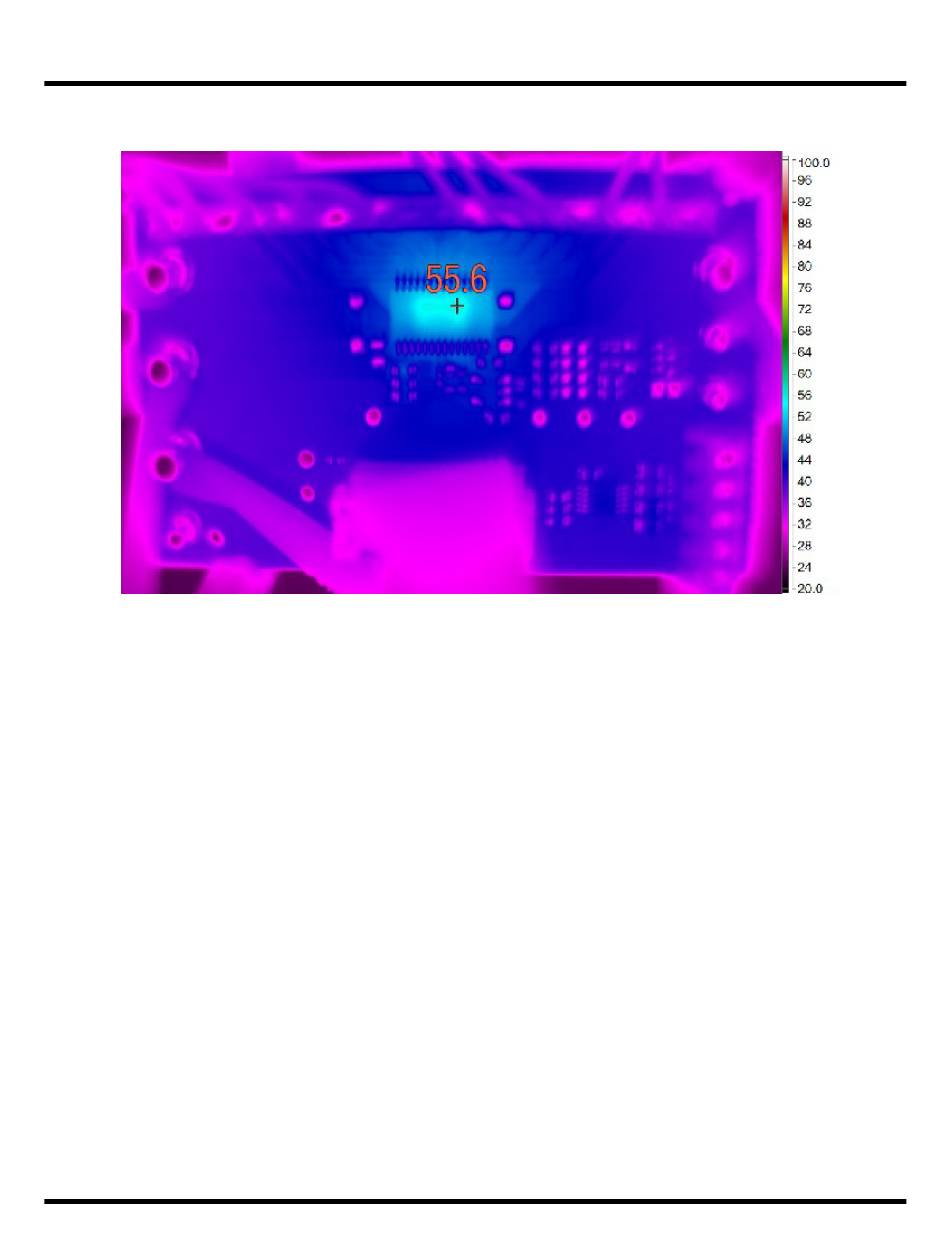

Figure 5. Thermal Capture of DC2686A at 50V
, 8 Channels Shorted Through IC at 1.3A. LED
= 1.2V, LED
= 0V
IN
Rev. 0
7
